Removal Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

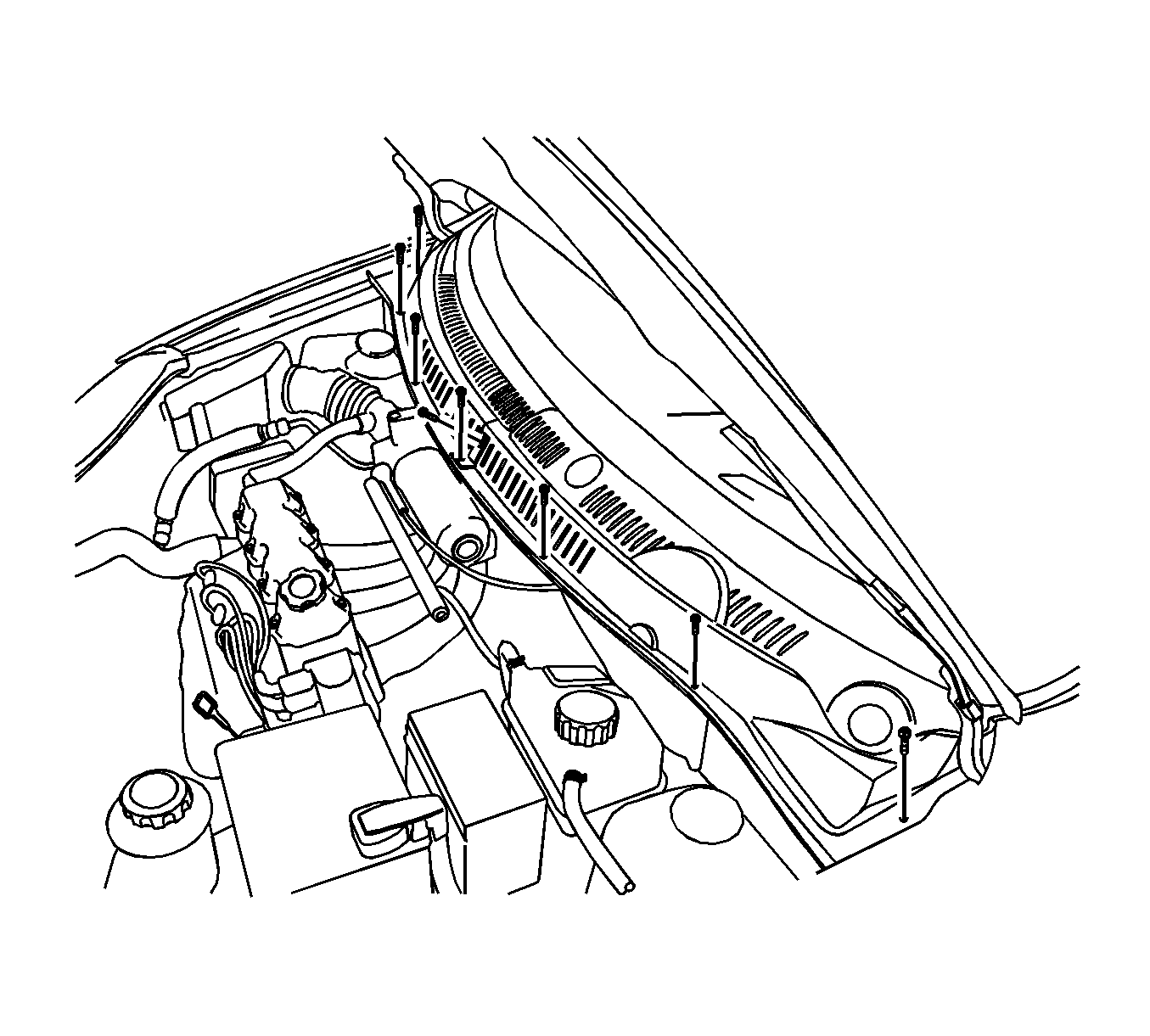

    Fig 1: Air Inlet Grille Screws And 2-Piece Grille
    GM1719826Courtesy of GENERAL MOTORS CORP.
  1. Raise the hood and support it with the hood prop.
  2. Remove the nuts and the wiper arms. Refer to Windshield Wiper Arm Replacement .
  3. Remove the air inlet grille screws and the 2-piece grille.
