Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

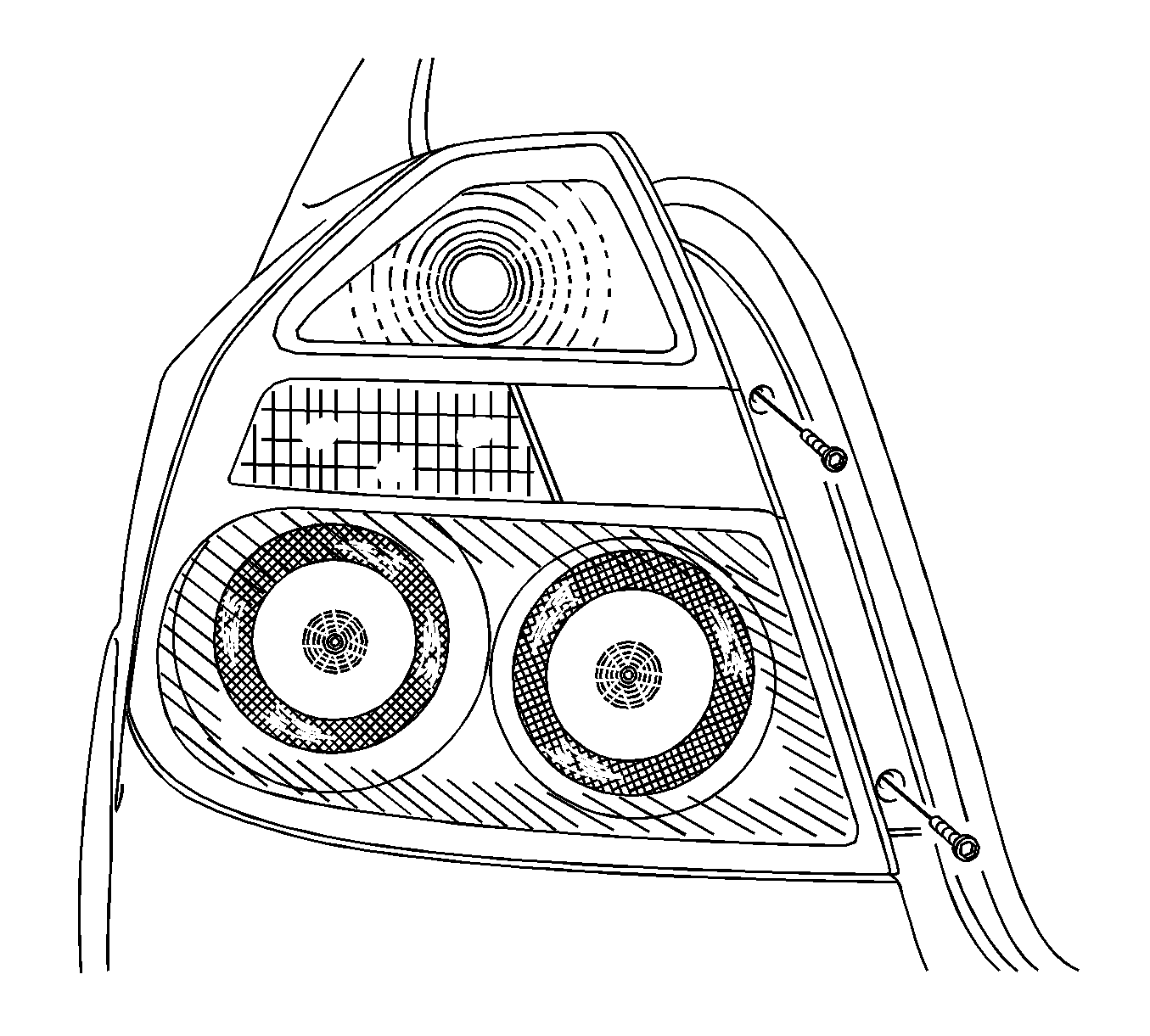

    Fig 1: Tail Lamp
    GM1723026Courtesy of GENERAL MOTORS CORP.
  1. Install the bulb(s).
    2. NOTE: Refer to Fastener Notice .
  2. Install the lamp assembly with the screws.

    Tighten:  Tighten the tail lamp assembly nuts to 3 N.m (27 lb in).
