Removal Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

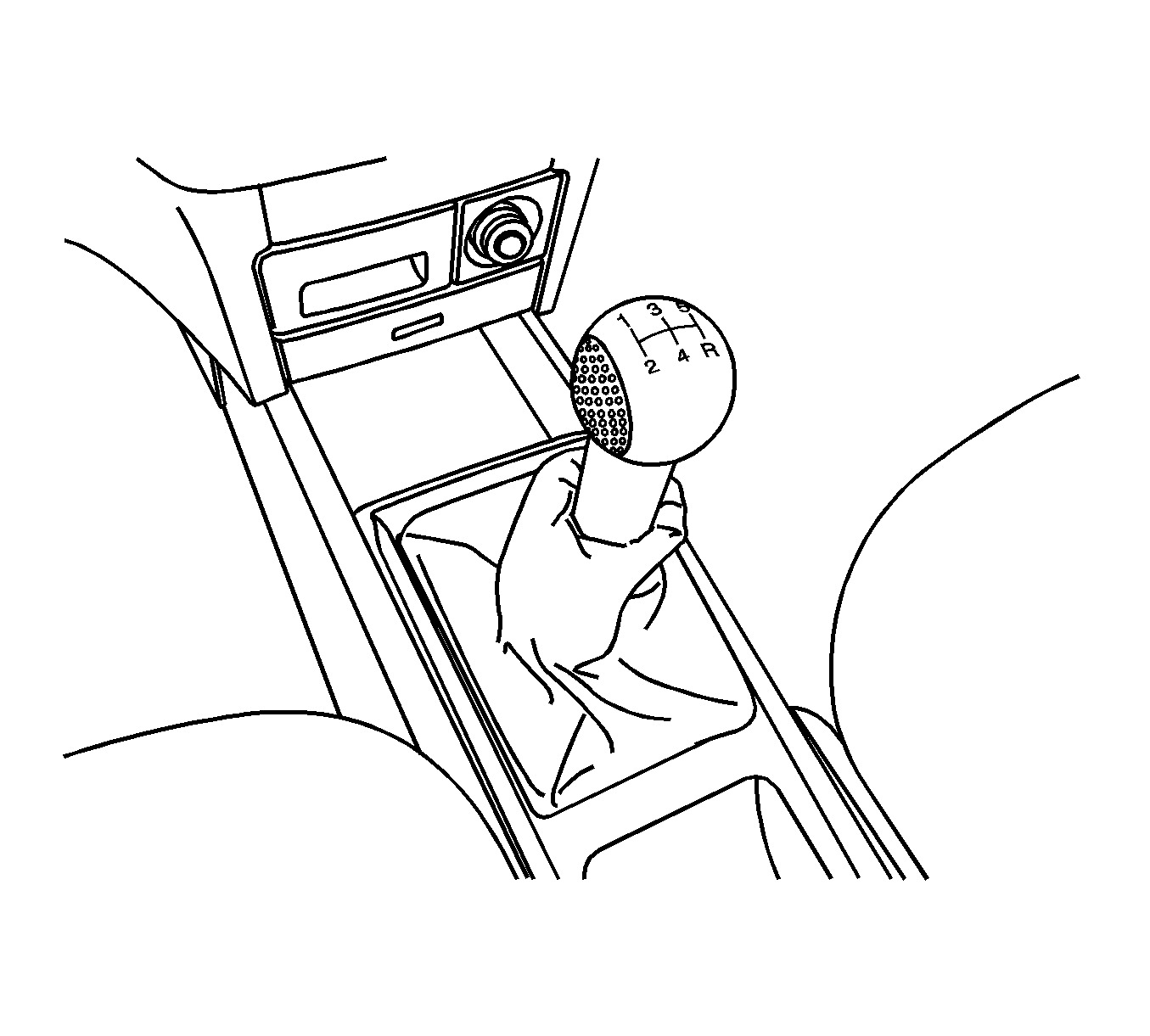

    Fig 1: Gearshift Lever Boot
    GM1721750Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution .
  1. Disconnect the negative battery cable.
  2. Remove the gearshift lever boot, if equipped.

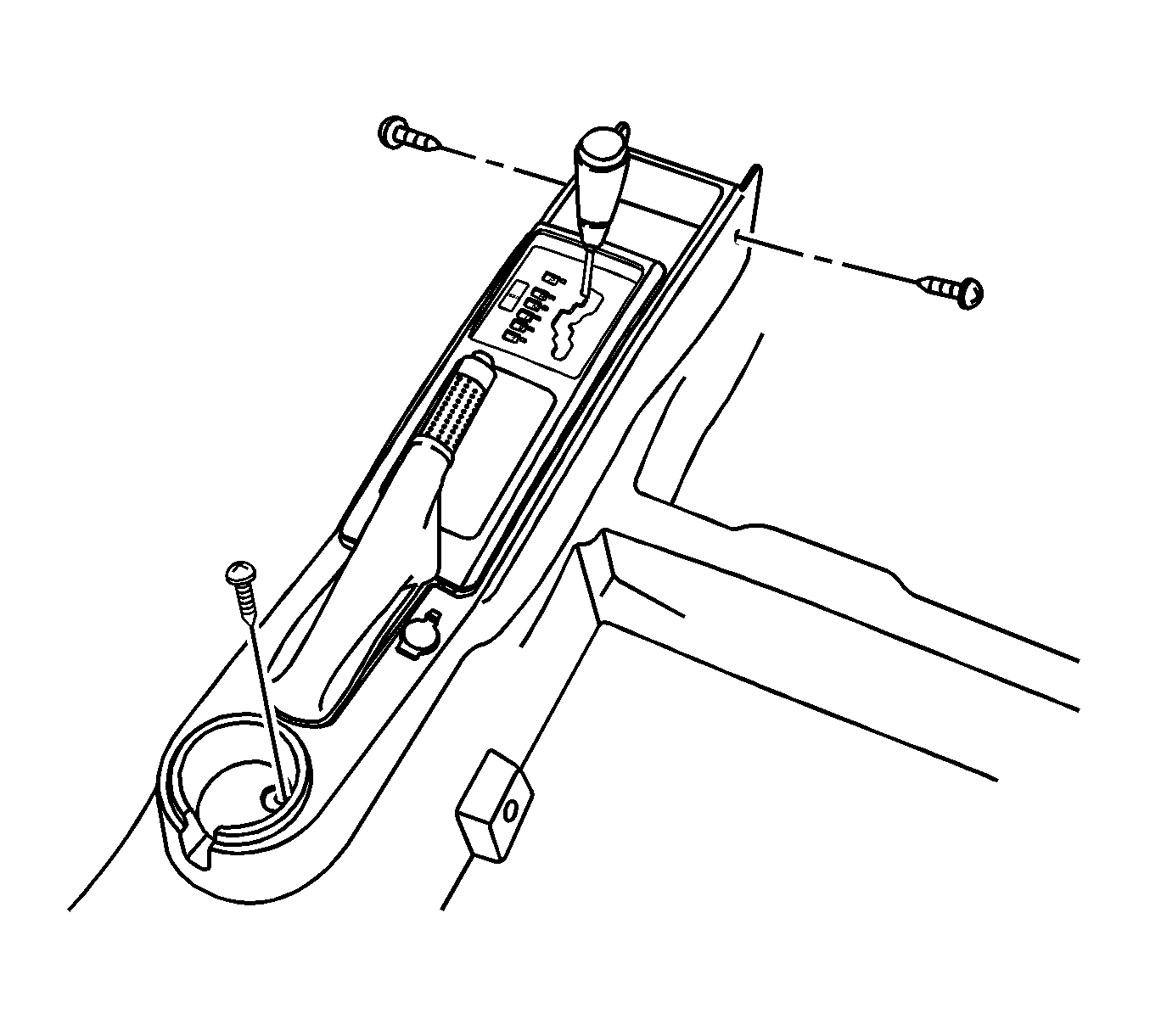

    3. Fig 2: Floor Console Screws
    GM1721757Courtesy of GENERAL MOTORS CORP.
  3. Remove the screws from the floor console.
  4. Remove the floor console cover.
  5. Remove the parking brake cover.
  6. Disconnect the electrical connector.
  7. Remove the floor console.
