Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

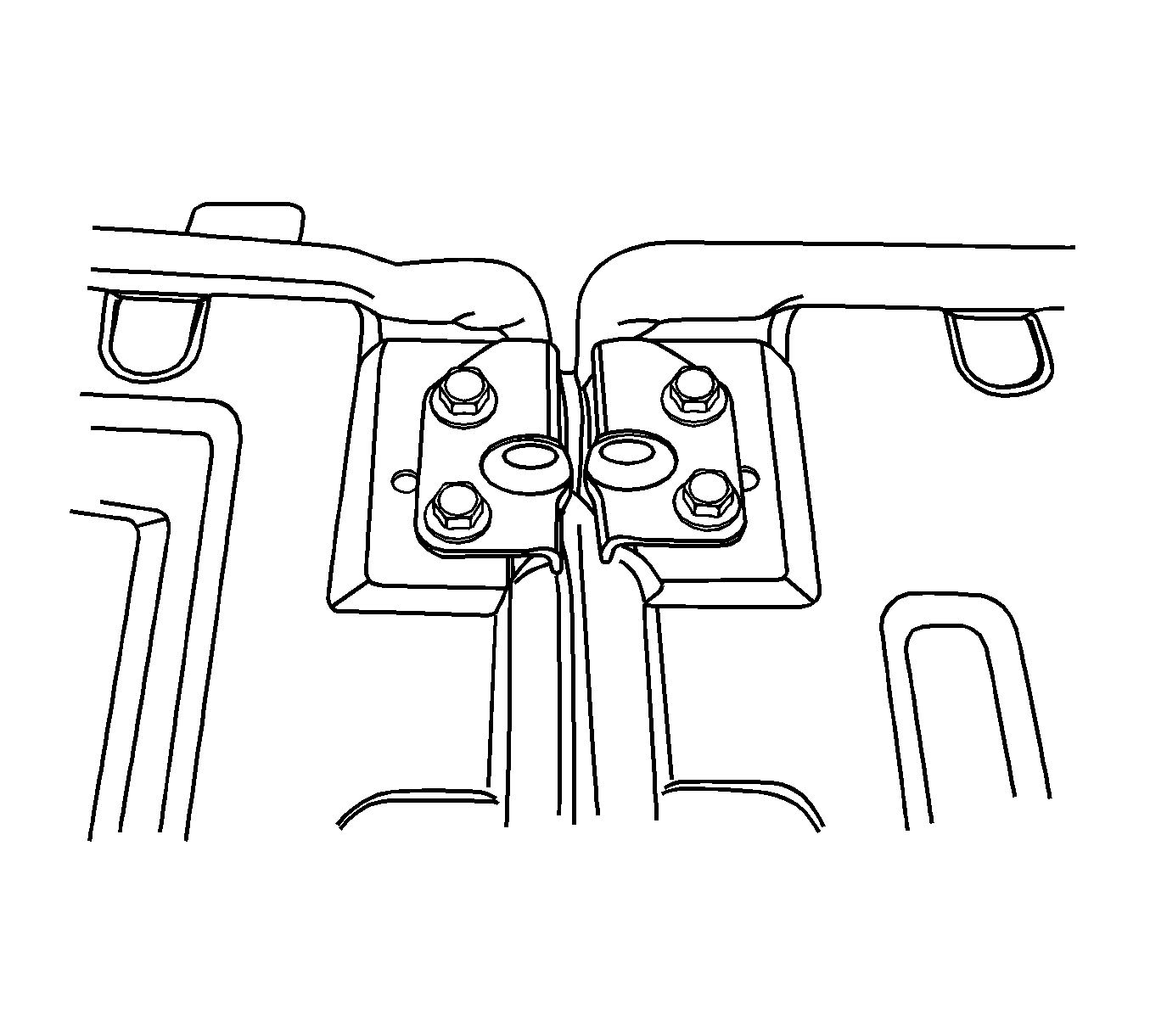

    Fig 1: Rear Seat Back Hinge
    GM1735229Courtesy of GENERAL MOTORS CORP.
  1. Install the rear seatback by inserting the seat hinge posts into the front wheelhouse trim.
    2. NOTE: Refer to Fastener Notice .
  2. Install the seat backs to the hinges with the bolts.

    Tighten:  Tighten the seatback bolts to 25 N.m (18 lb ft).

  3. Raise the rear seat backs in the upright position.
