Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

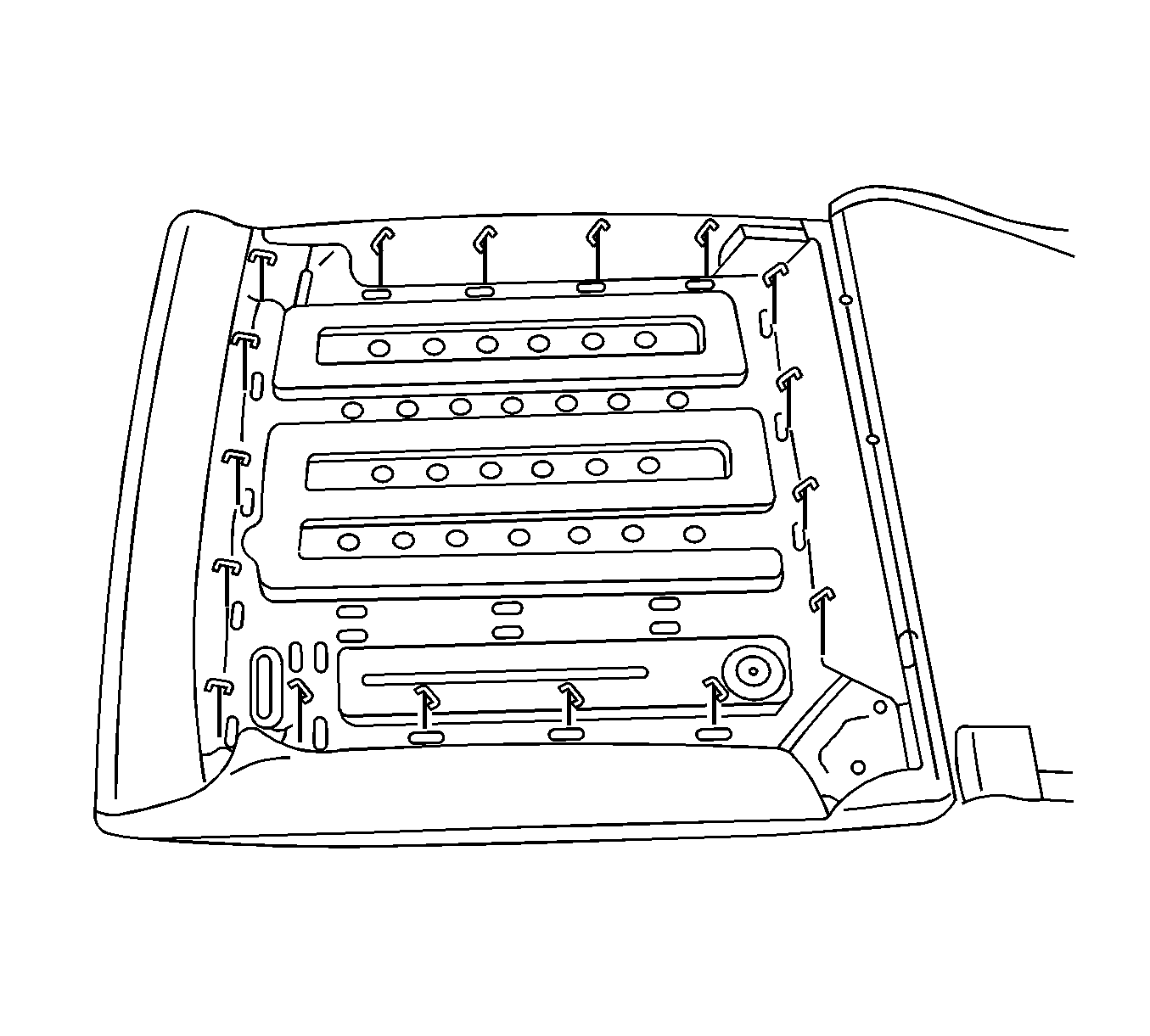

    Fig 1: Hog Rings/Retaining Clips
    GM1735249Courtesy of GENERAL MOTORS CORP.
  1. Install the seat cover onto the seat back and/or the seat cushion with the retaining clips or the new hog rings.
  2. Install the seat back and/or the seat cushion. Refer to Front Seat Back Replacement (Lever Type)  or Front Seat Back Replacement (Dial Type) , Front Seat Cushion Replacement , Rear Split Folding Seat Back Replacement  and/or Rear Seat Back Replacement .
