Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

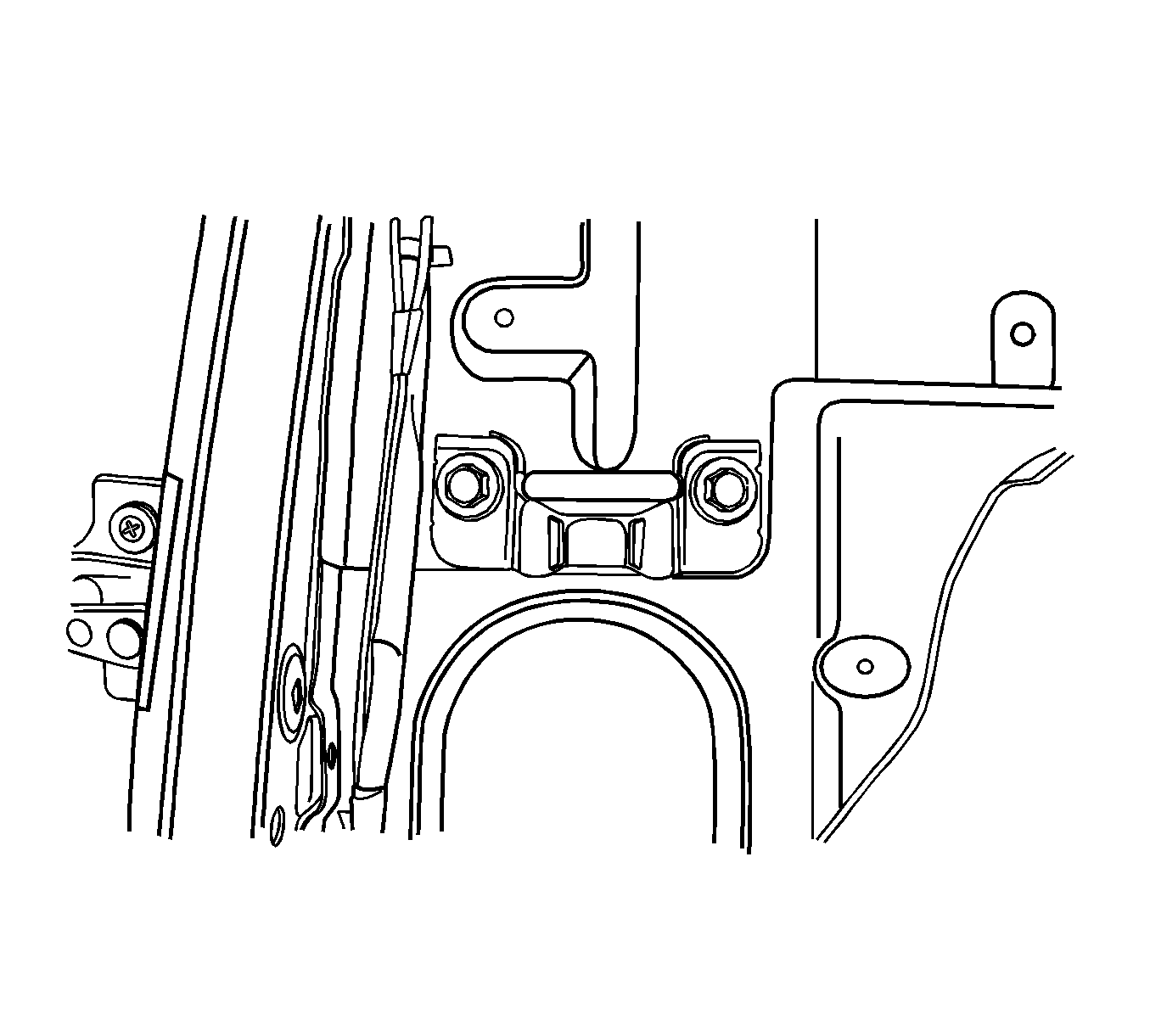

    Fig 1: Rear Seat Back Cushion Latch Striker
    GM1735242Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the rear seat back cushion latch striker with the bolts.

    Tighten:  Tighten the rear seat back cushion latch striker bolts to 24 N.m (18 lb ft).

  2. Install the wheelhouse brace trim.
  3. Install the front wheelhouse trim.
    4. Fig 2: Rear Rocker Panel Cover
    GM1735239Courtesy of GENERAL MOTORS CORP.
  4. Install the rear rocker panel cover.
  5. Install the rear seat back. Refer to Rear Split Folding Seat Back Replacement .
  6. Install the rear seat cushion. Refer to Rear Seat Cushion Replacement .
