Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

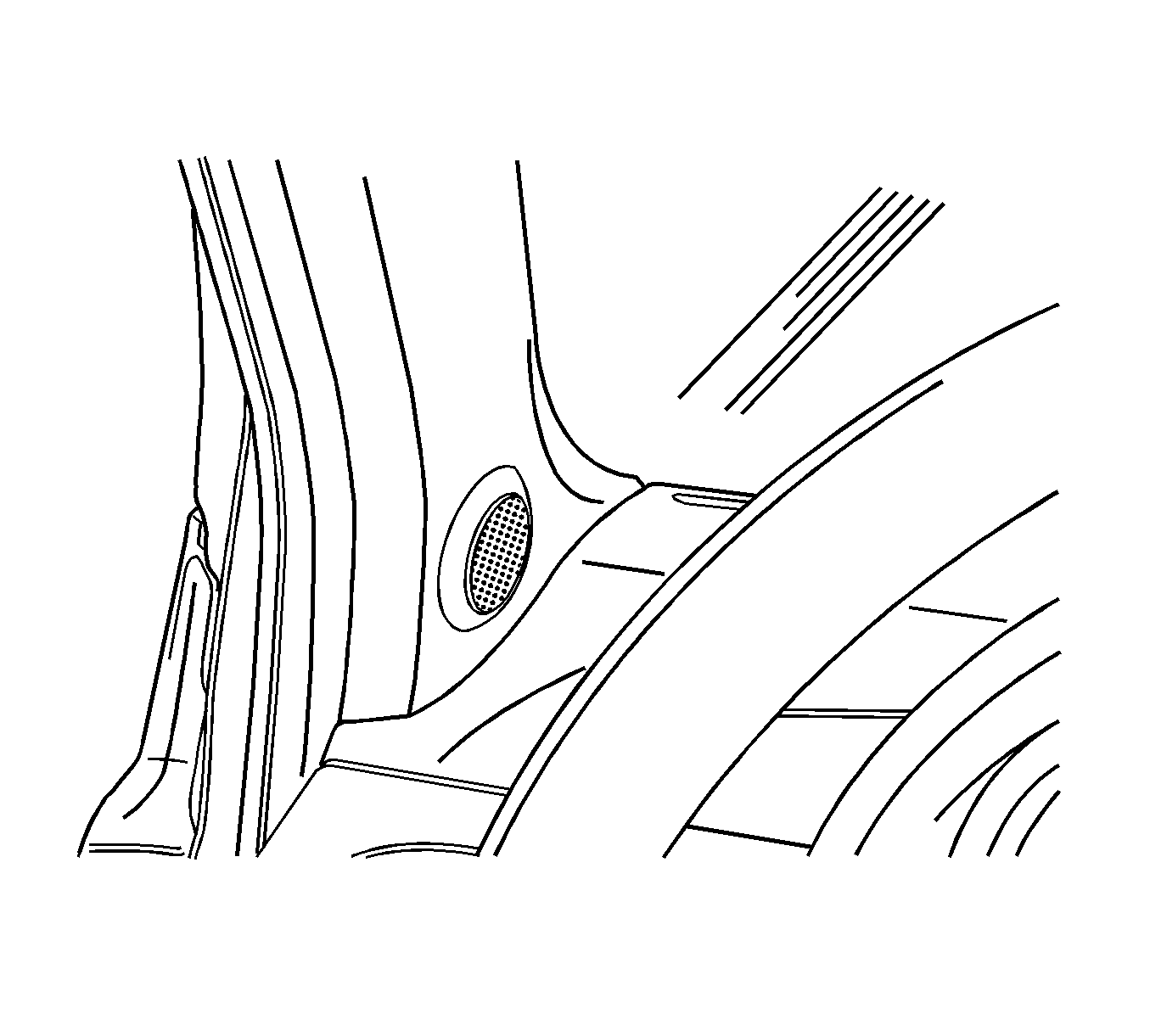

    Fig 1: View of Windshield Pillar Trim Panel
    GM1248491Courtesy of GENERAL MOTORS CORP.
  1. Install the tweeter to the windshield garnish molding, if removed.
  2. Connect the electrical connector.
  3. Install the windshield pillar garnish molding.
