Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the necessary electrical connectors, if equipped.
    2. Fig 1: Front Side Door Trim Panel
    GM1721765Courtesy of GENERAL MOTORS CORP.
  2. Install the trim panel.
  3. Install the inside door handle bezel.

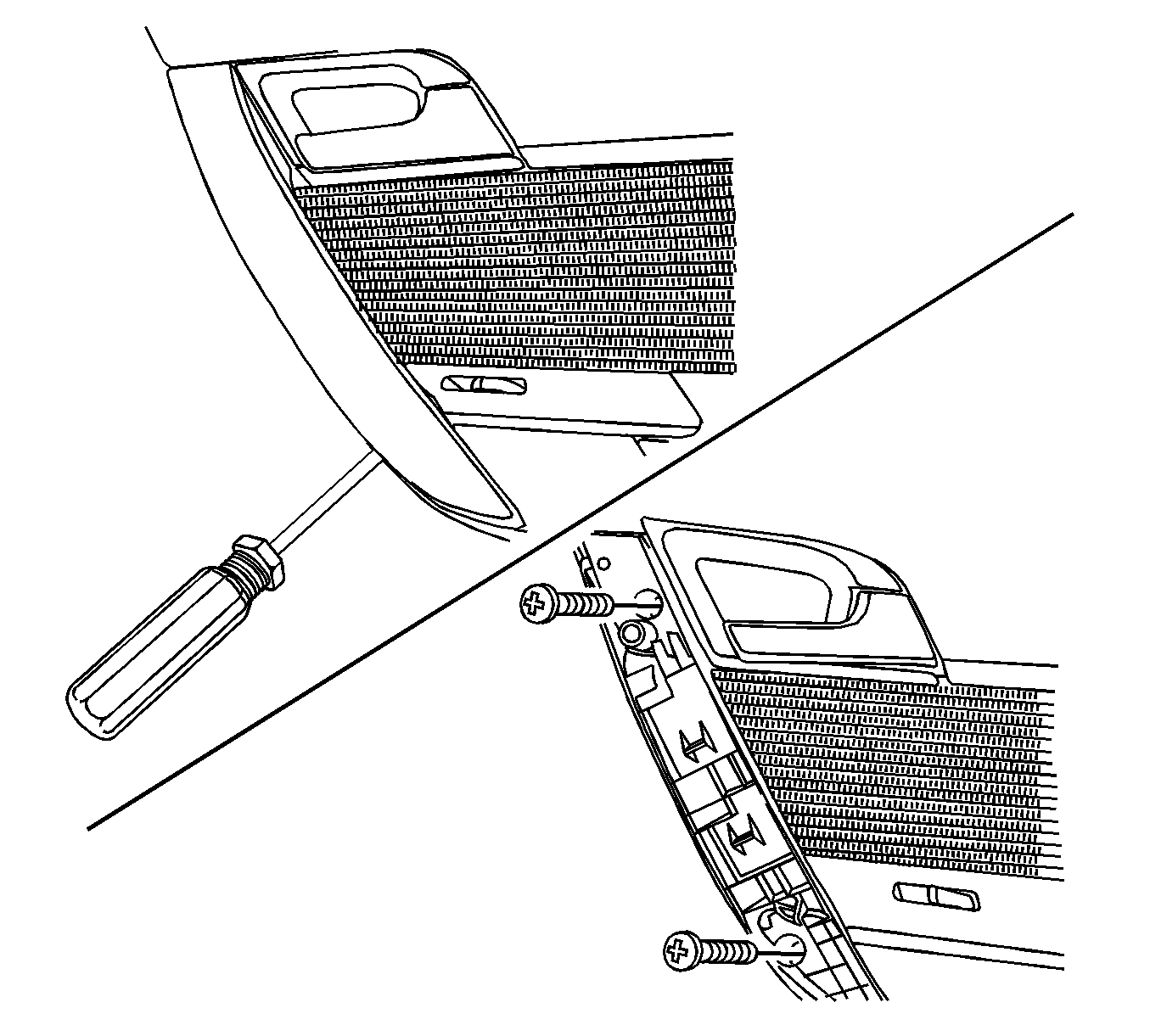

    4. Fig 2: Channel Molding
    GM1720604Courtesy of GENERAL MOTORS CORP.
  4. Install the door pull screw.
  5. Install the door pull trim cover.
  6. Install the window regulator handle, if equipped.
  7. Raise the window.
