Removal Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

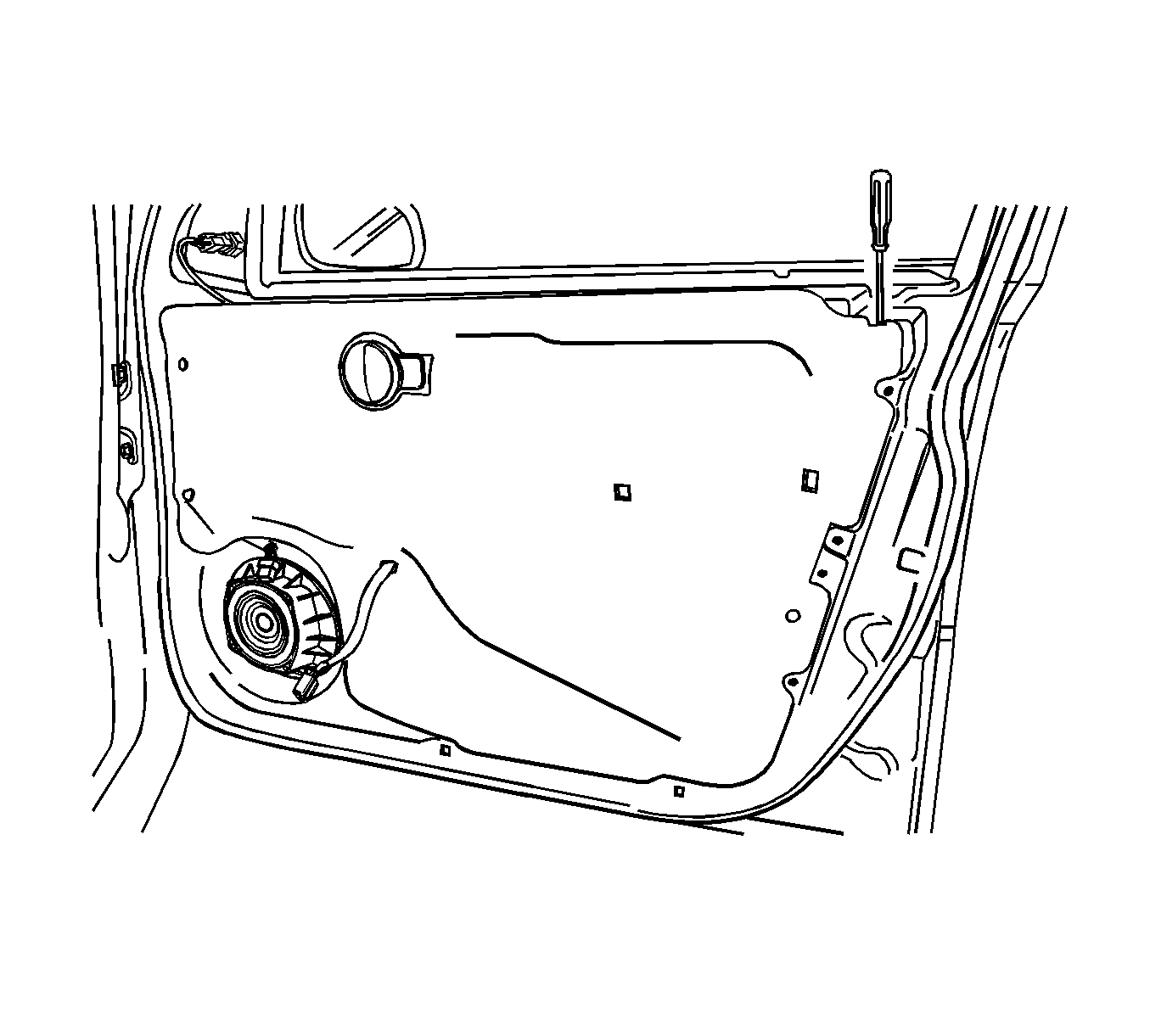

    Fig 1: View of Door Trim Panel, Screws, and Door Pull Bracket
    GM1248295Courtesy of GENERAL MOTORS CORP.
  1. Remove the door trim panel. Refer to Front Side Door Trim Panel Replacement (Notchback)  or Front Side Door Trim Panel Replacement (Hatchback) .
  2. Remove the screws and the door pull bracket.
  3. Remove the door seal trim.
