Removal Procedure

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View of Door Pull Screw
    GM1248473Courtesy of GENERAL MOTORS CORP.
  1. Lower the front window.
  2. Remove the door pull screw.
  3. Remove the inside door handle.
  4. Remove the screws at the base of the trim panel.

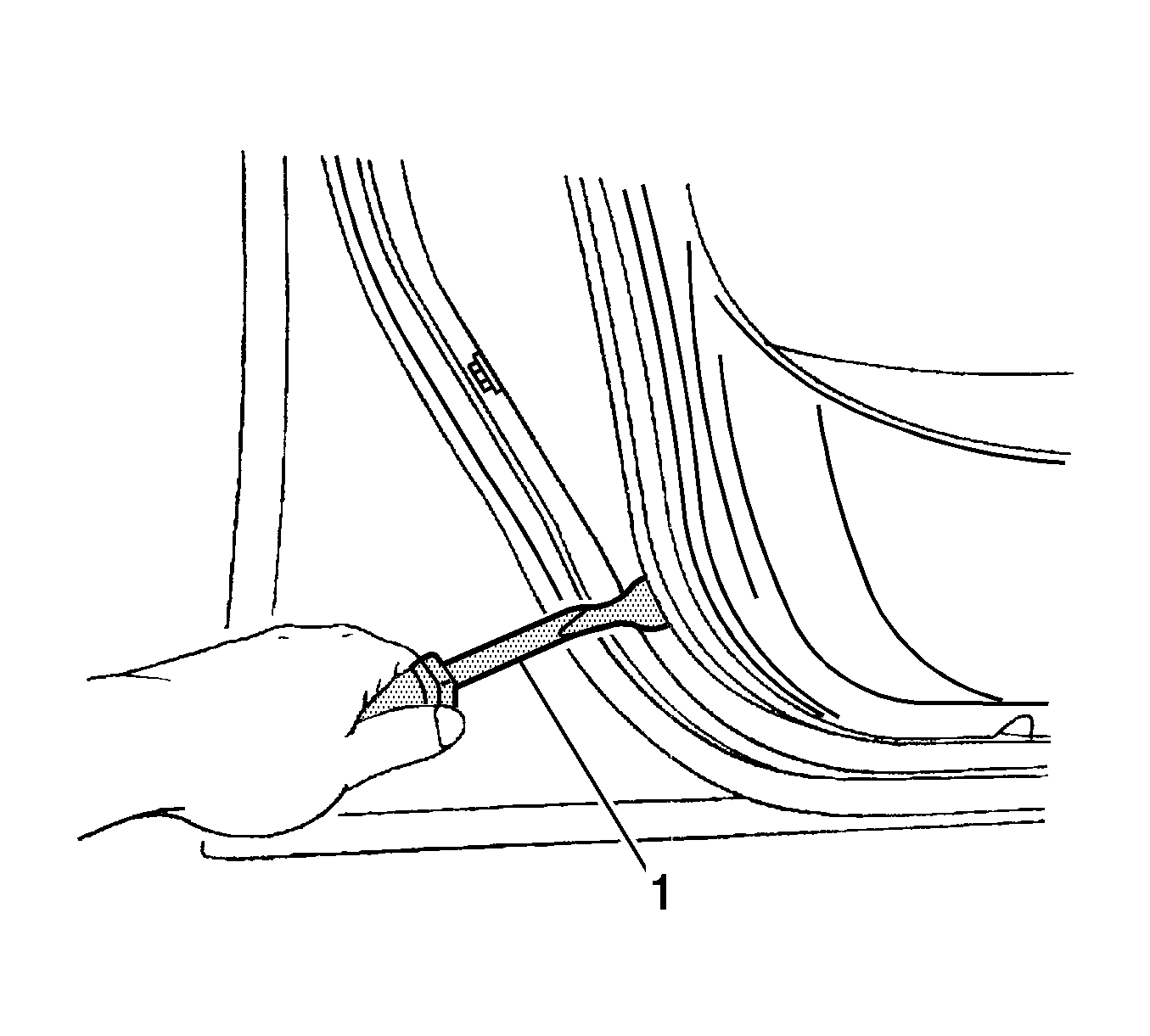

    5. Fig 2: Prying Off Trim Panel with J 2114-B
    GM1248474Courtesy of GENERAL MOTORS CORP.
  5. Pry off the trim panel using the trim remover J 21104-B  (1). See Special Tools and Equipment  .
