Removal Procedure

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

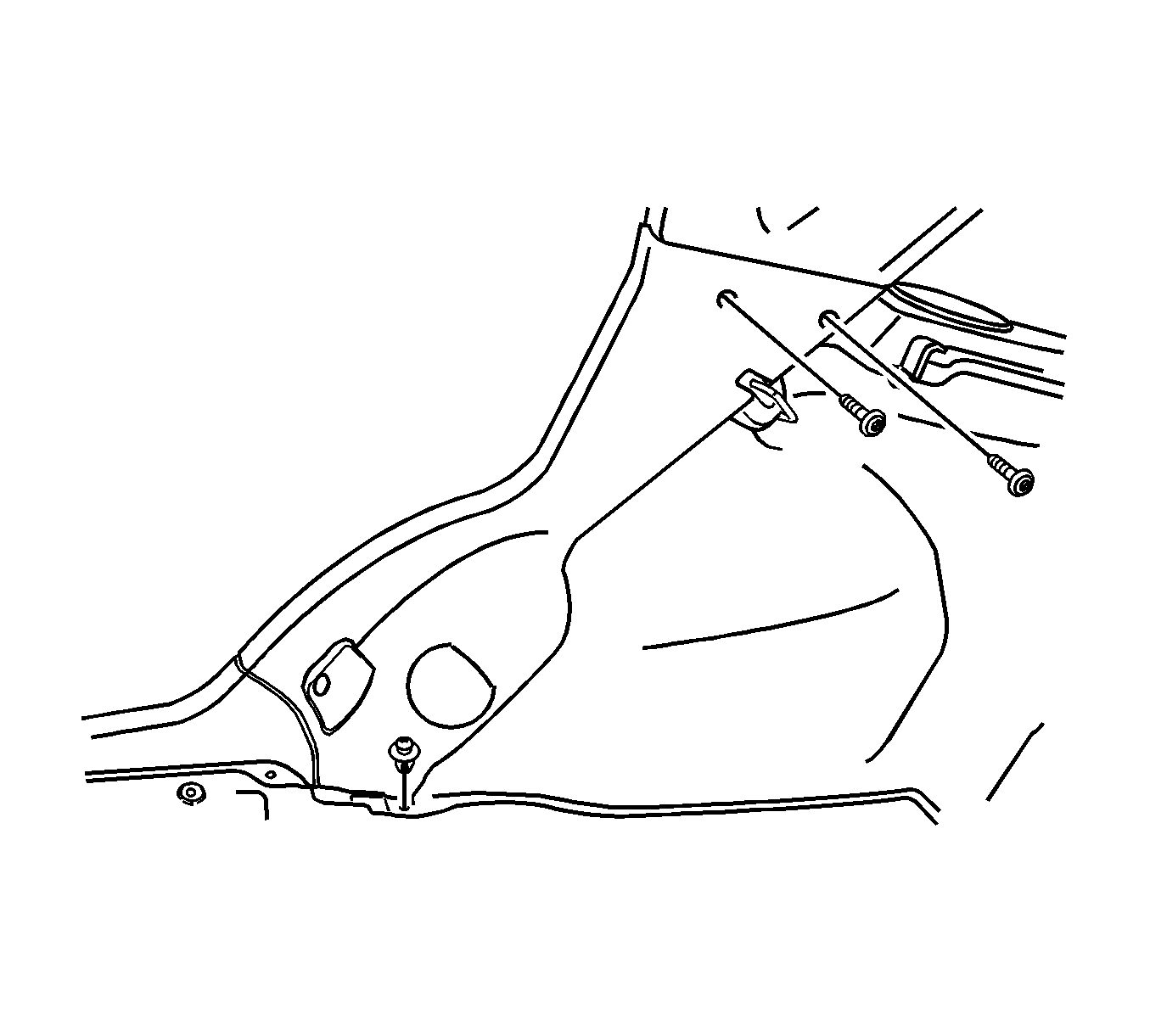

    Fig 1: View of Screw and Rear Rocker Trim Panel
    GM1248486Courtesy of GENERAL MOTORS CORP.
  1. Remove the rear seat cushion and the rear seatback.

    Refer to Seat Cushion Replacement - Rear .

  2. Remove the screw securing the rear rocker trim panel.
  3. Pry off the rear rocker trim panel.
