Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

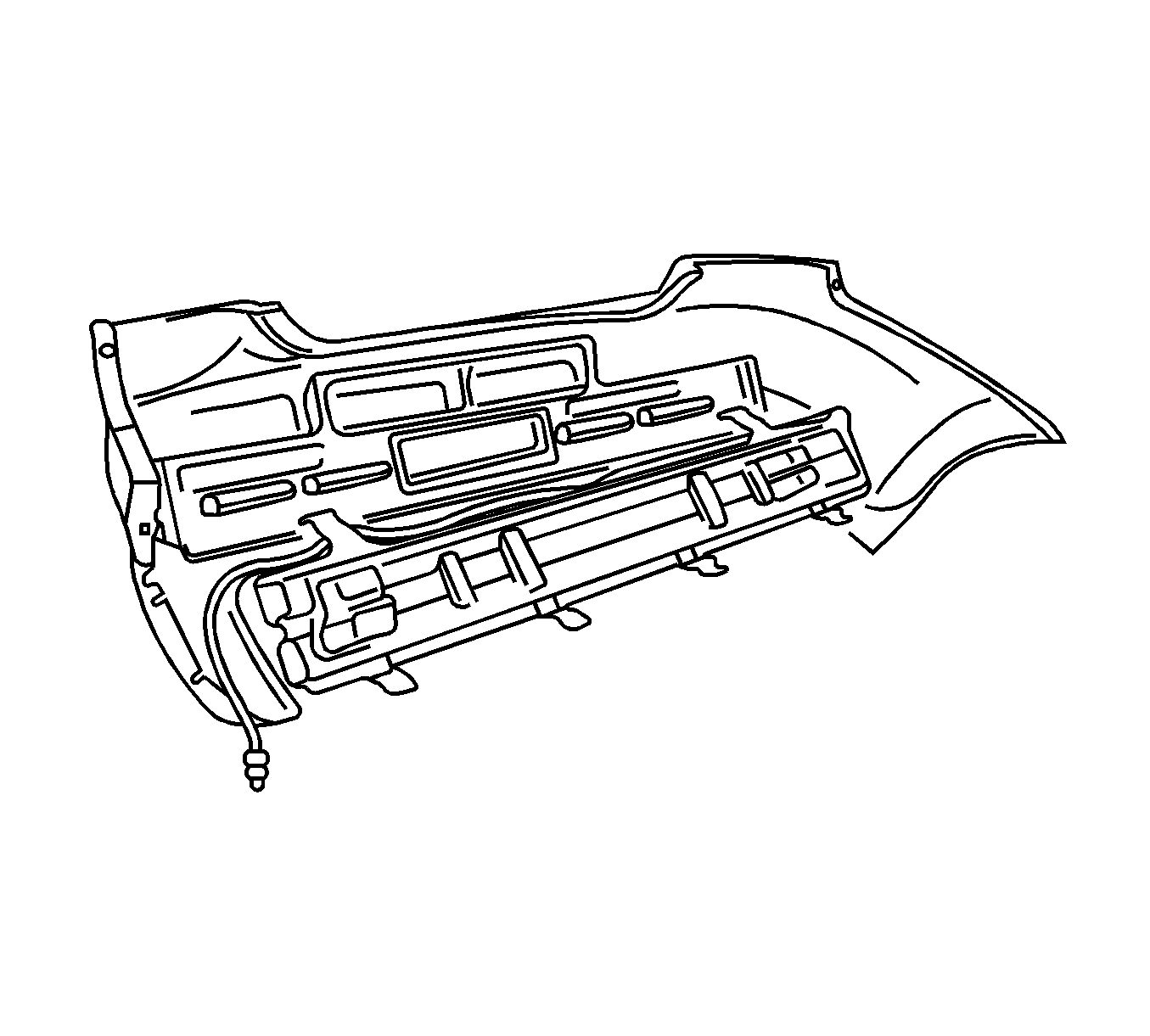

    Fig 1: View of Rear Bumper Impact Beam
    GM1376153Courtesy of GENERAL MOTORS CORP.
  1. Install the rear bumper impact beam.
  2. Install the rear bumper fascia.

    Refer to Rear Bumper Fascia Replacement (Notchback)  or Rear Bumper Fascia Replacement (Hatchback) .
