Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

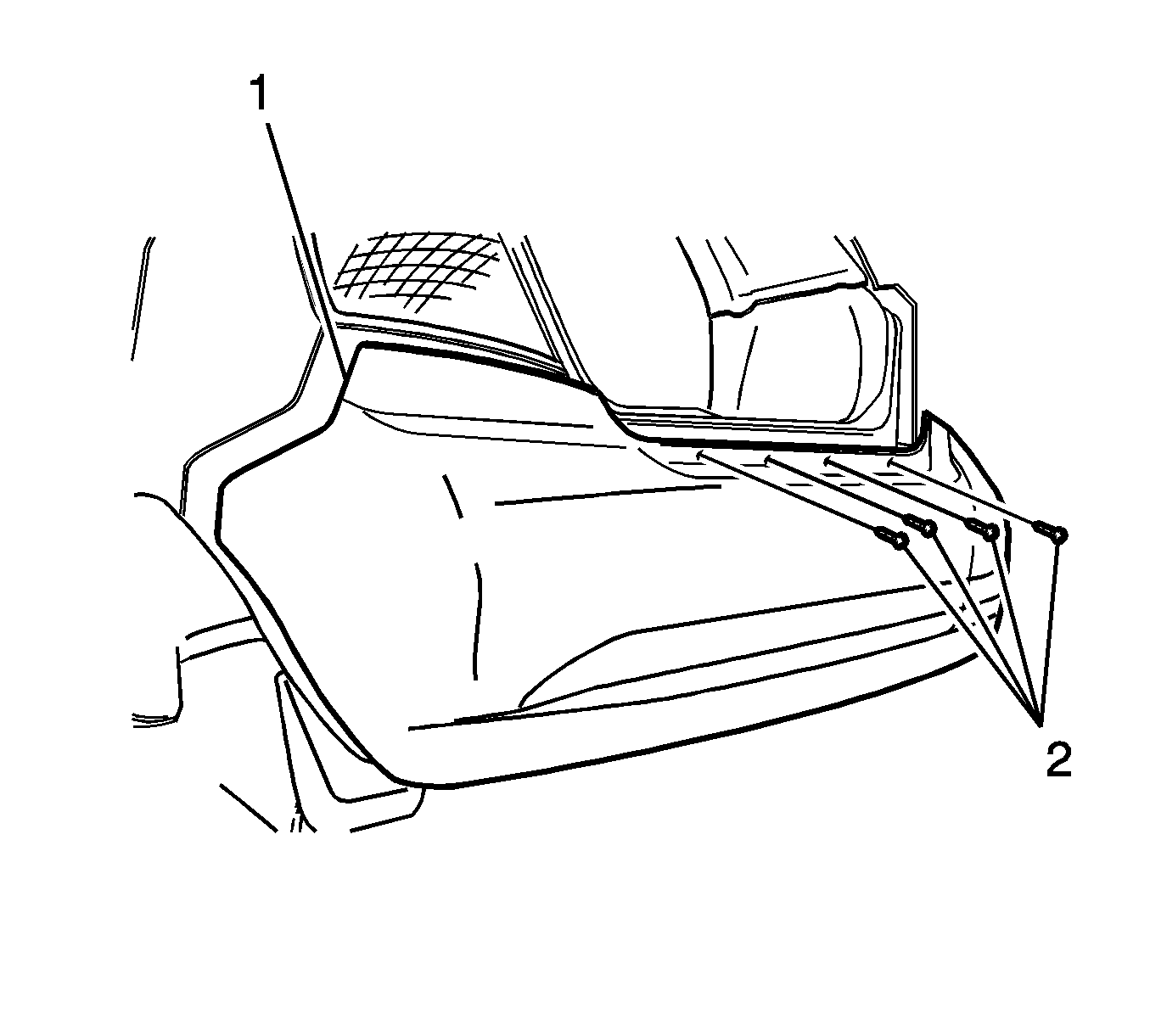

Fig 1: View of Rear Fascia

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the fascia with the rear upper fascia screws.
Tighten: Tighten the rear upper fascia screws to 1.5 N.m (13 lb in).

Fig 2: View of Fascia Screws Beneath Taillamps

Courtesy of GENERAL MOTORS CORP.

Install the fascia screws beneath the tail lamps.
Install the exterior trim panels beneath the tail lamps with the bolts.
Tighten: Tighten the trim panel bolts to 10 N.m (89 lb in).

Fig 3: View of Bolts In Luggage Compartment

Courtesy of GENERAL MOTORS CORP.

Install the bolts in the luggage compartment.
Tighten: Tighten the luggage compartment fascia bolts to 5.5 N.m (49 lb in).

Fig 4: View of Nuts Behind Rear Bumper Energy Absorber

Courtesy of GENERAL MOTORS CORP.

Install the rear cargo area trim panels.
Refer to Cargo Area Side Trim Panel Replacement (Hatchback) .
Install the nuts behind the rear bumper energy absorber.
Tighten: Tighten the rear bumper energy absorber nuts to 27 N.m (20 lb ft).

Fig 5: View of Screws Behind Fascia

Courtesy of GENERAL MOTORS CORP.

Install the screws behind the fascia.
Tighten: Tighten the screws behind the fascia to 5.5 N.m (49 lb in).
Install the splash shields with the screws.
Tighten: Tighten the splash shield screws to 1.5 N.m (13 lb in).
Install the mud guards with the screws.
Tighten: Tighten the mud guard screws to 1.5 N.m (13 lb in).
