Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

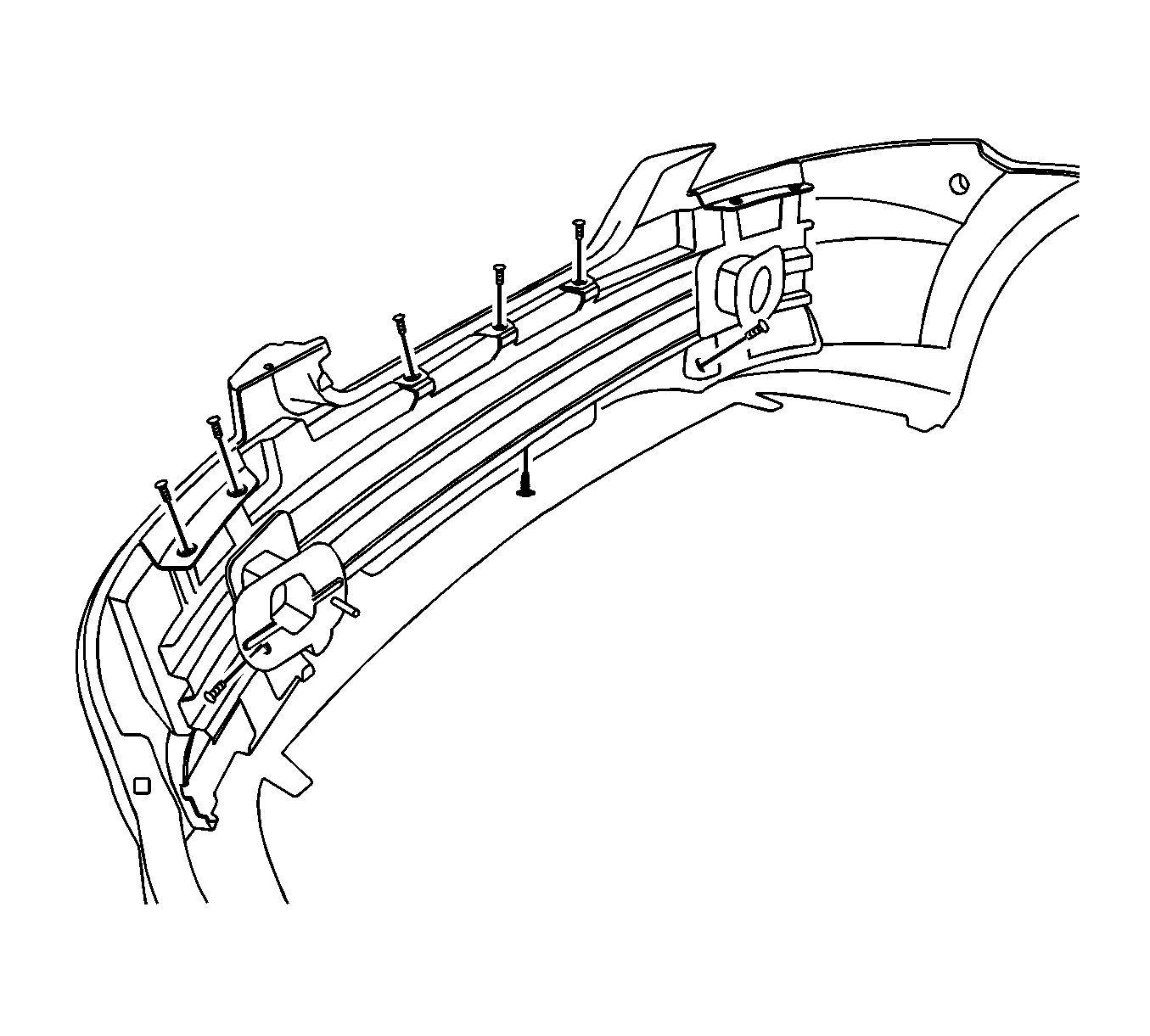

    Fig 1: Front Bumper Fascia
    GM1720324Courtesy of GENERAL MOTORS CORP.
  1. Install the front bumper impact beam.
  2. Install the front bumper fascia. Refer to Front Bumper Fascia Replacement (Notchback)  or Front Bumper Fascia Replacement (Hatchback) .
