Removal Procedure

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

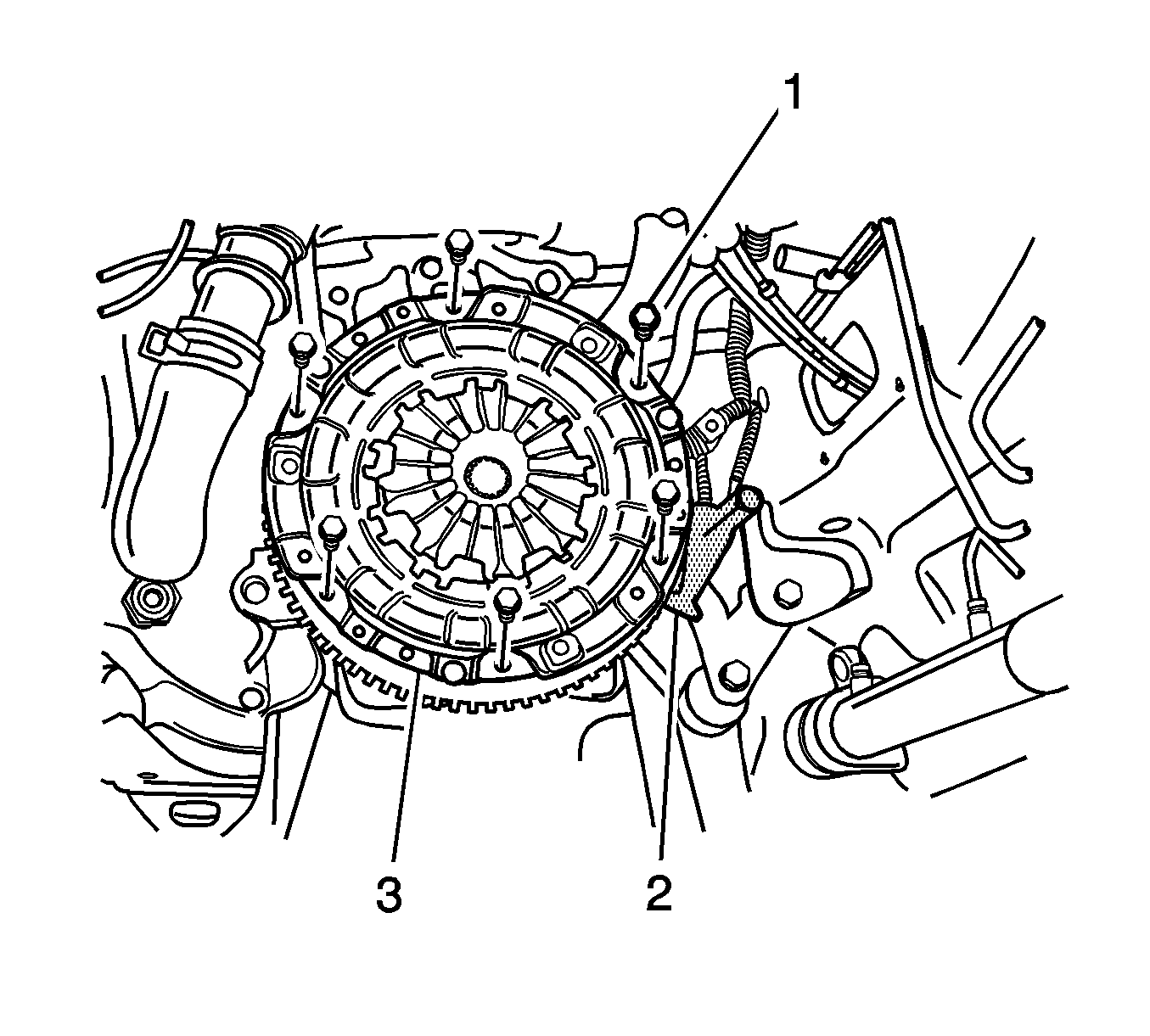

    Fig 1: Pressure Plate, Clutch Disc & J 35271
    GM1375552Courtesy of GENERAL MOTORS CORP.
  1. Remove the transaxle from the vehicle. Refer to Transmission Replacement in Manual Transmission - D16.
  2. Install the J 35271  (2) to the flywheel. See Special Tools and Equipment .
  3. Remove the pressure plate and the clutch disc. Refer to Clutch and Pressure Plate Replacement .

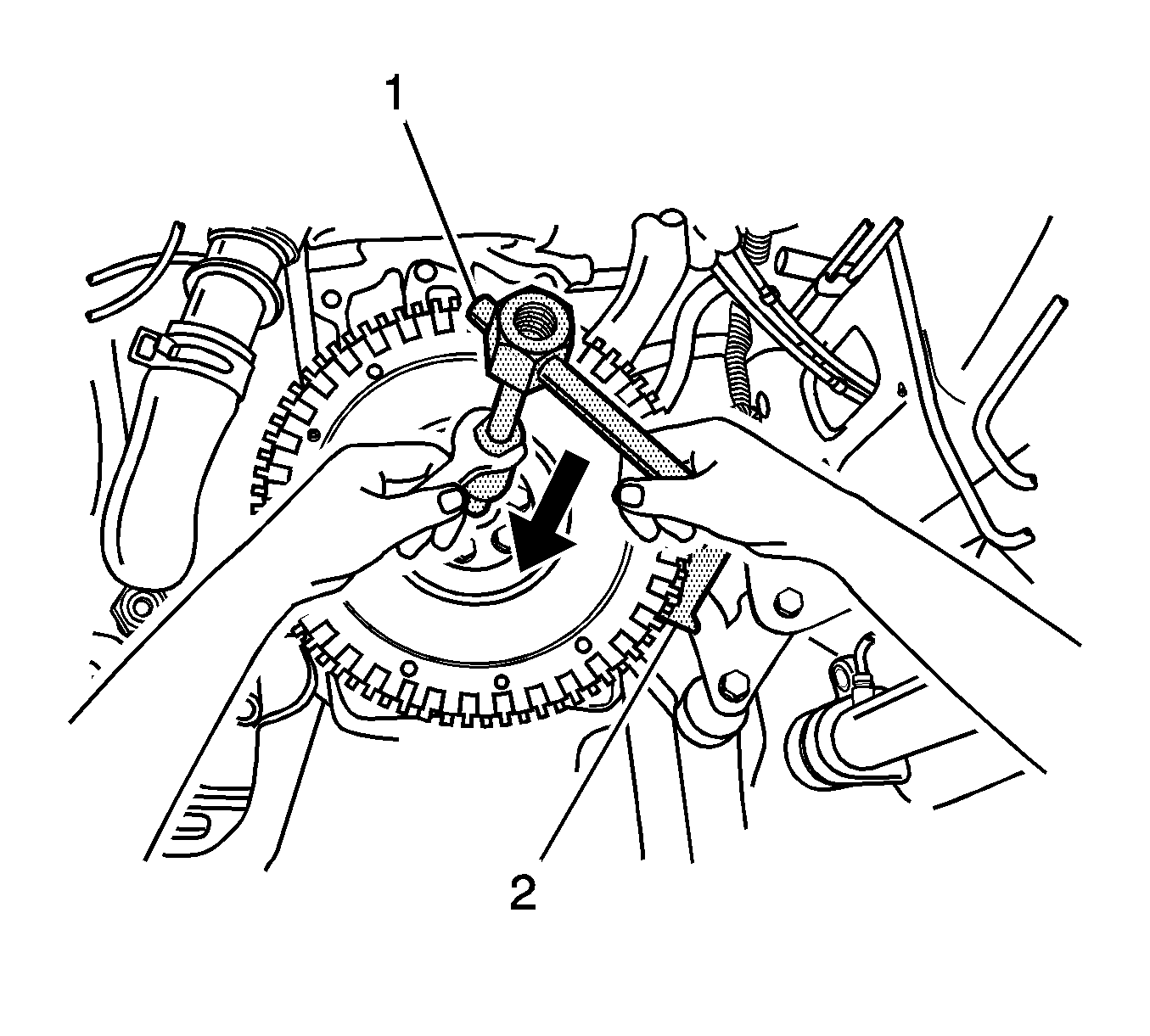

    4. Fig 2: Removing Transmission Input Shaft Bearing From Crankshaft Using J 23907
    GM1375553Courtesy of GENERAL MOTORS CORP.
    CAUTION: Wear safety glasses in order to avoid eye damage.
  4. Remove the transmission input shaft bearing from the crankshaft using the J 23907  (1). See Special Tools and Equipment .
