Installation Procedure

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

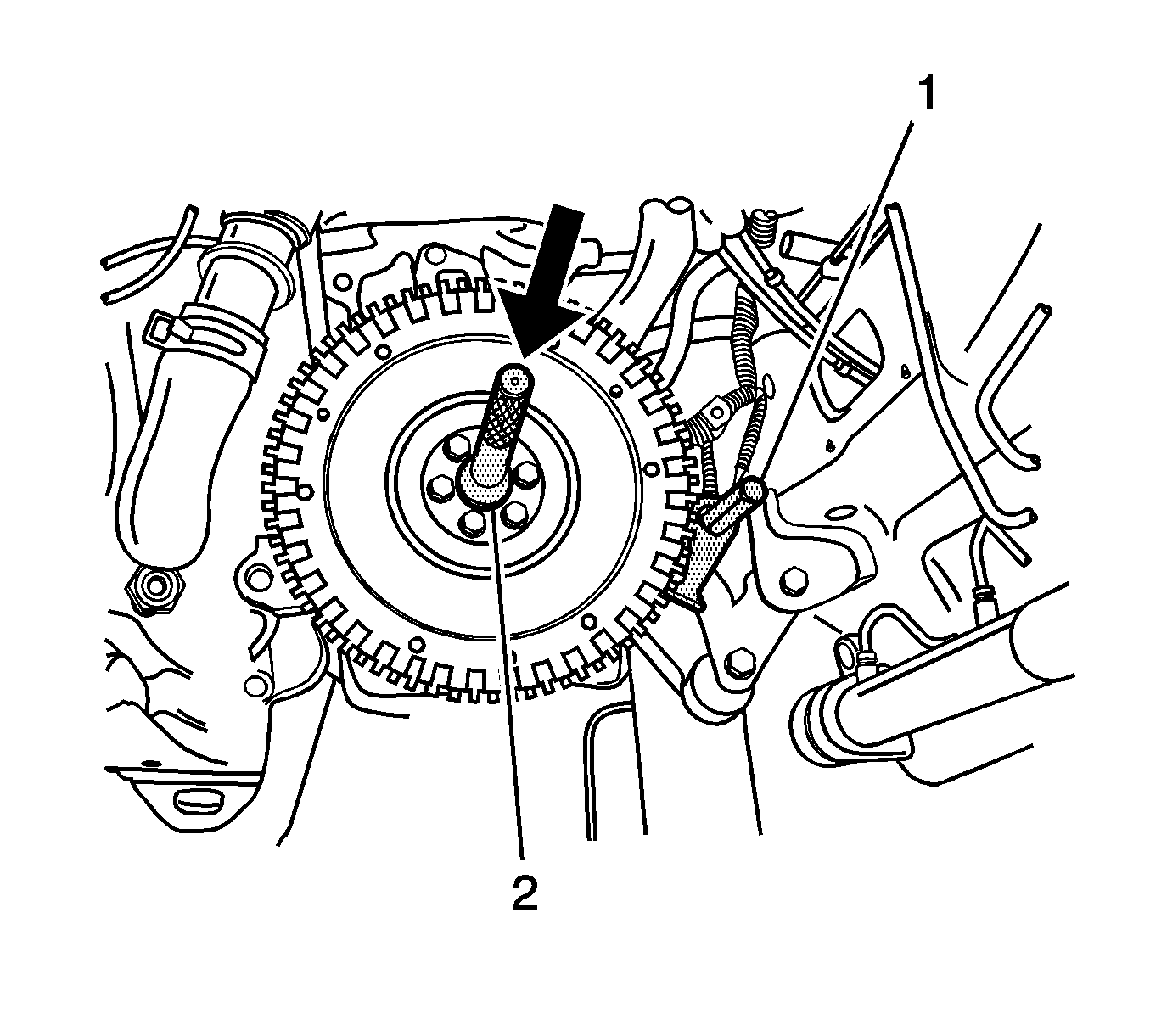

    Fig 1: 09925-98210, J 35271 & Input Shaft Bearing
    GM1375554Courtesy of GENERAL MOTORS CORP.
  1. Install the input shaft bearing using the09925-98210  (2) and J 35271  (1). See Special Tools and Equipment .
  2. Install the pressure plate and the clutch disc. Refer to Clutch and Pressure Plate Replacement .
  3. Remove the J 35271  (1) from the flywheel. See Special Tools and Equipment .
  4. Install the transaxle to the vehicle. Refer to Transmission Replacement in Manual Transmission - D16.
