Installation Procedure
WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
- Coat the spline on the clutch disc with multi-purpose grease.

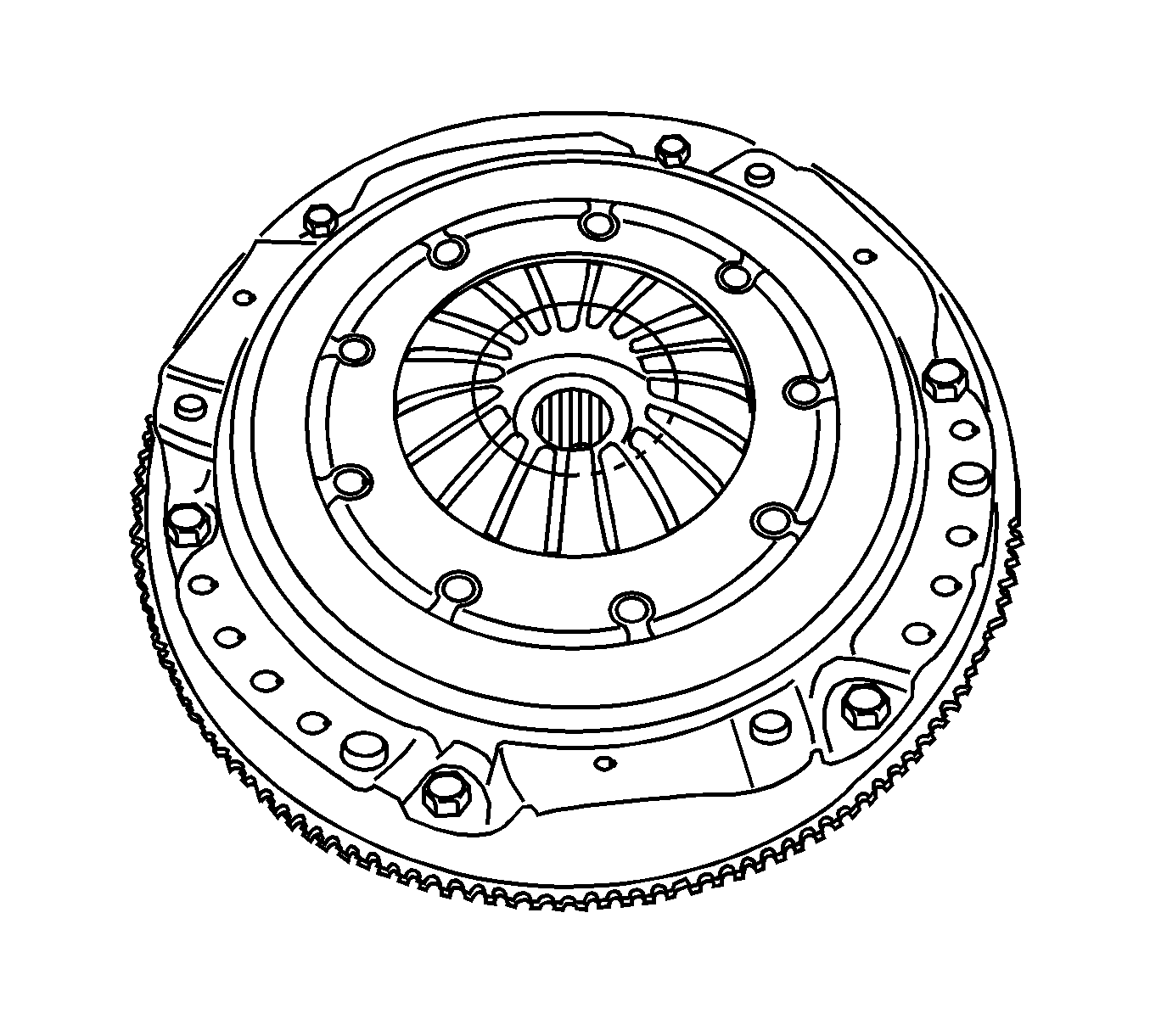

- Align the pressure plate and the clutch disc onto the flywheel using DT 46551 . See Special Tools and Equipment .
- Install the pressure plate bolts.
Tighten:
- For the hydraulic clutch type, tighten the bolts to 15 N.m (11 lb ft).
- For the cable clutch type, tighten the bolts to 18 N.m (13 lb ft).
- Remove DT 46551 from the clutch assembly. See Special Tools and Equipment .
- Install the transaxle into the vehicle. Refer to Transmission Replacement in Manual Transmission - D16.
- Connect the negative battery cable.
NOTE:
Refer to Fastener Notice
in Cautions and Notices.
