Removal Procedure

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

Before disconnecting the reservoir tank hose, remove the clutch/brake fluid from the reservoir tank.

Fig 1: Push Rod & Clutch Pedal

Courtesy of GENERAL MOTORS CORP.

Remove the locking clip.
Remove the push rod fixing pin and push rod.

Fig 2: Master Cylinder Hose

Courtesy of GENERAL MOTORS CORP.

Disconnect the hose clamp on the master cylinder.
Disconnect the master cylinder hose.

Fig 3: Master Cylinder Pipe

Courtesy of GENERAL MOTORS CORP.

Remove the master cylinder pipe.

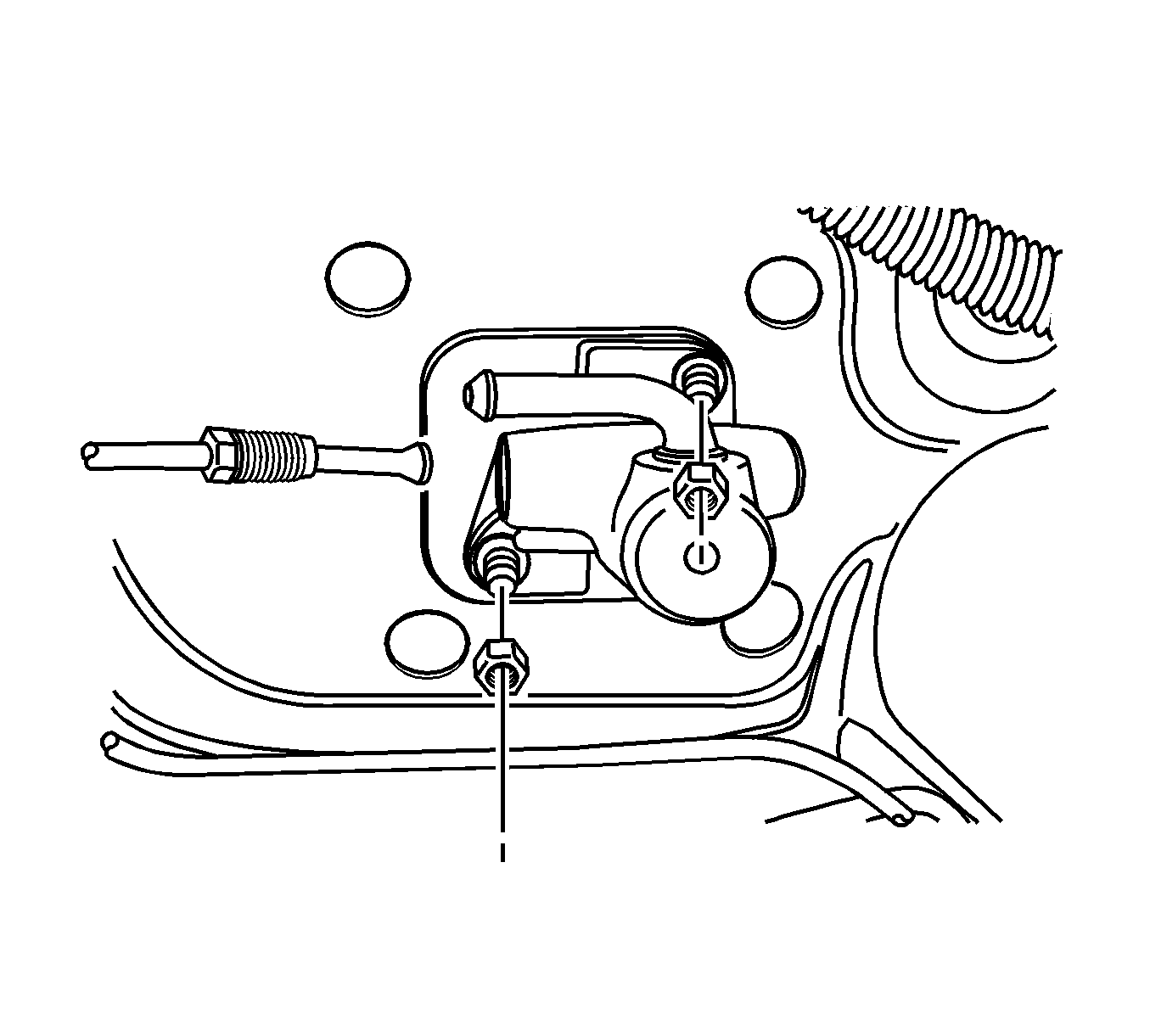

Fig 4: Removing Clutch Master Cylinder

Courtesy of GENERAL MOTORS CORP.

Remove the clutch master cylinder nuts.
Remove the clutch master cylinder.
