Removal Procedure

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

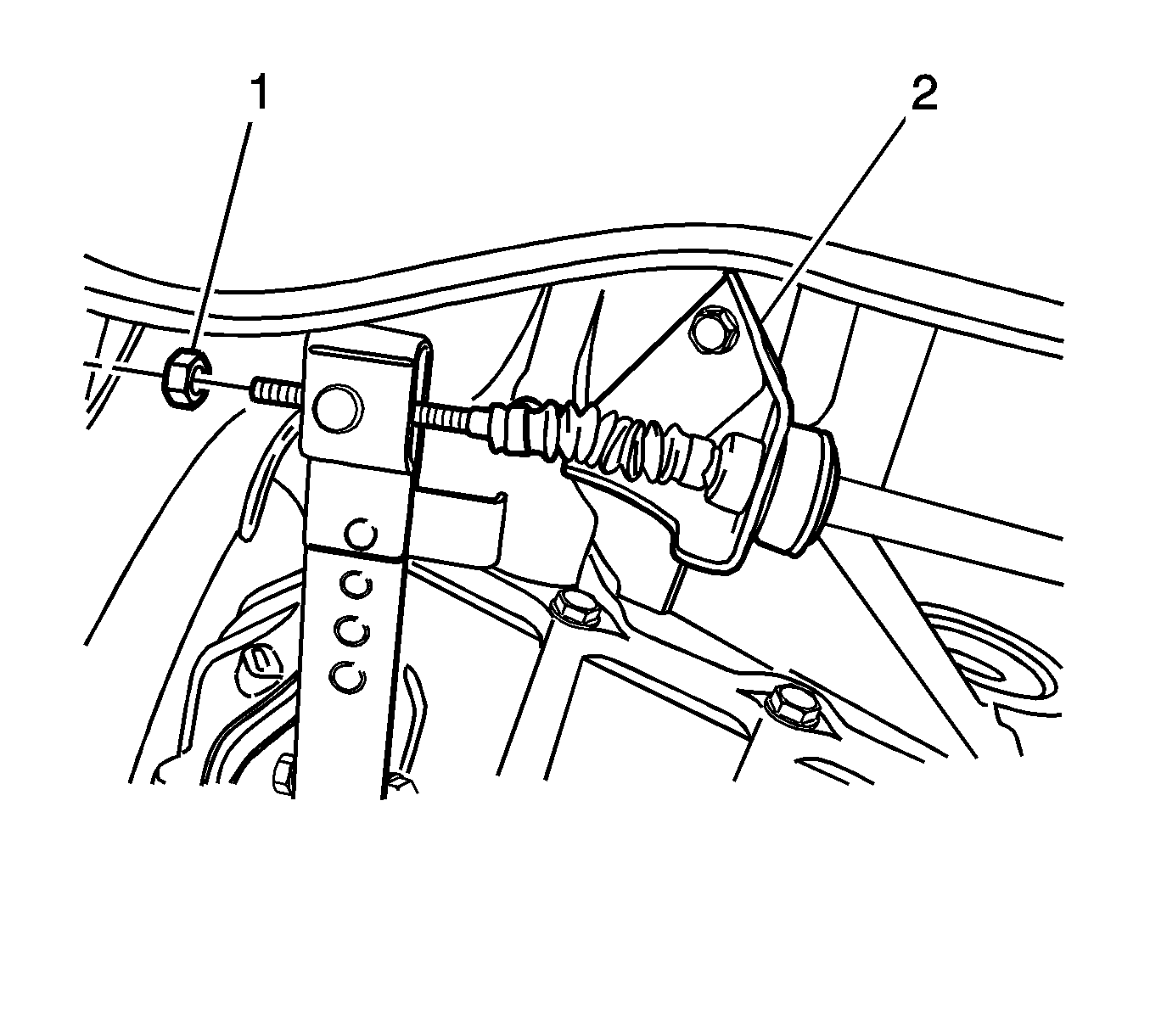

    Fig 1: Clutch Control Cable Adjusting Nut & Mounting Bracket
    GM1291936Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect the negative battery cable.
  2. Remove the clutch control cable adjusting nut (1).
  3. Remove the clutch control cable from the mounting bracket (2).

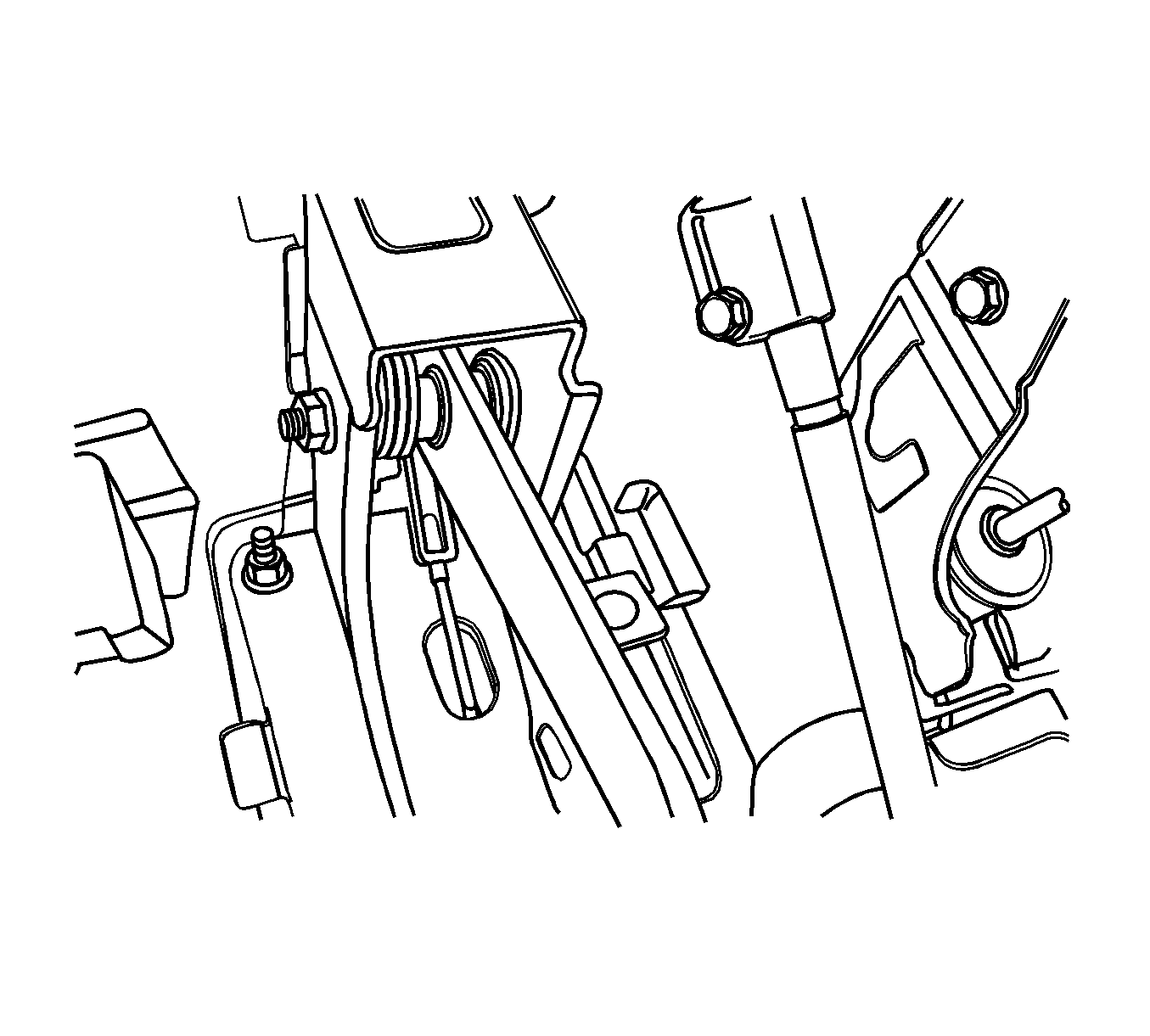

    4. Fig 2: Clutch Control Cable & Clutch Pedal
    GM1375555Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the clutch control cable from the clutch pedal.
  5. Remove the battery. Refer to Battery and Battery Tray Replacement in Engine Electrical.

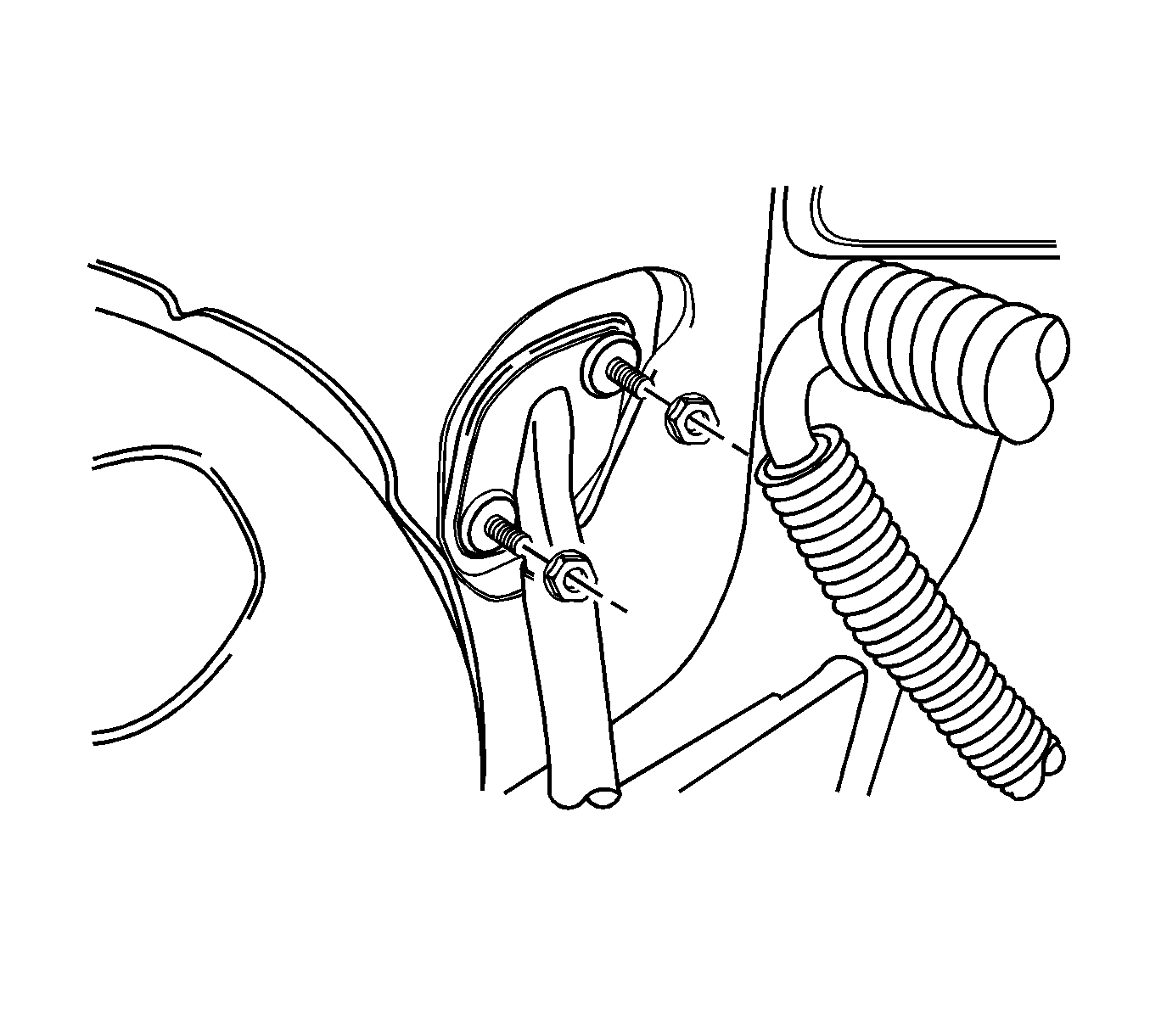

    6. Fig 3: Clutch Control Cable & Cowl Mounting Nuts
    GM1375556Courtesy of GENERAL MOTORS CORP.
  6. Remove the clutch control cable to cowl mounting nuts.
  7. Remove the clutch control cable.
