Clutch Component Locator View
WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

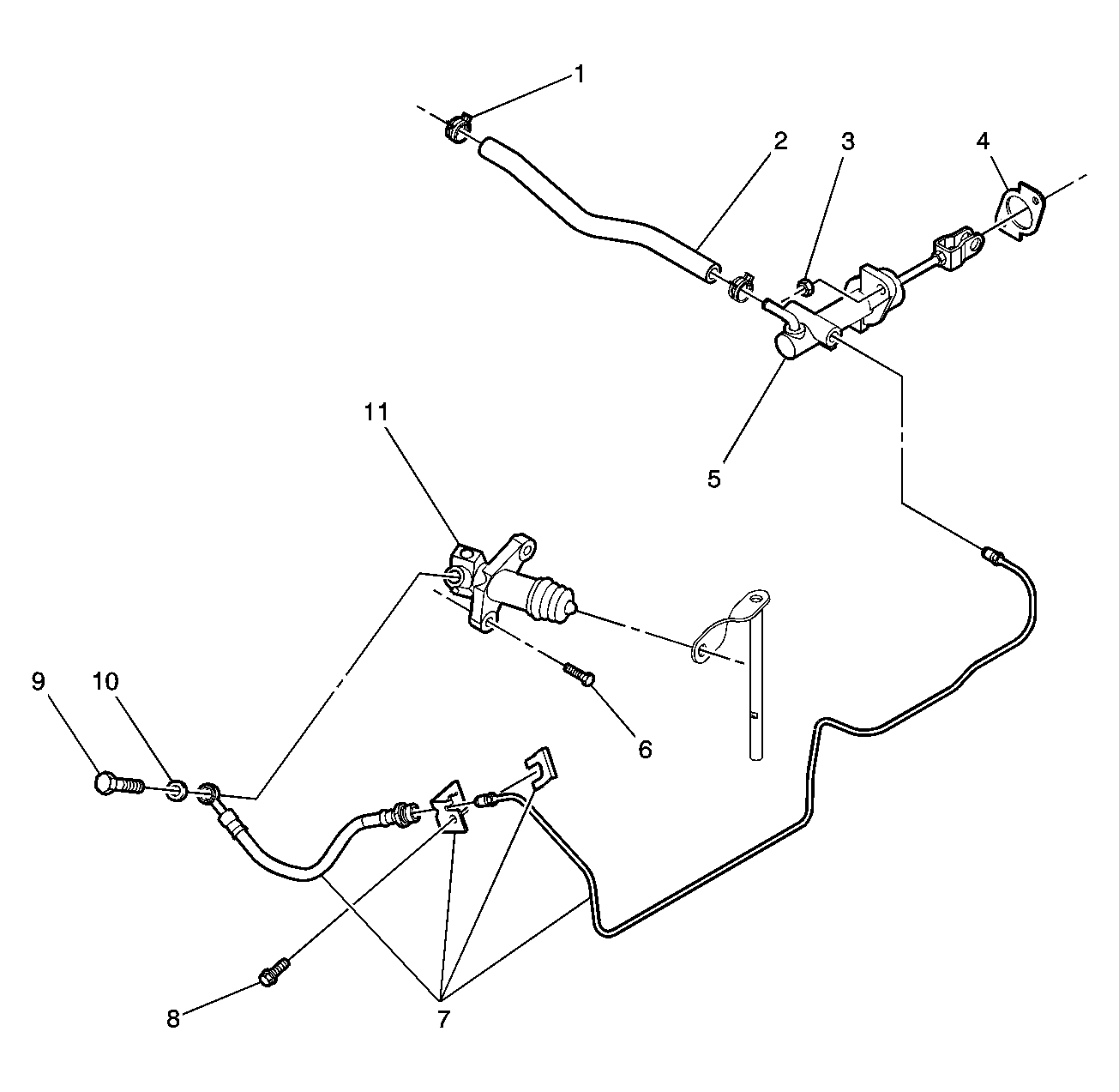

| Callout | Component Name |
|---|---|
| 1 | Clip |
| 2 | Reservoir Tank Hose |
| 3 | Nut |
| 4 | Clutch Master Cylinder Gasket |
| 5 | Clutch Master Cylinder |
| 6 | Bolt |
| 7 | Clutch Master Cylinder Pipe |
| 8 | Bolt |
| 9 | Bolt |
| 10 | Washer |
| 11 | Clutch Release Cylinder |

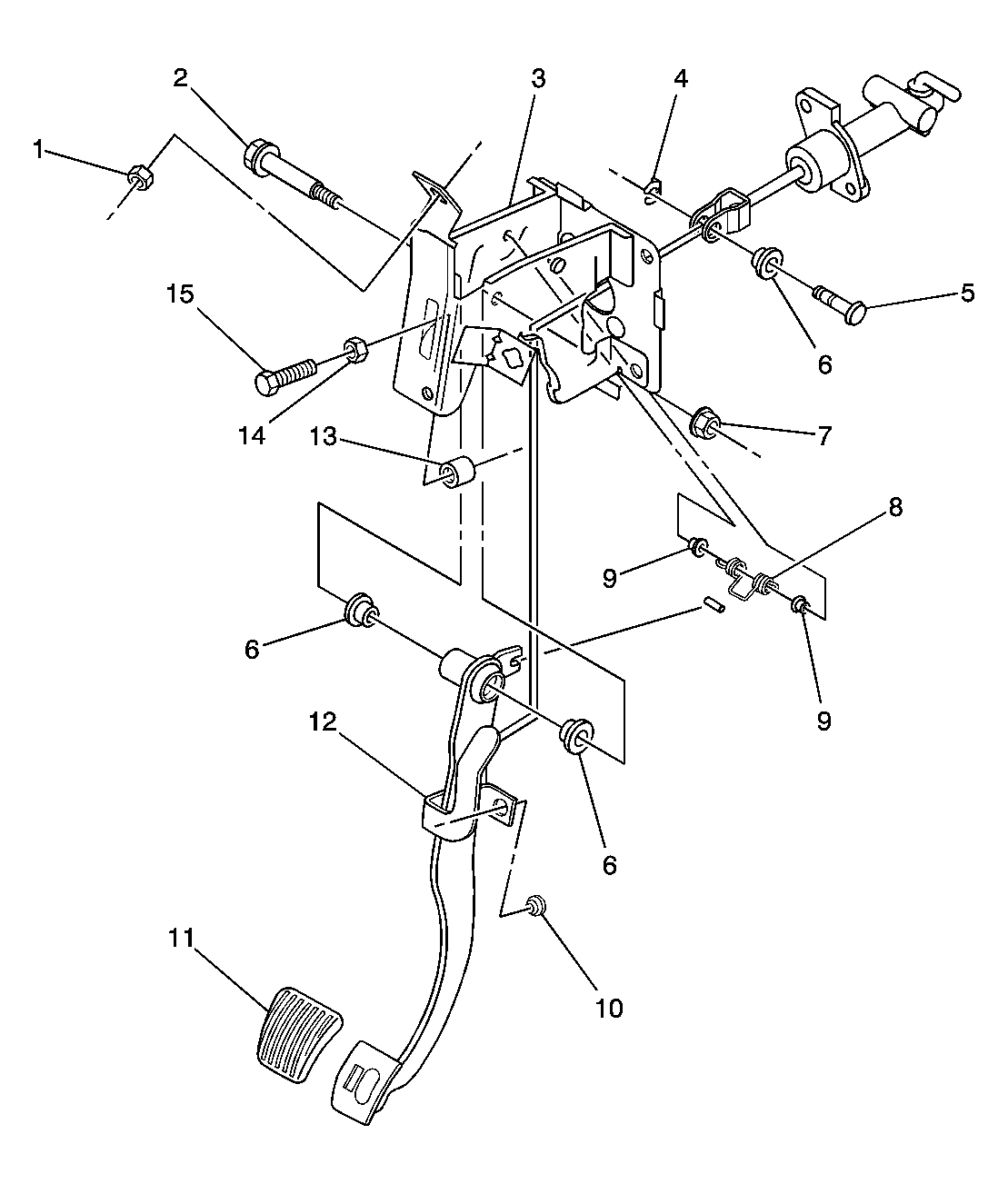

| Callout | Component Name |
|---|---|
| 1 | Nut |
| 2 | Pedal Shaft |
| 3 | Clutch Pedal Brace |
| 4 | E-Ring |
| 5 | Pin |
| 6 | Bushing |
| 7 | Nut |
| 8 | Turn Over Spring |
| 9 | Bushing |
| 10 | Clutch Pedal Buffer |
| 11 | Clutch Pedal Pad |
| 12 | Clutch Pedal |
| 13 | Clutch Pedal Buffer |
| 14 | Nut |
| 15 | Bolt |

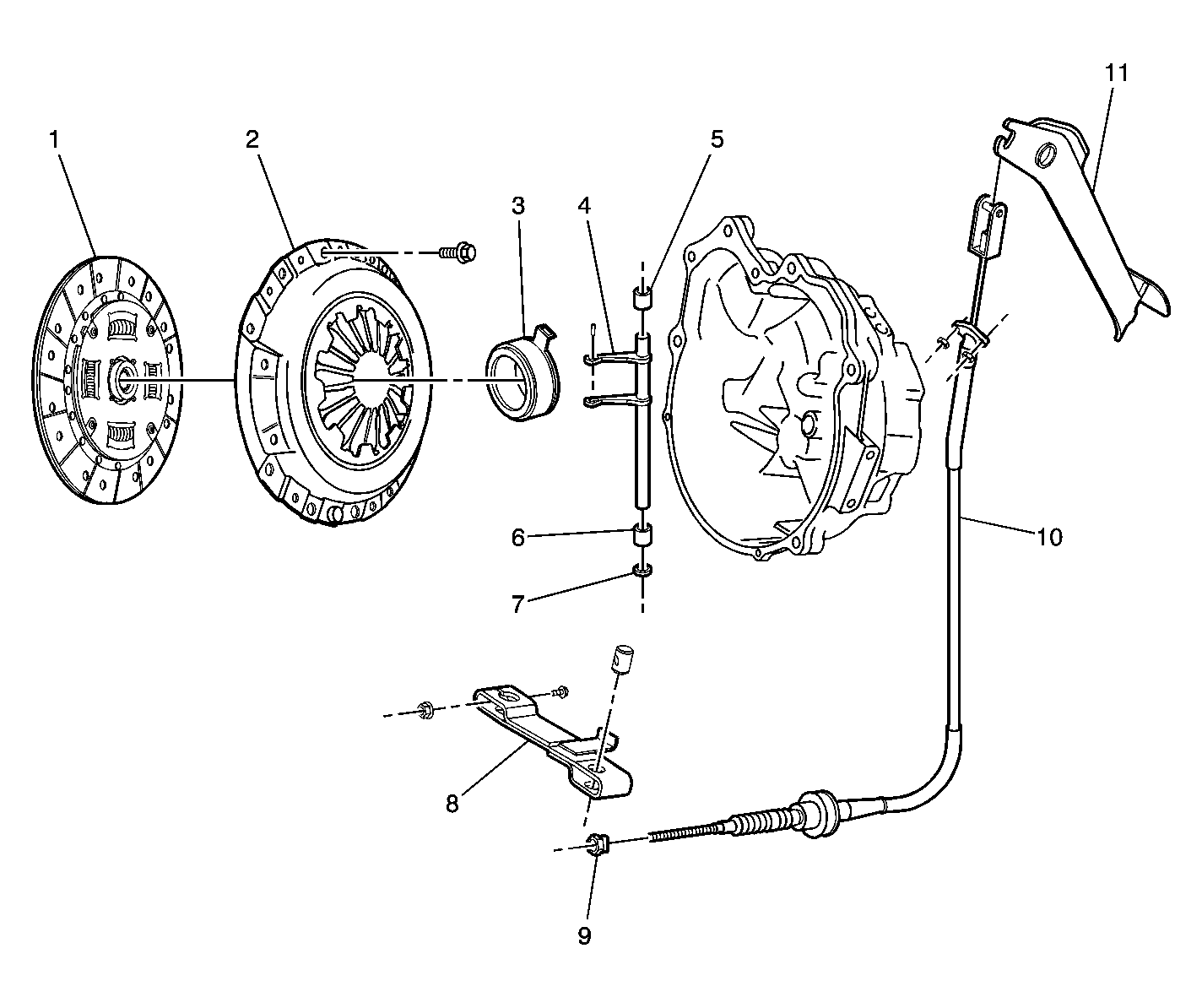

| Callout | Component Name |
|---|---|
| 1 | Clutch Disc |
| 2 | Pressure Plate |
| 3 | Release Bearing |
| 4 | Release Shaft |
| 5 | Release Shaft Bushing (No. 1) |
| 6 | Release Shaft Bushing (No. 2) |
| 7 | Release Shaft Seal |
| 8 | Release Arm |
| 9 | Clutch Cable Adjusting Nut |
| 10 | Clutch Cable |
| 11 | Clutch Pedal |
