Removal Procedure

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
    Fig 1: Intermediate Shaft & Negative Battery Cable
    GM1248342Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the negative battery cable.
  2. Position the tires straight ahead by turning the steering wheel.
  3. Remove the intermediate shaft.
  4. Remove the front tires.

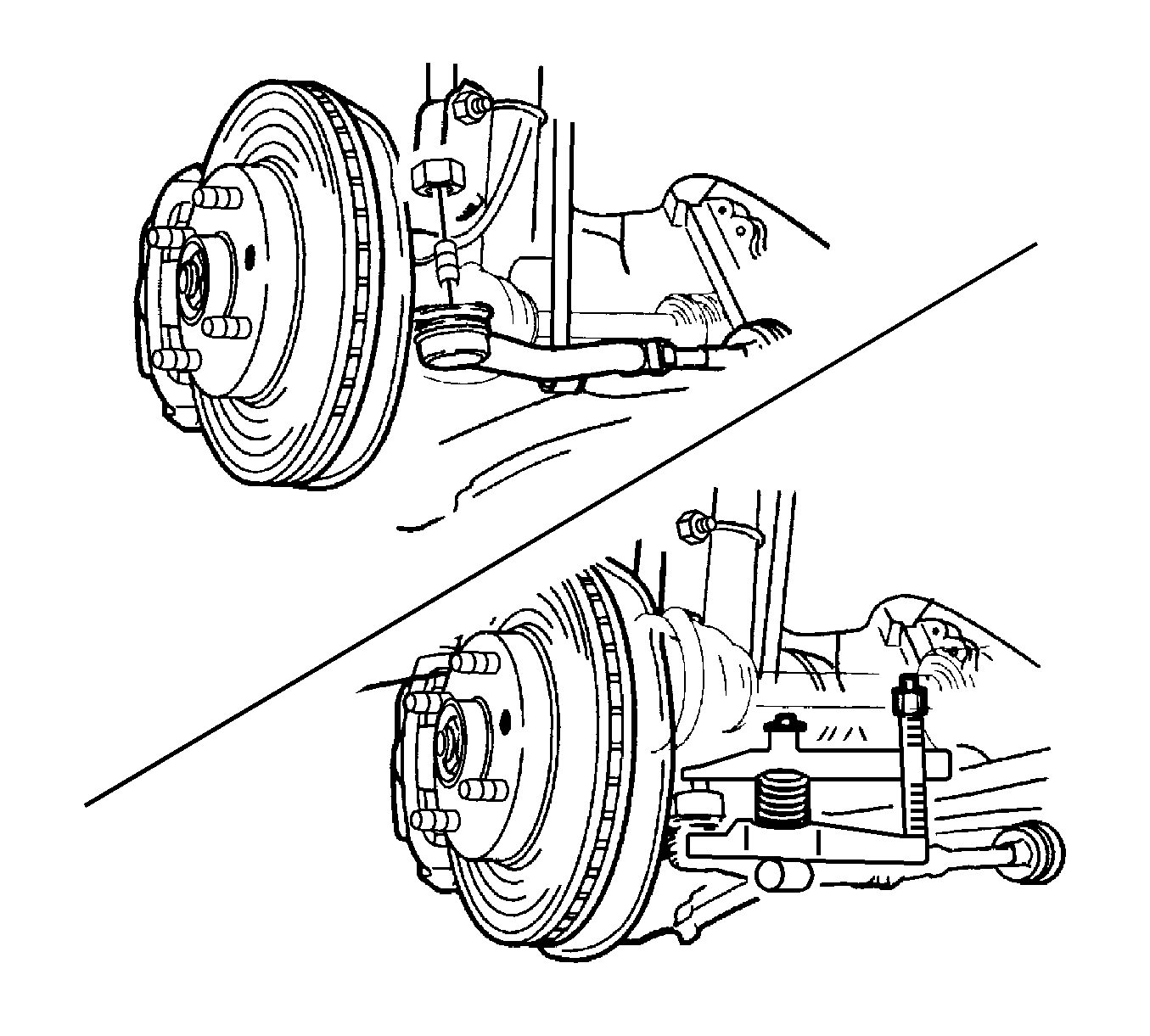

    5. Fig 2: Outer Tie Rod & Hex Nuts
    GM1248344Courtesy of GENERAL MOTORS CORP.
  5. Remove the outer tie rod hex nuts. Refer to Rack and Pinion Outer Tie Rod End Replacement in Power Steering System.

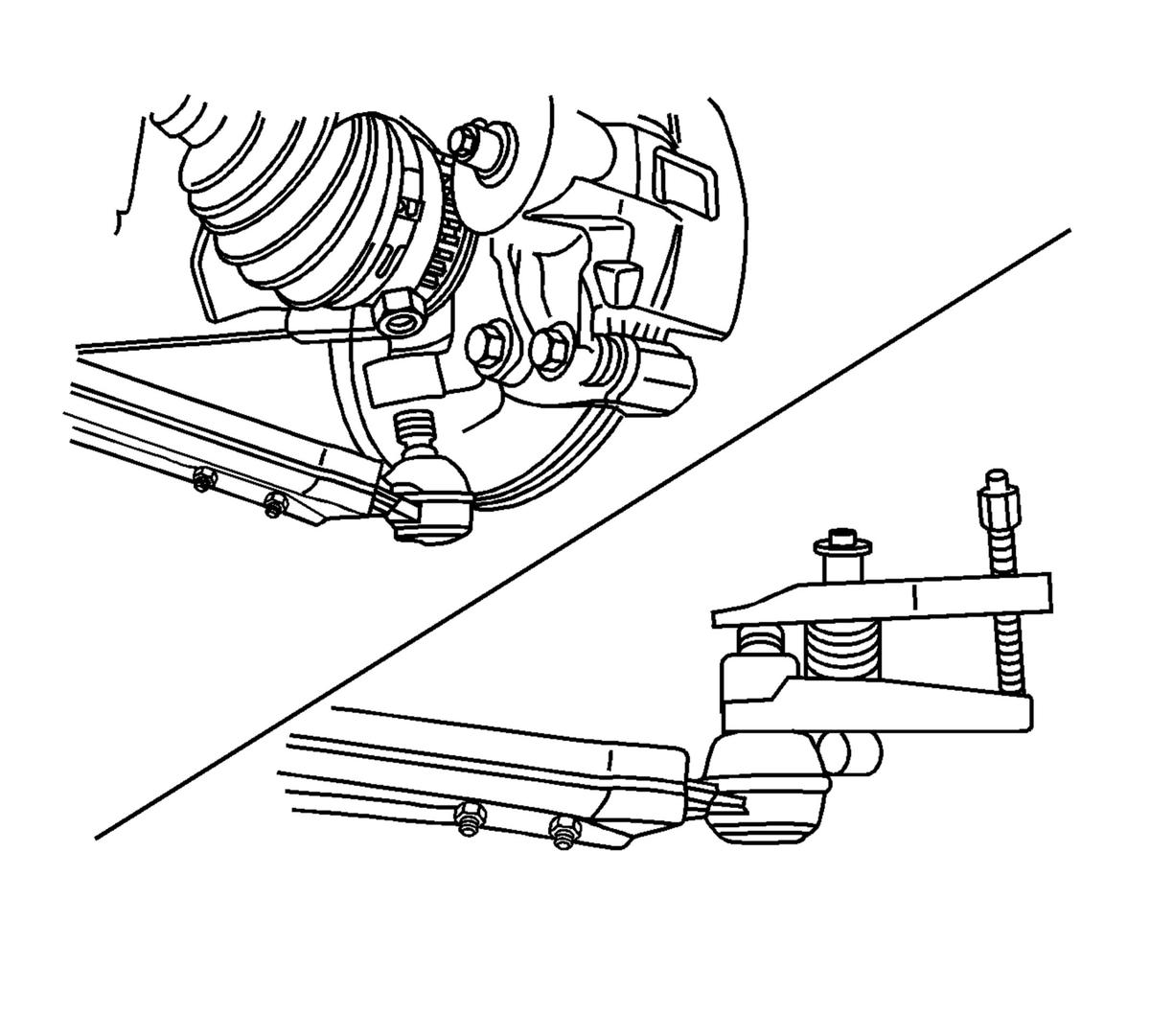

    6. Fig 3: Ball Joint Hex Nuts & Stabilizer Shaft
    GM1241963Courtesy of GENERAL MOTORS CORP.
  6. Remove the ball joint hex nuts and disconnect the stabilizer shaft from the knuckle by removing the stabilizer shaft link assembly. Refer to Stabilizer Shaft Replacement in Front Suspension.

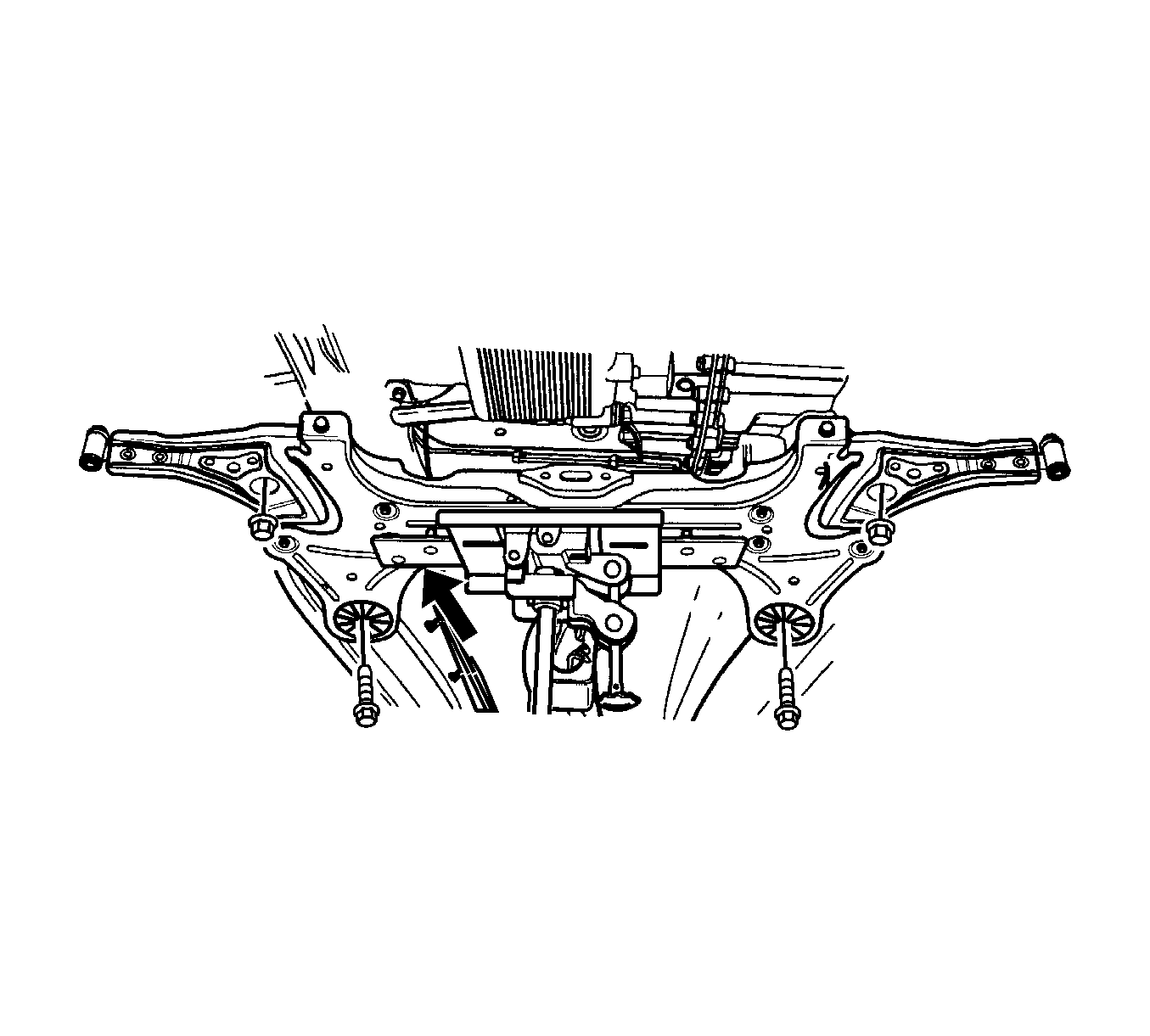

    7. Fig 4: Cross Member, Nuts, Bolts & Underbody
    GM1248345Courtesy of GENERAL MOTORS CORP.
  7. Remove the cross member by removing the nuts and bolts to the underbody.

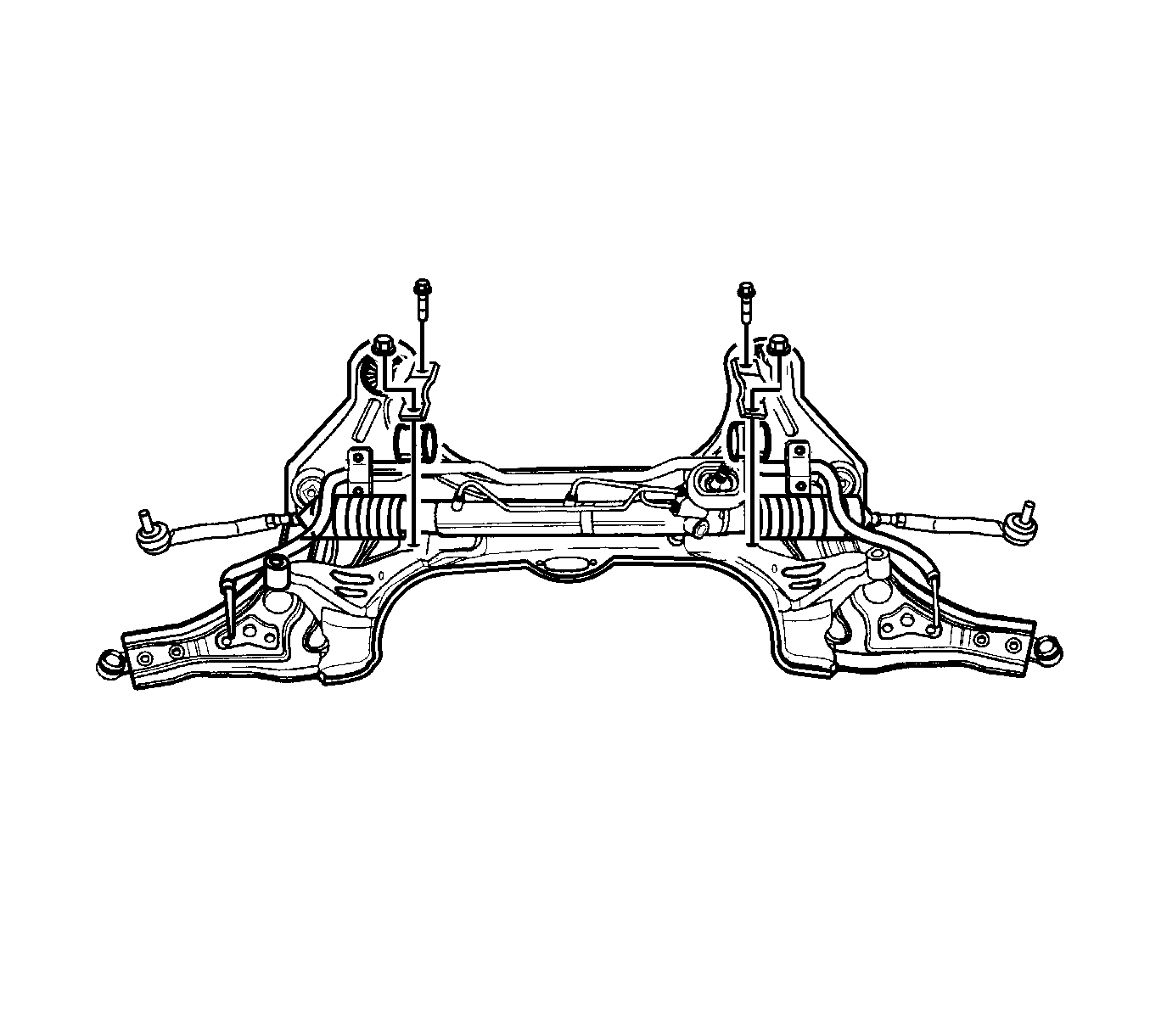

    8. Fig 5: Rack/Pinion Assembly, Steering Gear Retaining Bracket & Nuts
    GM1248346Courtesy of GENERAL MOTORS CORP.
  8. Remove the rack and pinion assembly by disconnecting the steering gear retaining bracket nuts.
