Disassembly Procedure
WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and suitably support the vehicle.
- Place the jackstands under the frame of the vehicle and lower the vehicle slightly so the weight of the vehicle rests on the jackstands and not on the control arms.
- Remove the wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
- Remove the control arm. Refer to Control Arm Replacement .

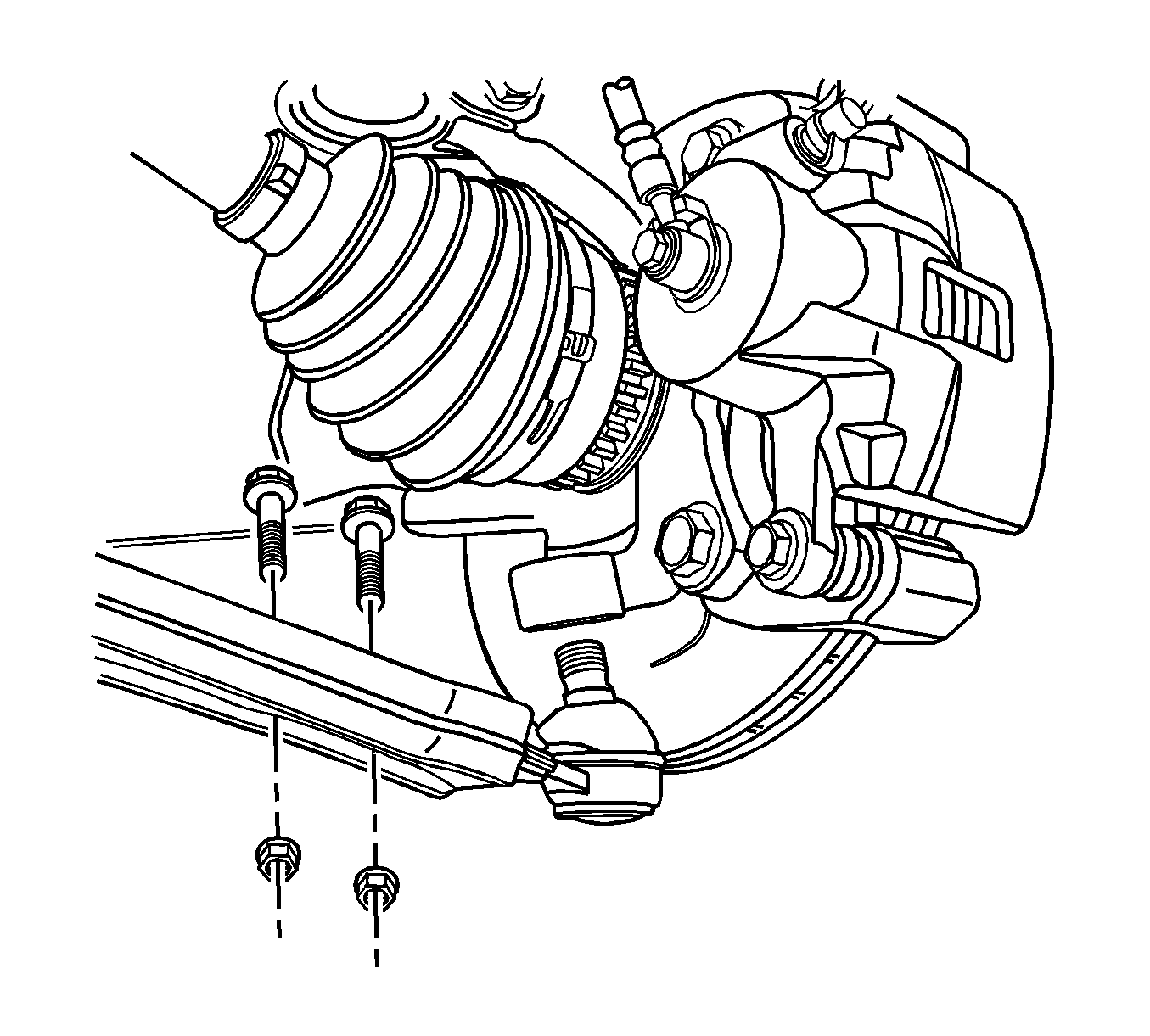

- Remove the ball joint mounting bolts.
NOTE:
Refer to Vehicle Lifting and Jacking Notice
in Cautions and Notices.
