Removal Procedure

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Discharge and recover the refrigerant. Refer to Refrigerant Recovery and Recharging .
  3. Remove the compressor A/C hose assembly connector block fitting nut.

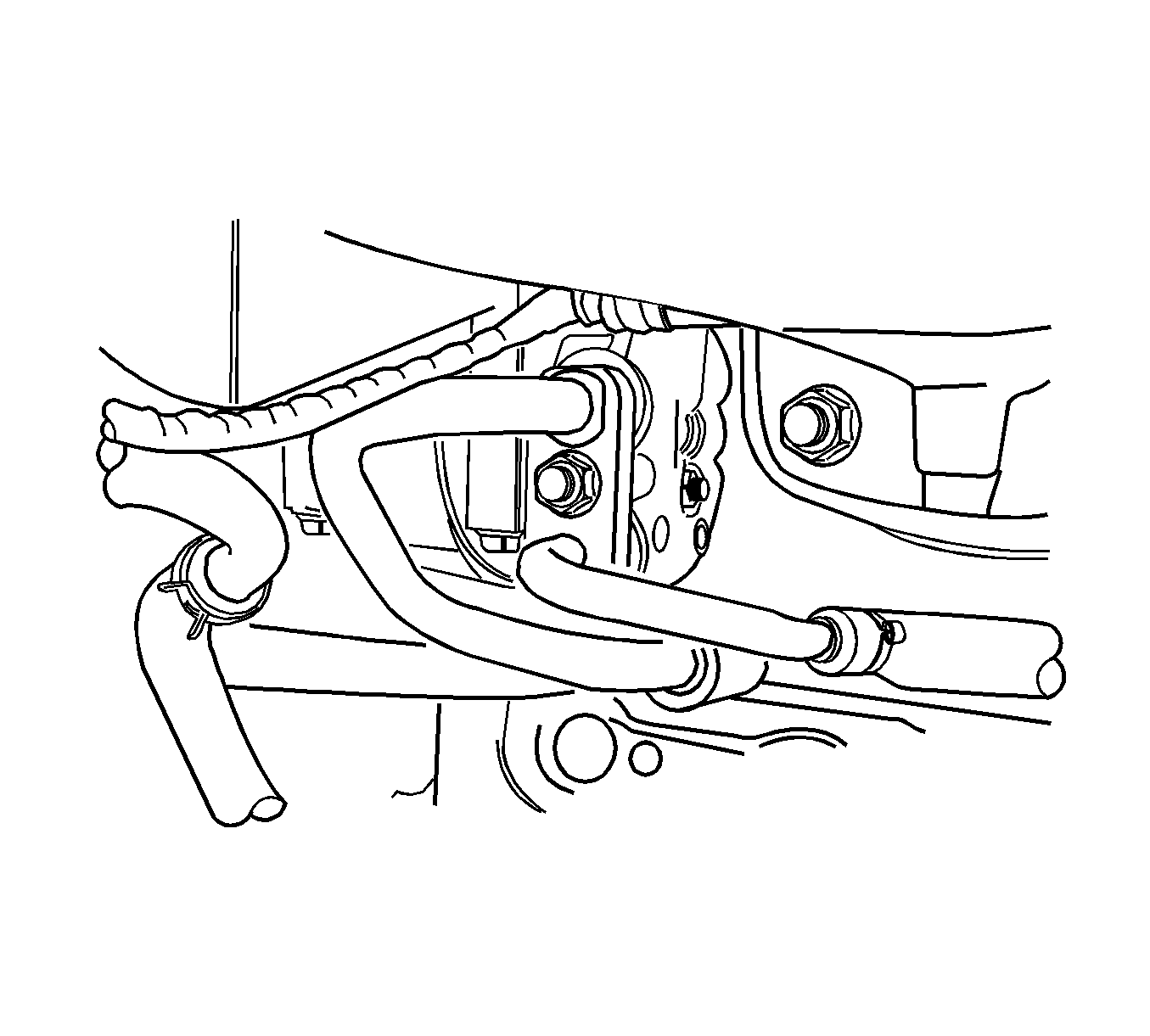

    Fig 1: Compressor A/C Hose Assembly, Connector Block & Fitting Nut
    GM1251945Courtesy of GENERAL MOTORS CORP.
  4. Raise and suitably support the vehicle.
  5. Disconnect the electrical connector at the compressor.
    6. Fig 2: View Of Serpentine Accessory Drive Belt Tensioner
    GM1241549Courtesy of GENERAL MOTORS CORP.
  6. Remove serpentine accessory drive belt.

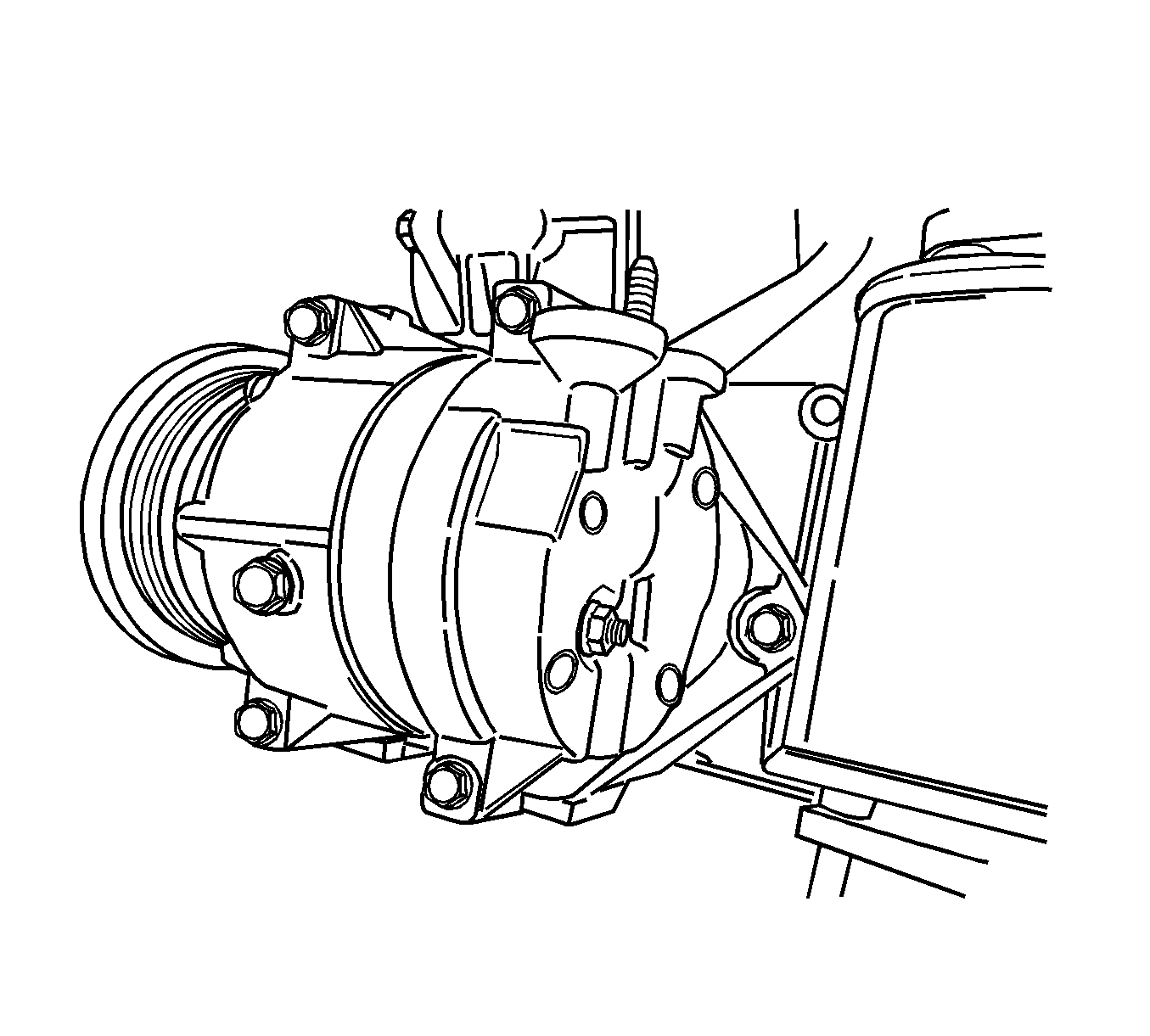

    7. Fig 3: A/C Compressor-To-Bracket & Bolts
    GM1241695Courtesy of GENERAL MOTORS CORP.
  7. Remove the A/C compressor-to-bracket bolts.
  8. Remove the compressor.
  9. Drain the oil from the compressor into a container. Measure the amount of oil drained and then discard the used oil.
