Compressor Control Valve Assembly Install

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 5403  Snap Ring Pliers. See Special Tools and Equipment .

  1. Install the control valve assembly.
  2. Install the control valve retaining ring using J 5403  (1). See Special Tools and Equipment .

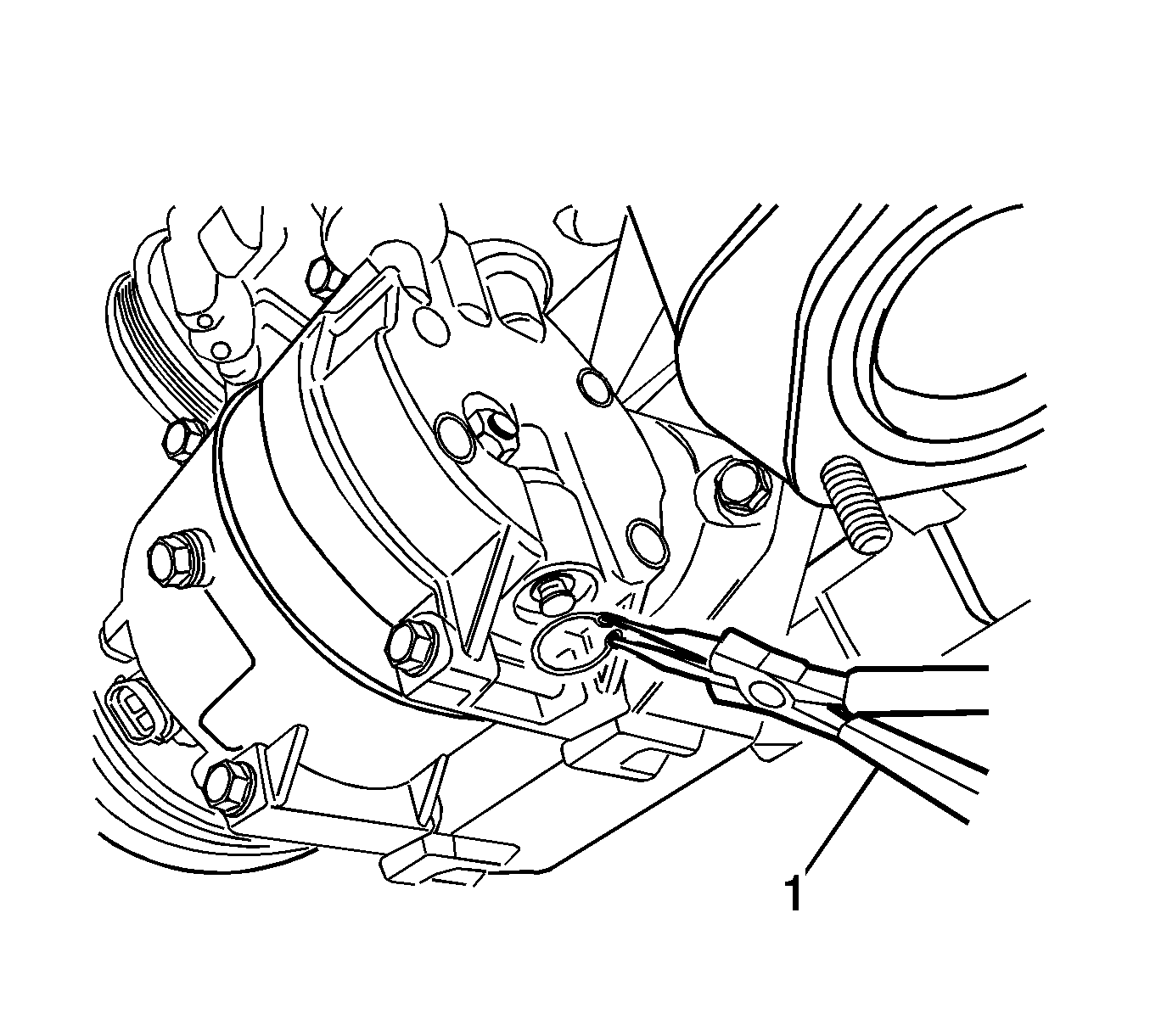

    Fig 1: Control Valve Retaining Ring & J 5403
    GM1252010Courtesy of GENERAL MOTORS CORP.
  3. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging .
