Removal Procedure

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the instrument panel fuse cover.
    Fig 1: Instrument Panel Fuse Cover
    GM1251912Courtesy of GENERAL MOTORS CORP.

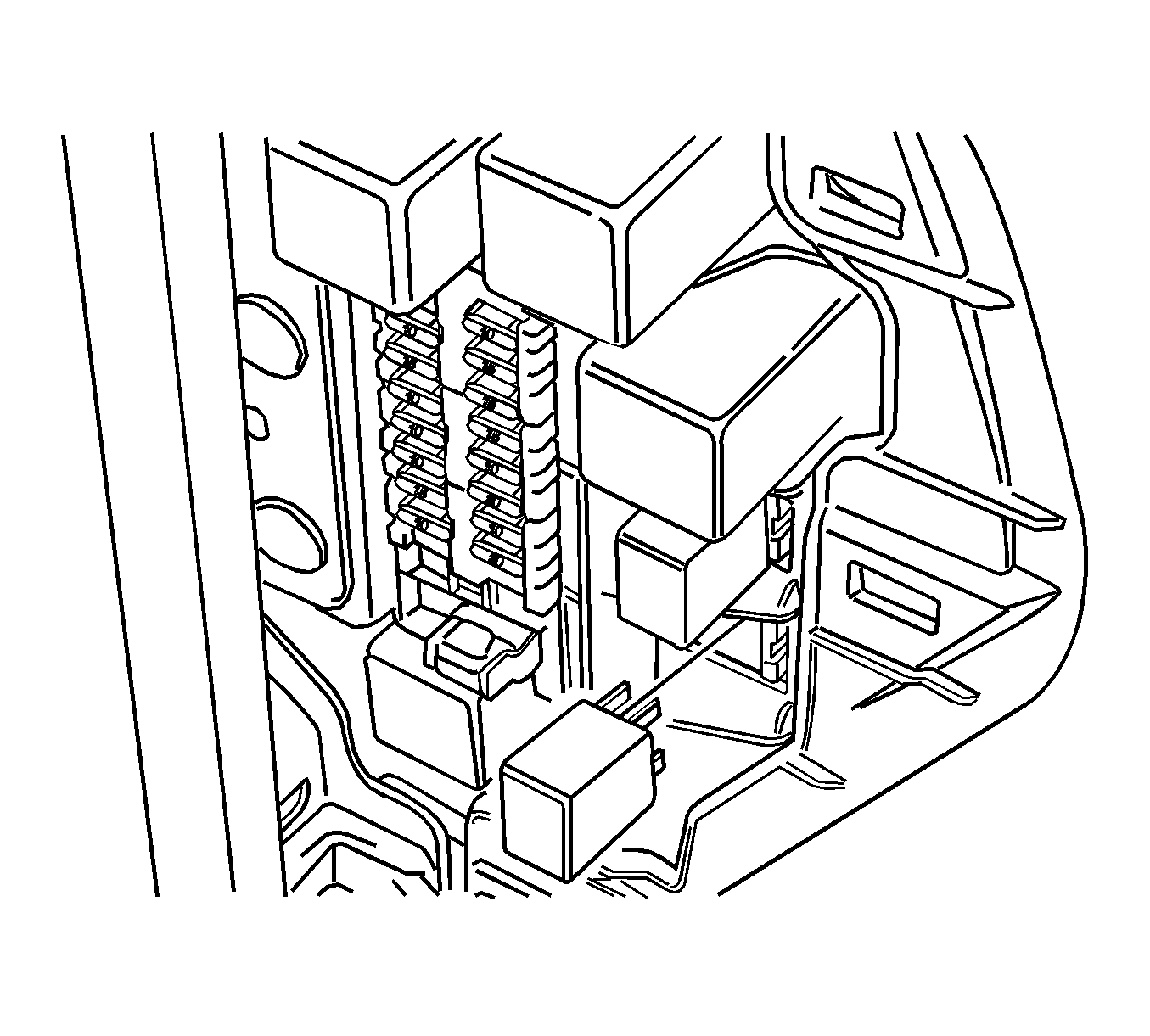

    3. Fig 2: Relay & Relay Box
    GM1251910Courtesy of GENERAL MOTORS CORP.
  3. Pull out the relay at the front of the relay box.
