Removal Procedure

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rotor. Refer to Brake Rotor Replacement .
  2. Remove the screws for the splash shield from the steering knuckle.

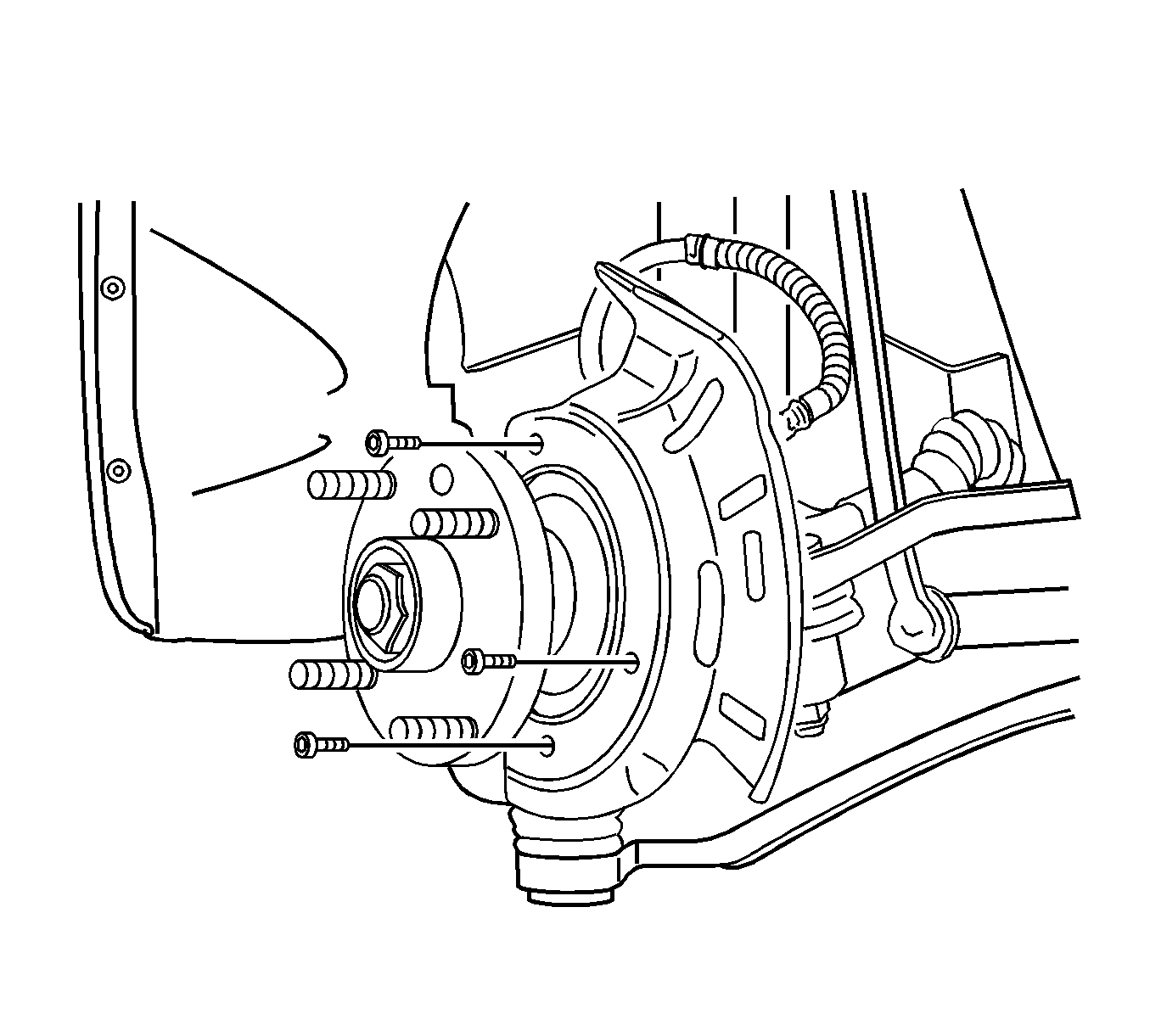

    Fig 1: View of Rotor Splash Shield
    GM1245702Courtesy of GENERAL MOTORS CORP.
  3. Remove the splash shield.
