Removal Procedure

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View of Caliper Assembly Retaining Frame
    GM1245692Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Brake Caliper Notice in Cautions and Notices.
  1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. To maintain wheel balance, mark the relative positions of the wheel and the hub, and remove the front wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
    3. IMPORTANT: It is not necessary to remove the caliper to service the brake shoes.
  3. Remove the lower bolt of the caliper assembly retaining frame.

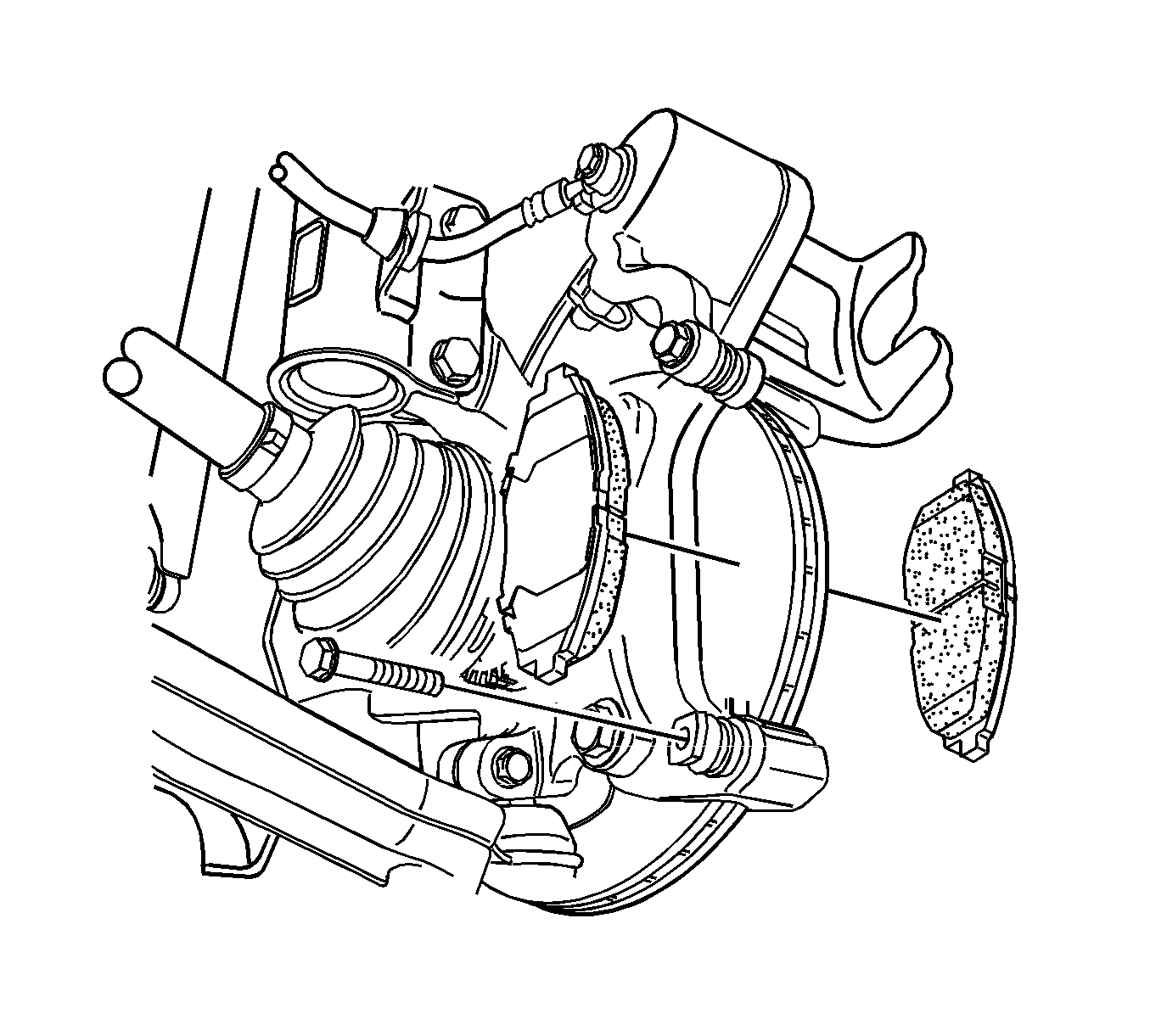

    4. Fig 2: Removal of Brake Pads
    GM1245694Courtesy of GENERAL MOTORS CORP.
  4. Pull the caliper piston housing up.
    5. CAUTION: Refer to Brake Dust Caution in Cautions and Notices.
  5. Remove the brake pads.
