Vehicle Lifting Points

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

Front Lift

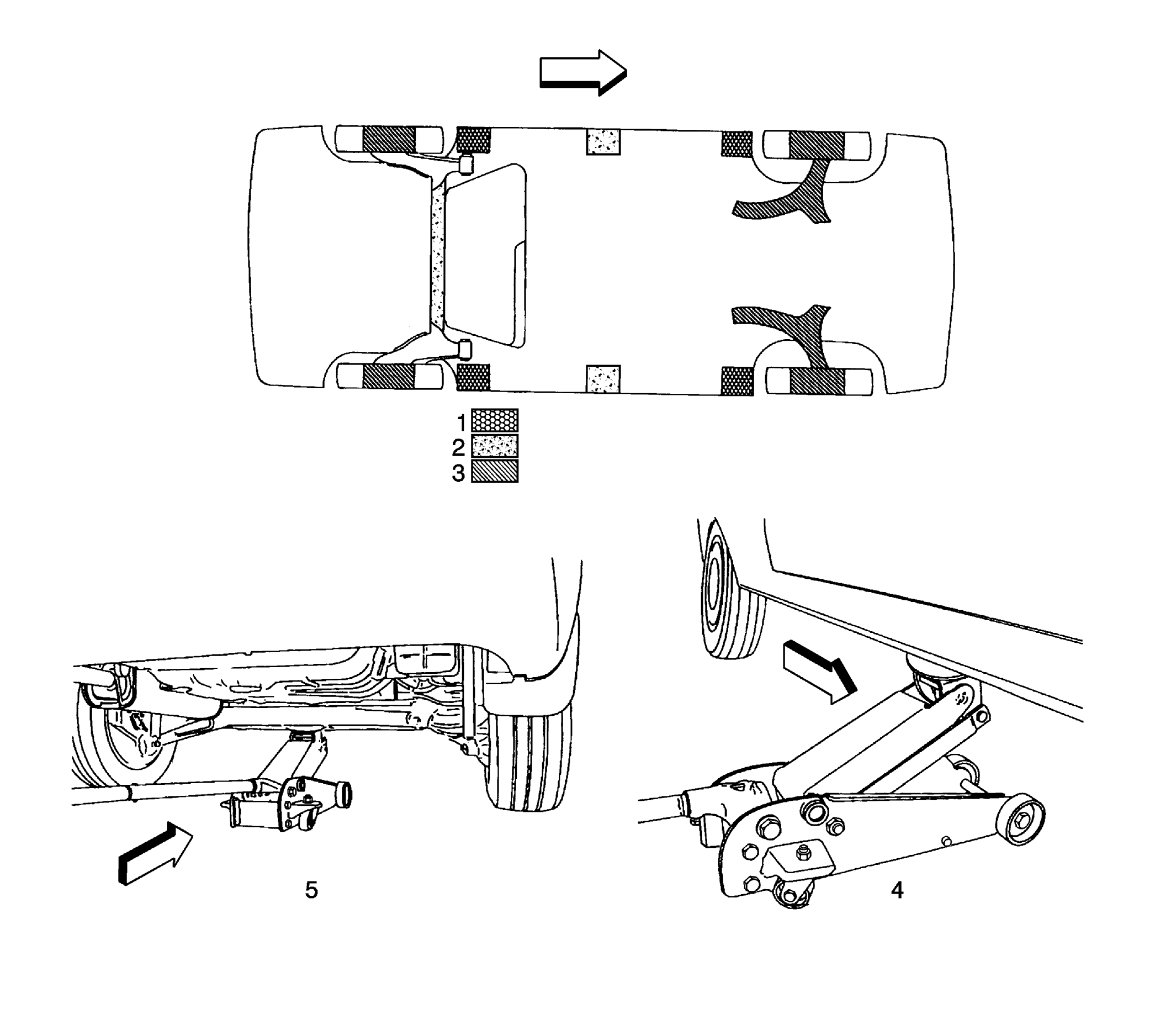

    Fig 1: View Of Front Lift Procedure
    GM1248511Courtesy of GENERAL MOTORS CORP.
  1. Front Contact Hoist
  2. Floor Jack
  3. Suspension Contact Hoist
  4. Center Rocker Lift Point-Left Hand and Right Hand
  5. Rear Suspension Axle Lift Point

Rear Lift

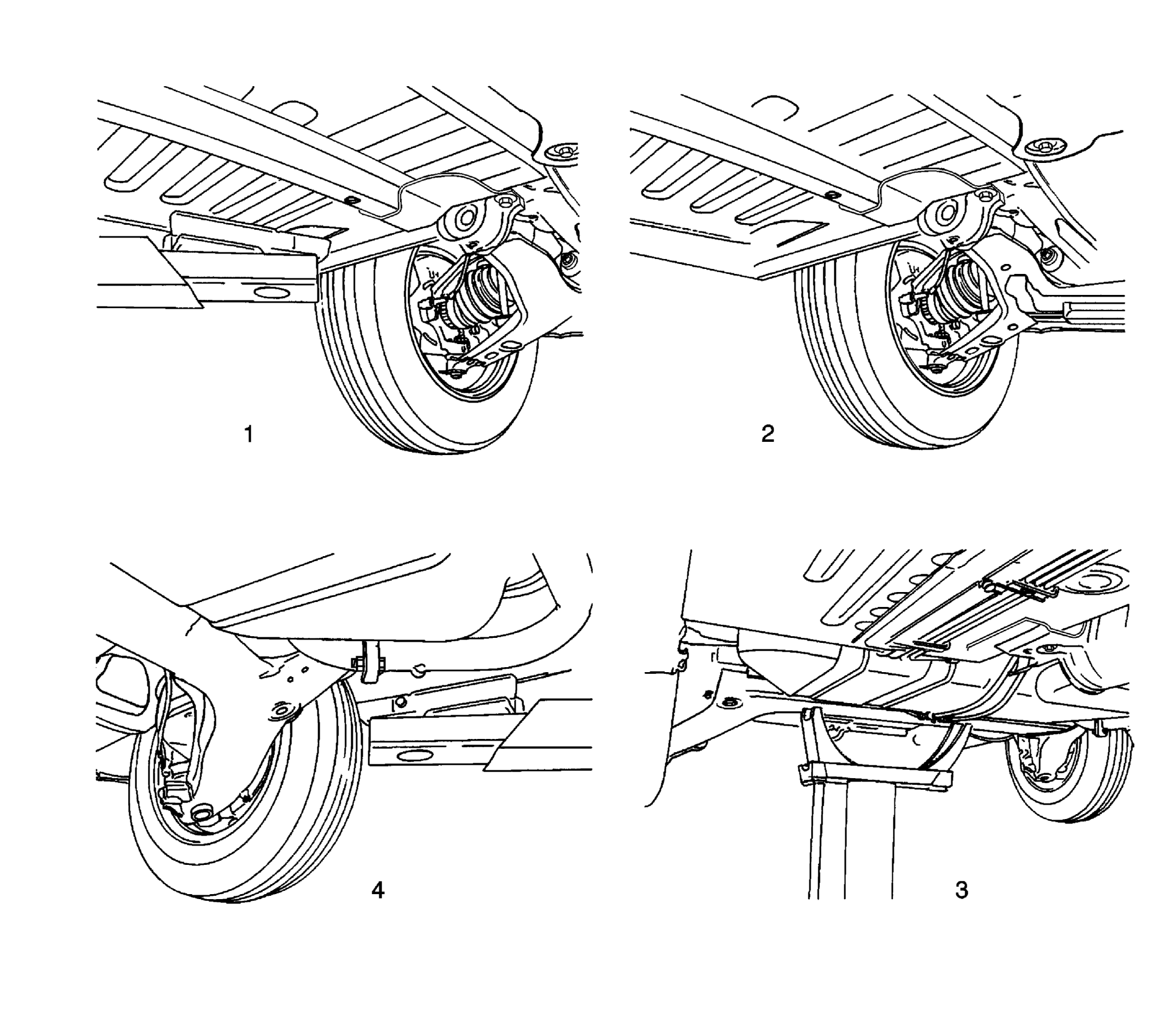

    Fig 2: View Of Rear Lift Procedures
    GM1248512Courtesy of GENERAL MOTORS CORP.
  1. Frame Contact Hoist - Rearward of the Front Tire
  2. Suspension Contact Hoist - Under Front Lower Control Arm
  3. Suspension Contact Hoist - Lifting on Rear Axle
  4. Frame Contact Hoist - Forward of Rear Tire
