Instrument Cluster Schematics

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

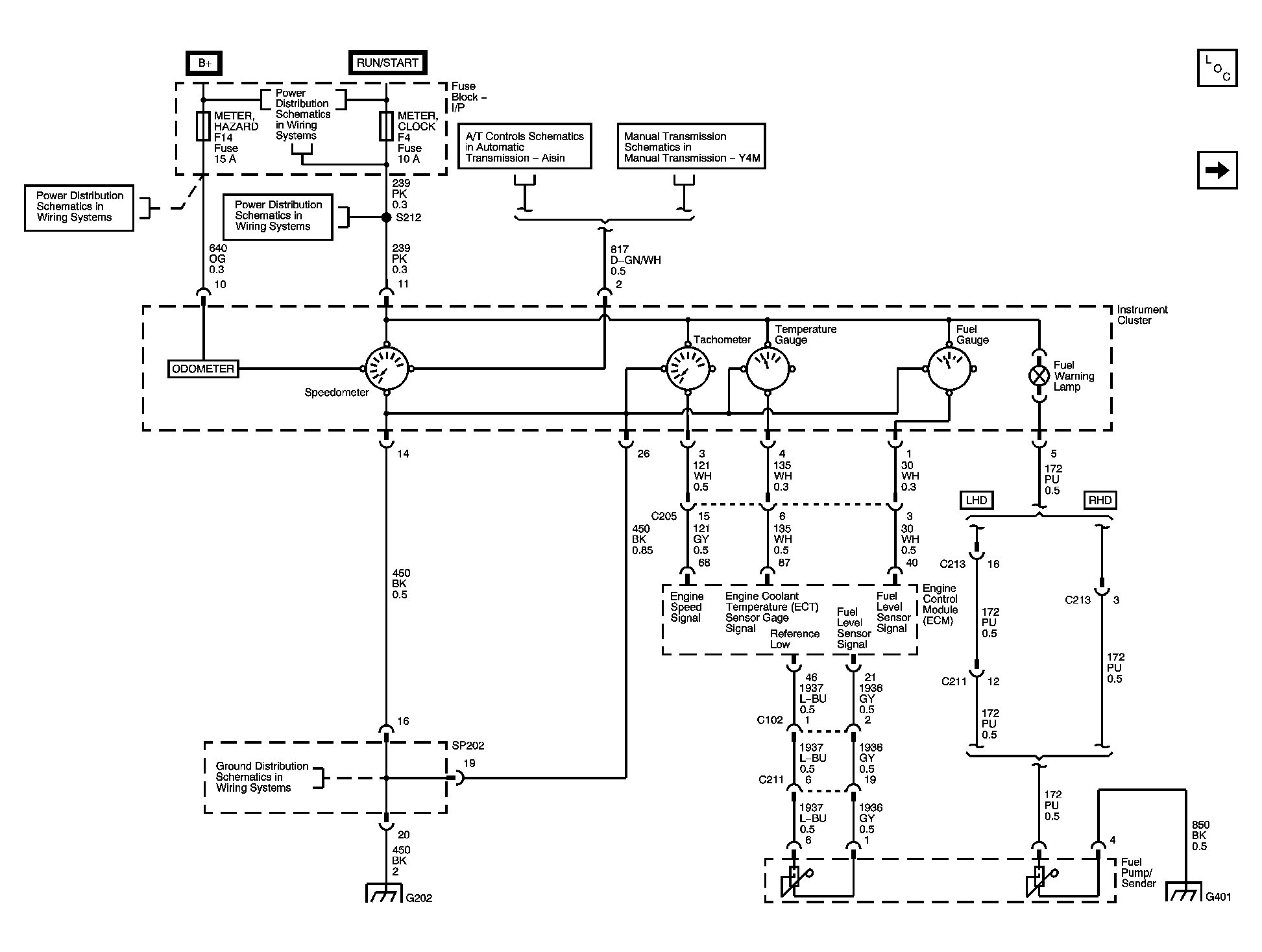

Fig 1: Instrument Panel Gages (1.2L) Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: Instrument Panel Gages (1.4L/1.6L) Schematic

Courtesy of GENERAL MOTORS CORP.

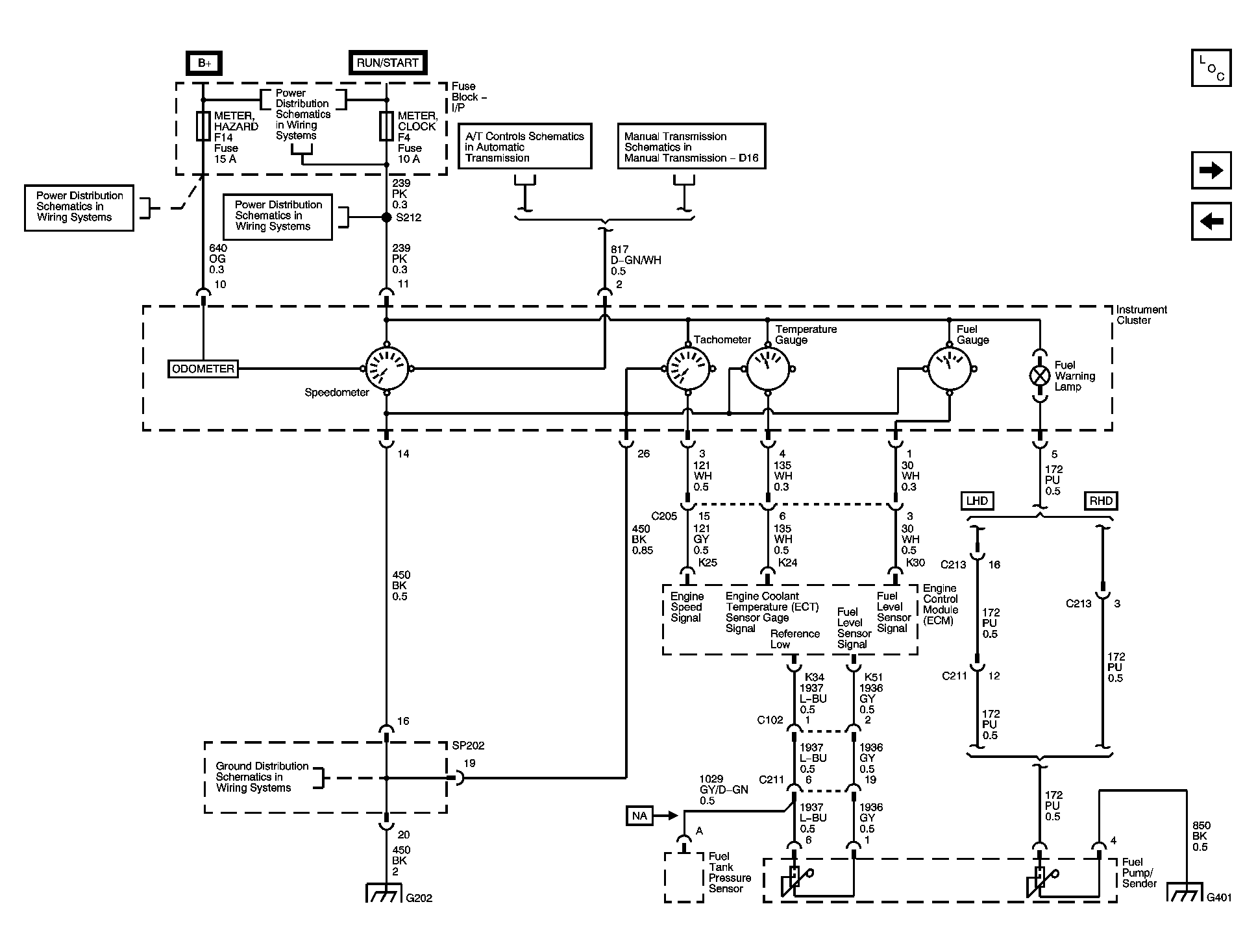

Fig 3: Instrument Panel Gages (1.5L) Schematic

Courtesy of GENERAL MOTORS CORP.

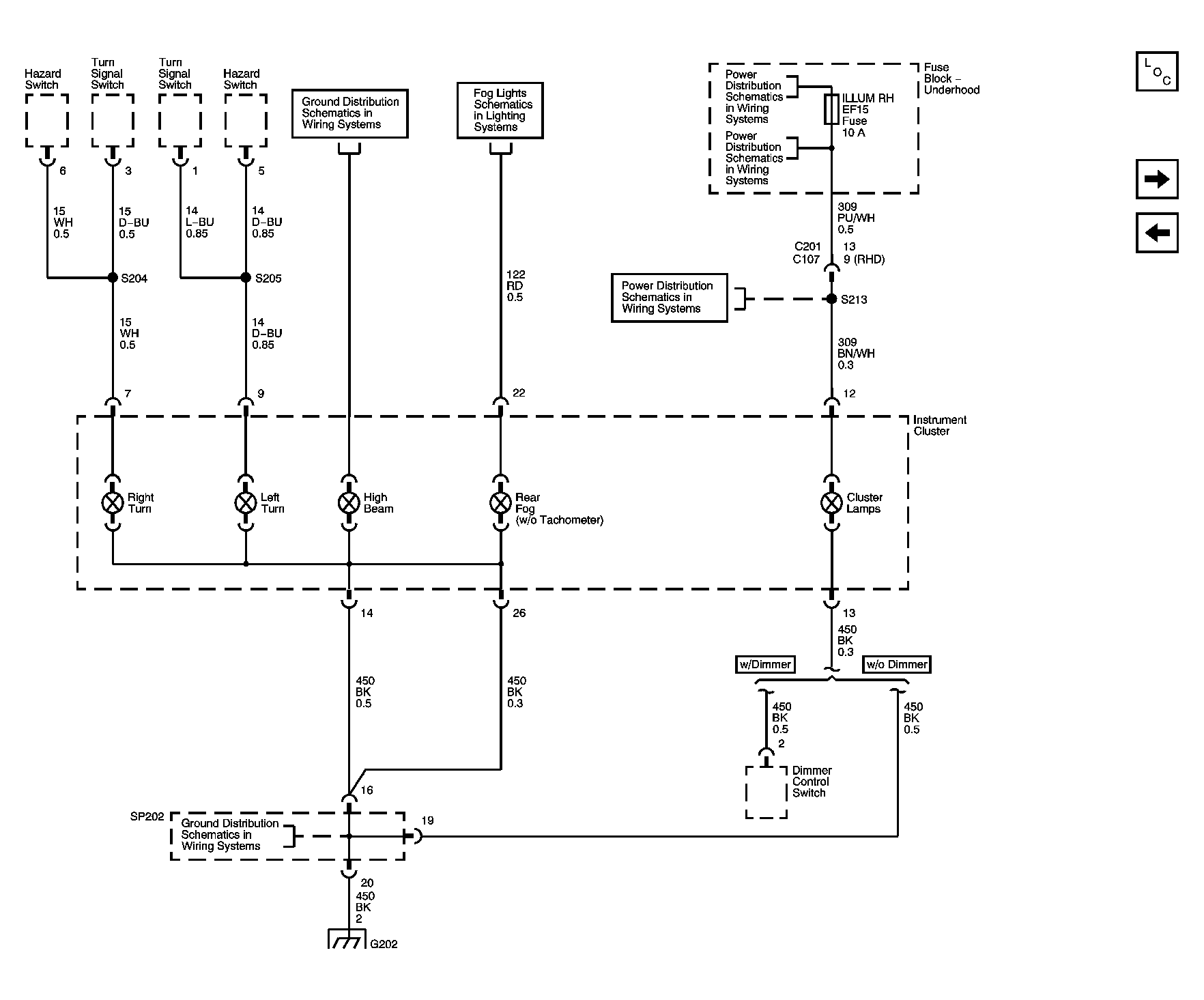

Fig 4: Indicator Lamps and Illumination Schematic

Courtesy of GENERAL MOTORS CORP.

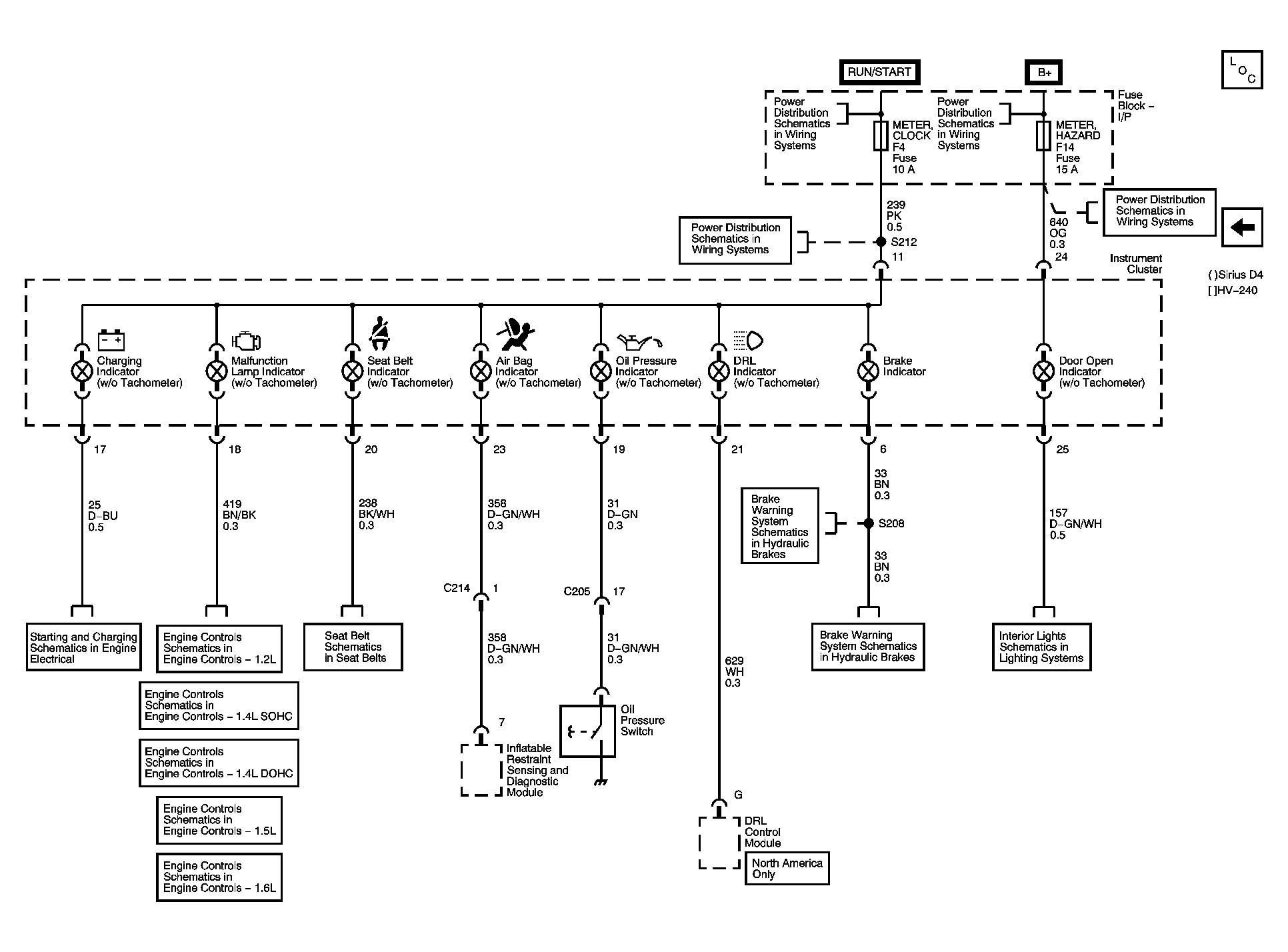

Fig 5: Warning Indicators W/O Tachometer Schematic

Courtesy of GENERAL MOTORS CORP.
