Repair Procedure

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

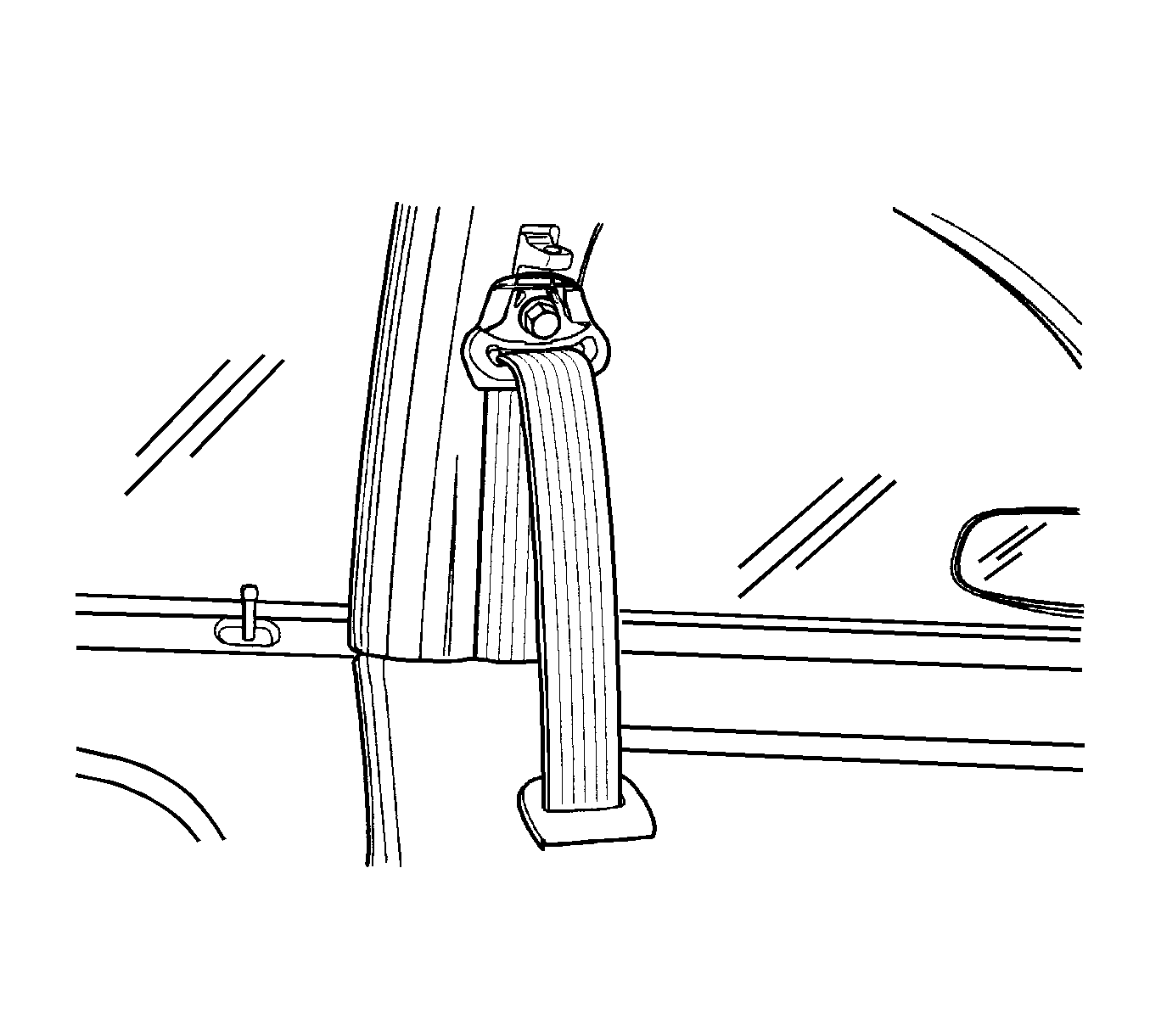

Fig 1: Seat Belt Anchor & Upper Center Pillar

Courtesy of GENERAL MOTORS CORP.

Remove the bolt and the seat belt anchor on the upper center pillar.

Fig 2: Seat Belt Anchor, Lower Center Pillar & Bolt

Courtesy of GENERAL MOTORS CORP.

Remove the lower center pillar trim panel. Refer to Trim Panel Replacement - Lower Center Pillar in Interior Trim.
Remove the bolt and the seat belt anchor on the lower center pillar.

Fig 3: Seat Belt Retractor & Bolt

Courtesy of GENERAL MOTORS CORP.

Remove the bolt and the seat belt retractor.
