Input Shaft Disassemble

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 22912-01 Universal Bearing Puller. See Special Tools and Equipment .

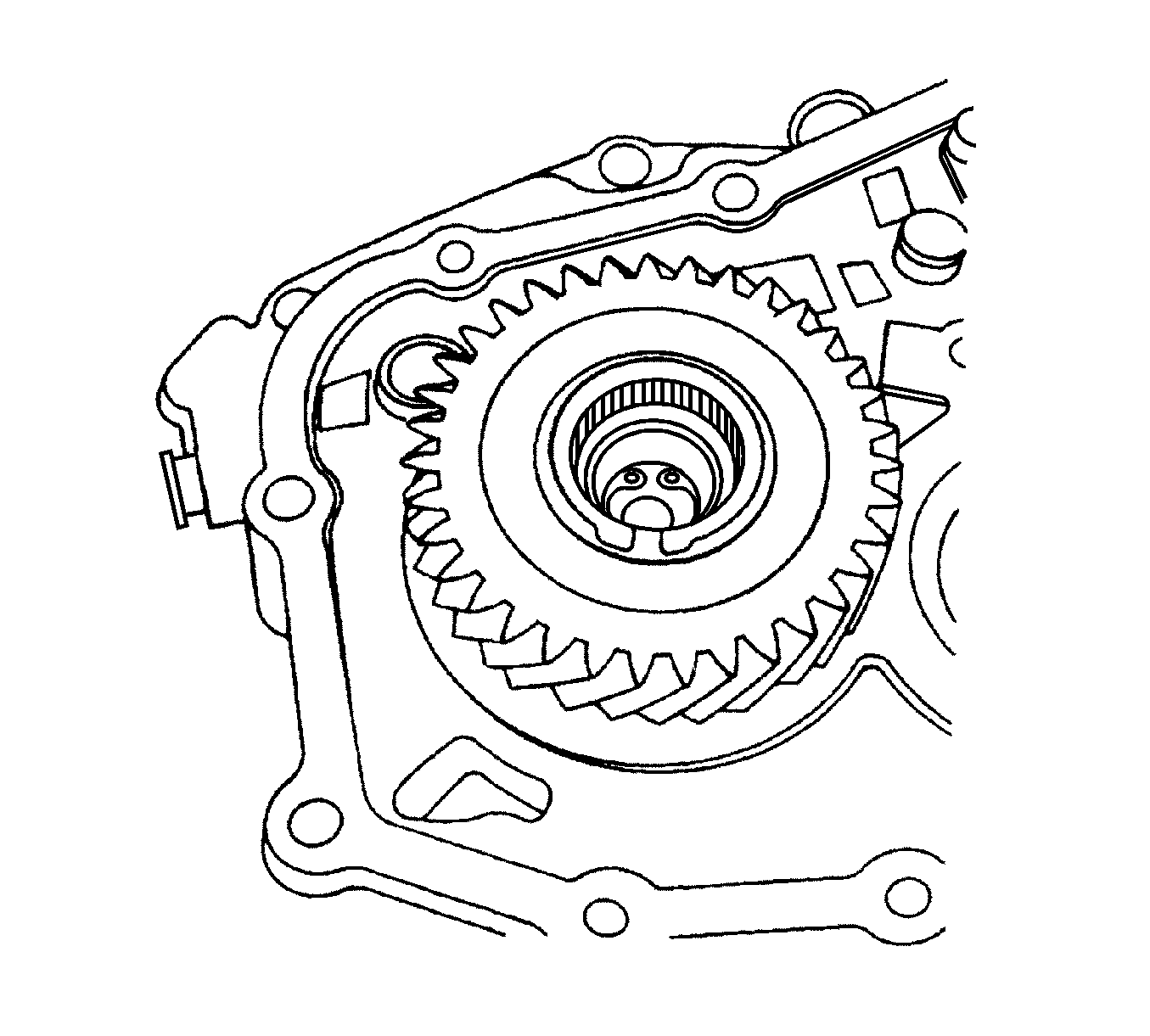

Fig 1: Detent Screw & Input Driveshaft

Courtesy of GENERAL MOTORS CORP.

Remove the detent screw at the end of the input driveshaft.

Fig 2: Snap Ring & Gear Cluster

Courtesy of GENERAL MOTORS CORP.

Remove the snap ring at the base of the gear cluster.

Fig 3: Input Driveshaft Cluster Gear & J 22912-01

Courtesy of GENERAL MOTORS CORP.

Press the input driveshaft from the input shaft cluster gear using the J 22912-01 (1). See Special Tools and Equipment .

Fig 4: Cluster Shaft Bearing & J 22912-01

Courtesy of GENERAL MOTORS CORP.

Remove the cluster shaft bearing from the input shaft gear cluster using theJ 22912-01 (1). See Special Tools and Equipment .
