Installation Procedure

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

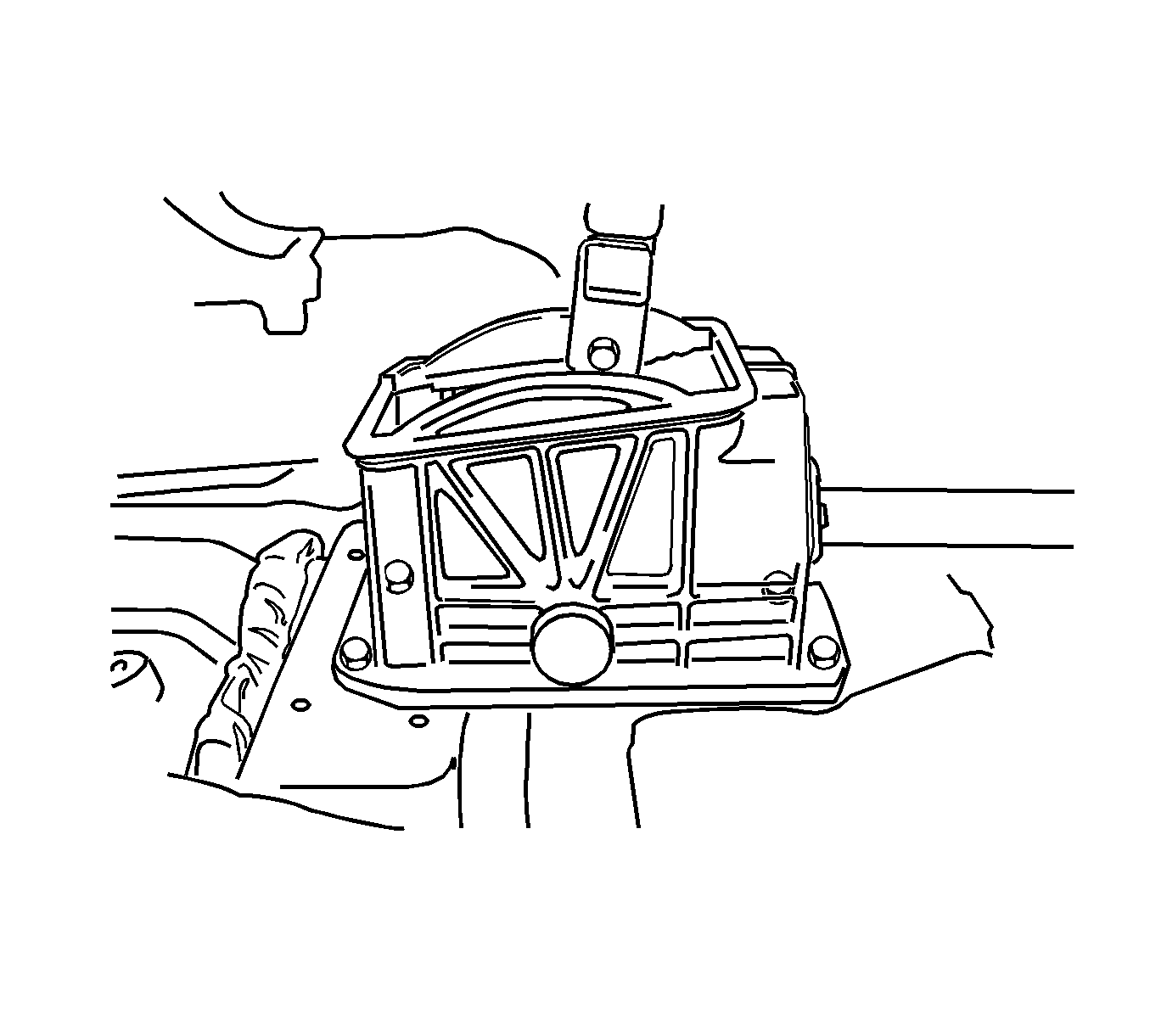

Fig 1: Gearshift Lever Housing

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the gearshift lever housing and the gearshift lever housing bolts
Tighten: Tighten the gearshift housing bolts to 7 N.m (62 lb in).
Adjust the shift linkage. Refer to Shift Linkage Adjustment .
Install the console.
Connect the negative battery cable.
