Installation Procedure

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

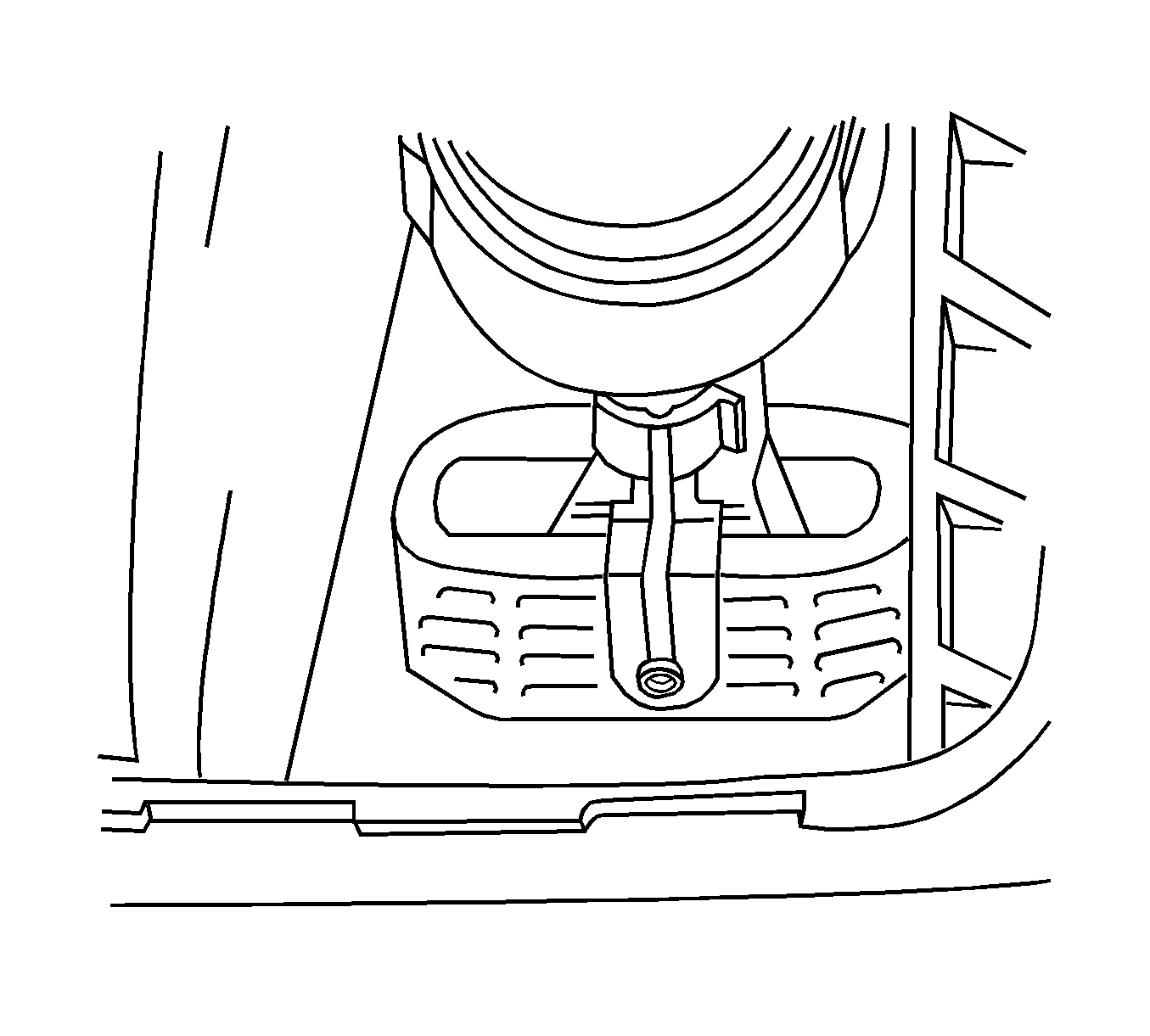

    Fig 1: Gearshift Lever Stop Clamp
    GM1248171Courtesy of GENERAL MOTORS CORP.
  1. Install the gearshift lever into the gearshift lever shaft.
  2. Install the gearshift lever stop clamp.
  3. Rotate the gearshift lever stop clamp to secure it.

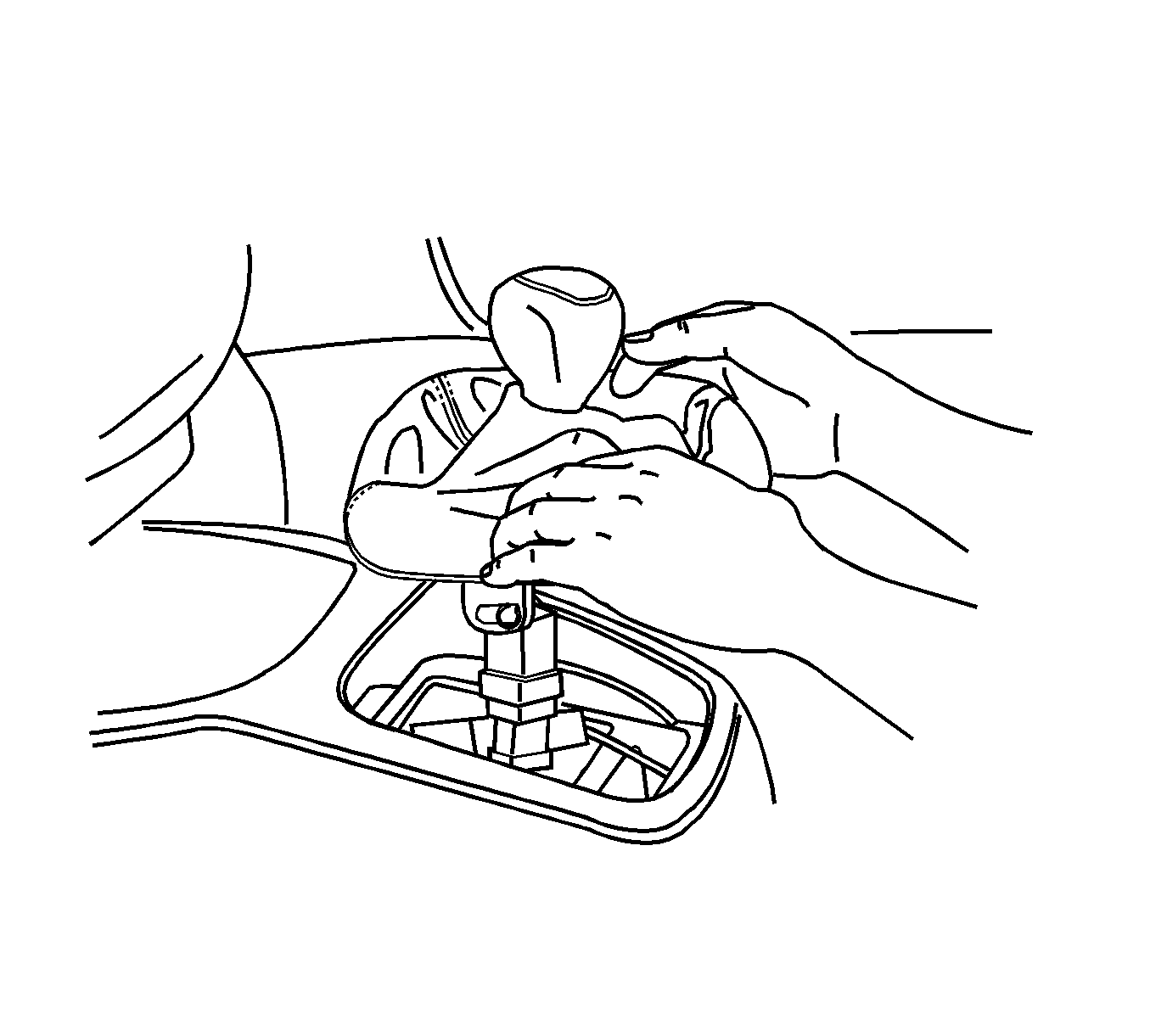

    4. Fig 2: Lifting Console Cover Upward
    GM1248170Courtesy of GENERAL MOTORS CORP.
  4. Lower the boot and connect it to the console cover.
  5. Connect the negative battery cable.
