Removal Procedure

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

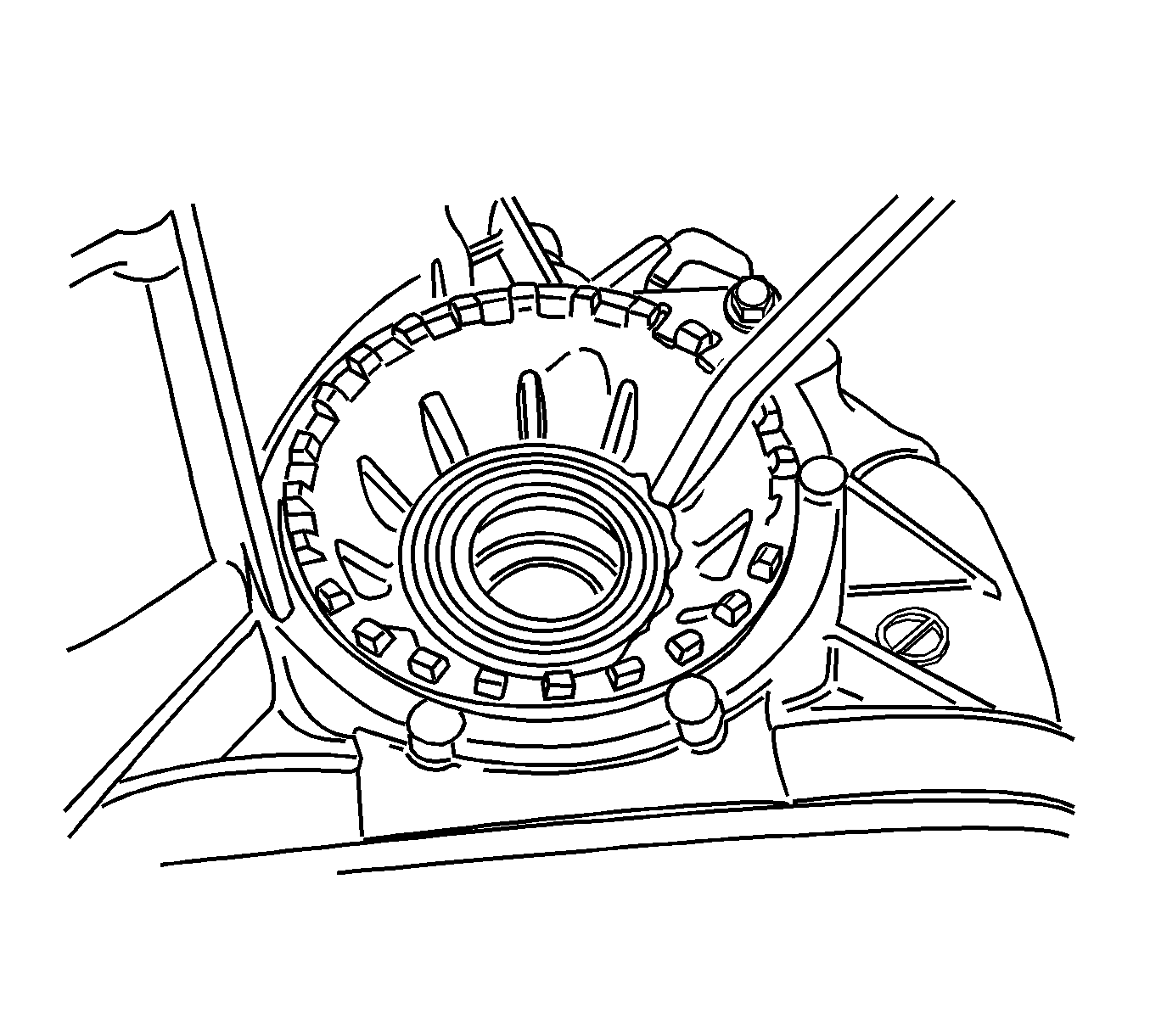

    Fig 1: Removing Axle Seal Using A Pry Bar
    GM1248180Courtesy of GENERAL MOTORS CORP.
    NOTE: While using a pry bar to remove the axle seal, use extreme care not to damage the bearing adjusting ring on the transmission case.
  1. Remove the drive axle from the transaxle. Refer to Inner Axle Shaft Replacement - Front Drive Axle in Front Drive Axle.
  2. Remove the drive axle seal by lifting the outer lip of the seal with a pry bar.
