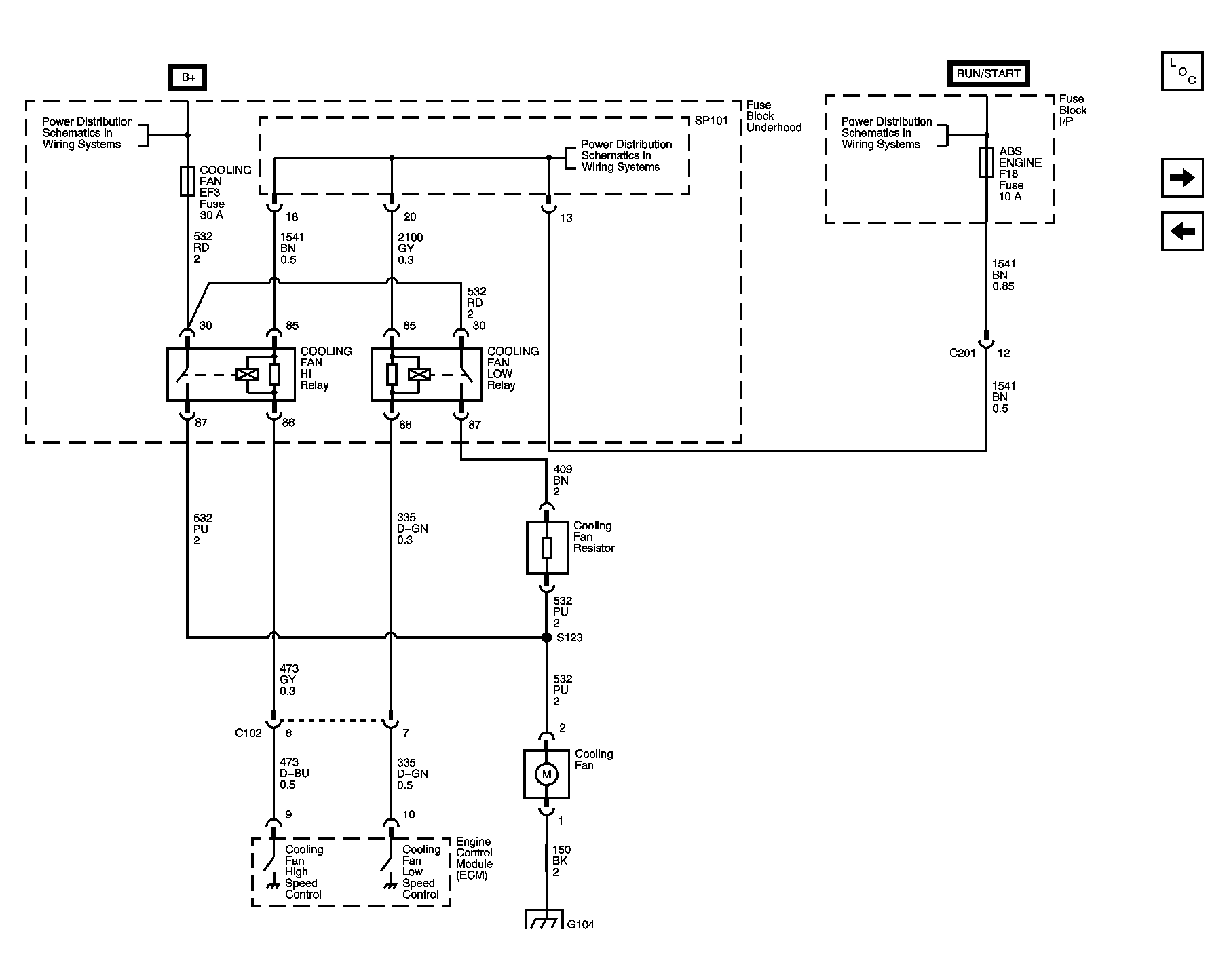

Fig 1: Single Cooling Fan - 1.2L Schematics
Courtesy of GENERAL MOTORS CORP.

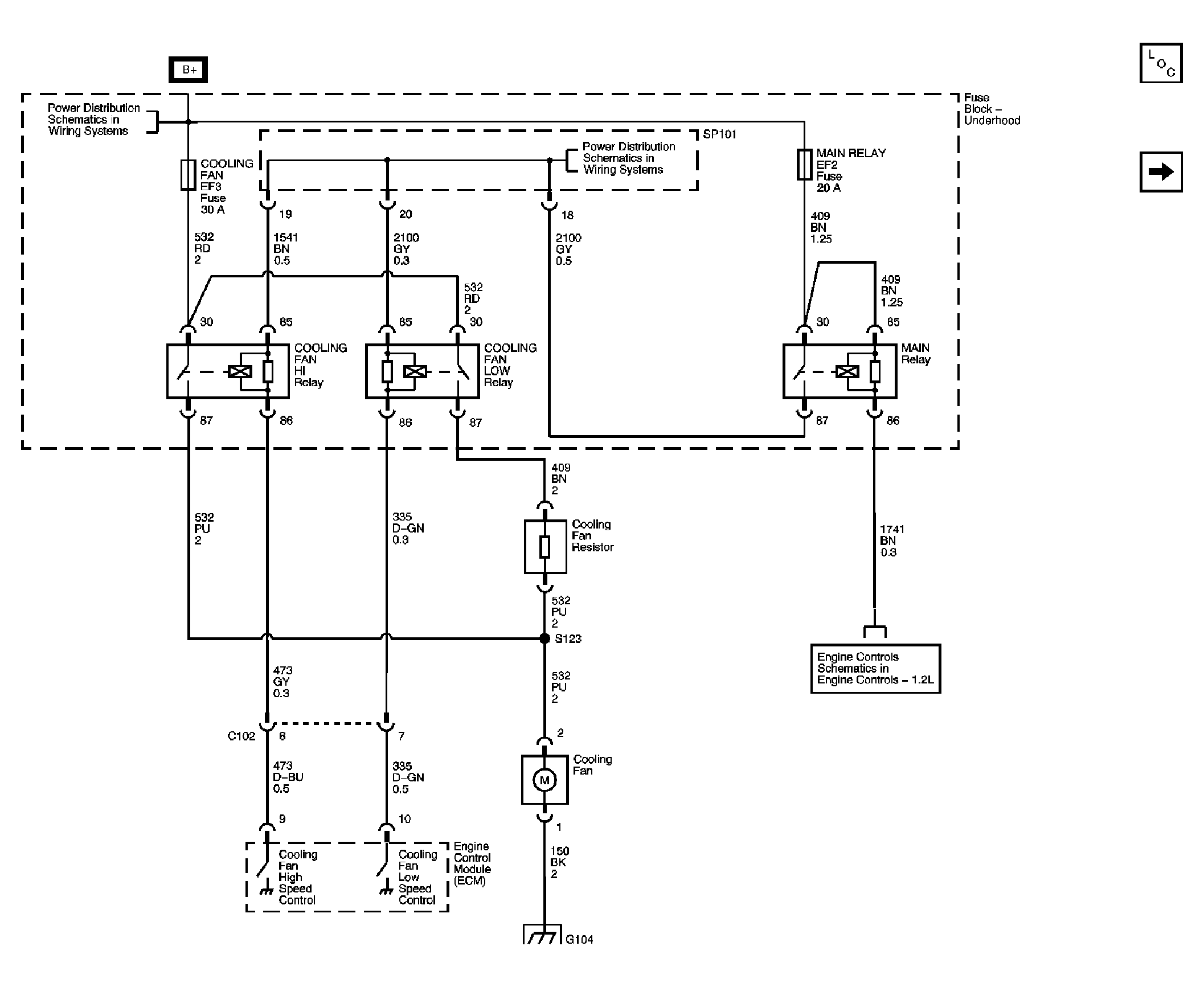

Fig 2: Single Cooling Fan - 1.4L SOHC, 1.5L Schematics
Courtesy of GENERAL MOTORS CORP.
Fig 3: Dual Cooling Fan - 1.4L DOHC, 1.6L Schematics
