Installation Procedure

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

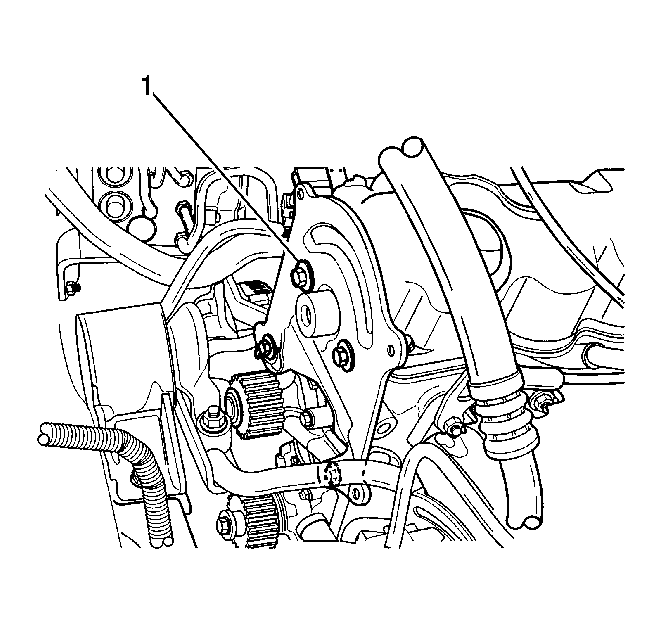

Fig 1: Installing Coolant Pump And Mounting Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the coolant pump with new gasket.
Install the coolant pump mounting bolts (1) and nuts.
Tighten: Tighten the bolts and the nuts to 10 N.m (89 lb in).

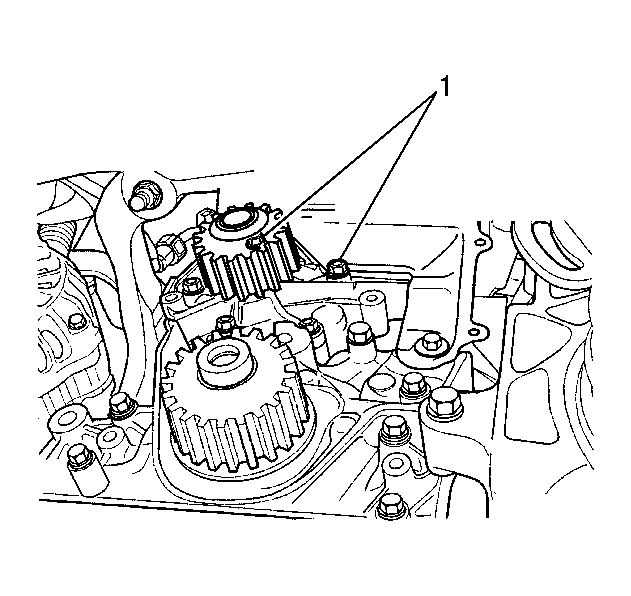

Fig 2: Installing Rear Timing Belt Cover

Courtesy of GENERAL MOTORS CORP.

Install the rear timing belt cover (1). Refer to Timing Belt Cover Replacement in Engine Mechanical 1.2L.
Fill the engine cooling system. Refer to Draining and Filling Cooling System .
Connect the negative battery cable.
