Brake Warning System Schematics (DBC7)

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

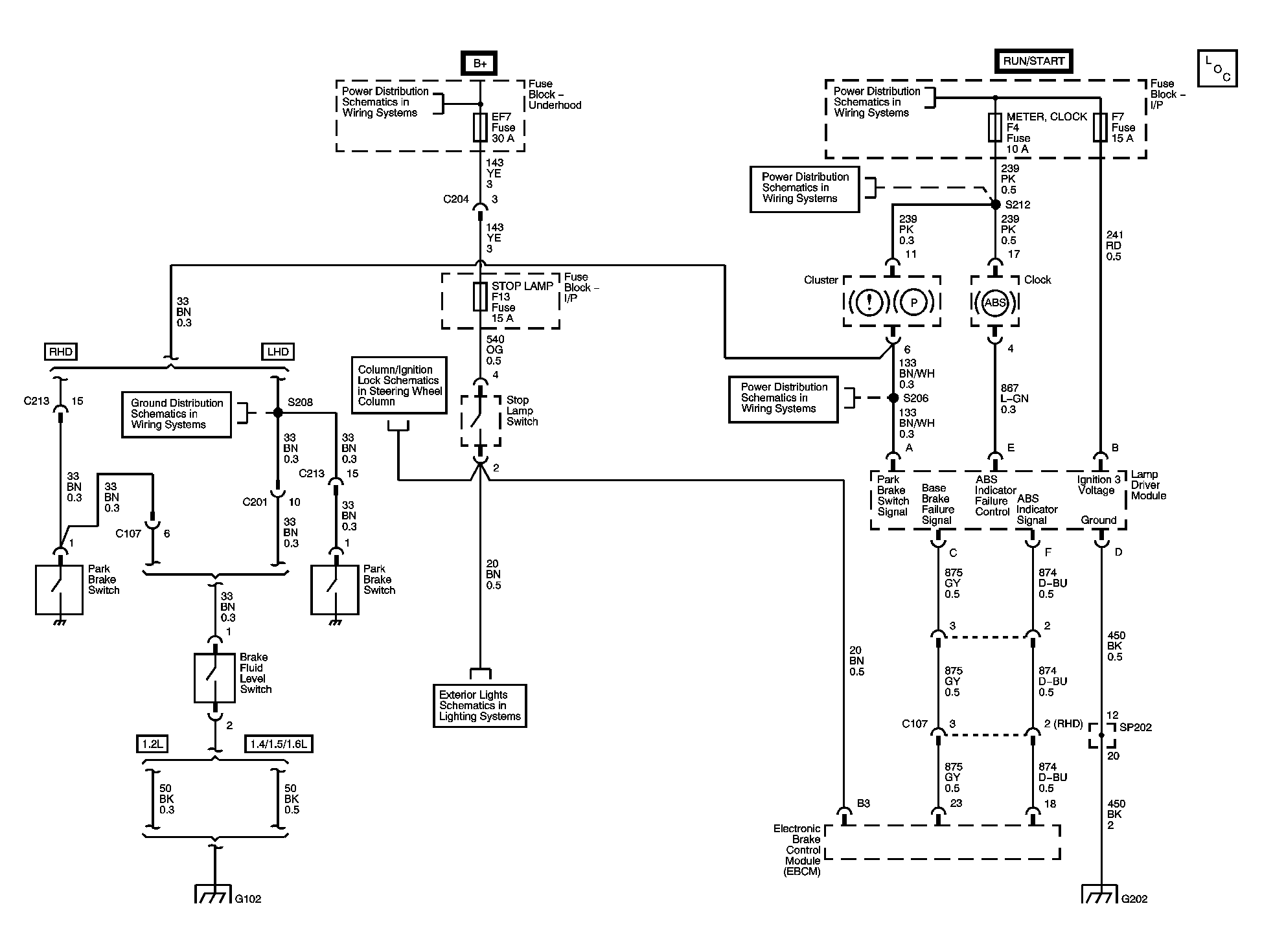

Fig 1: Brake Warning System Schematics (DBC7)
GM1257891Courtesy of GENERAL MOTORS CORP.
