Removal Procedure

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

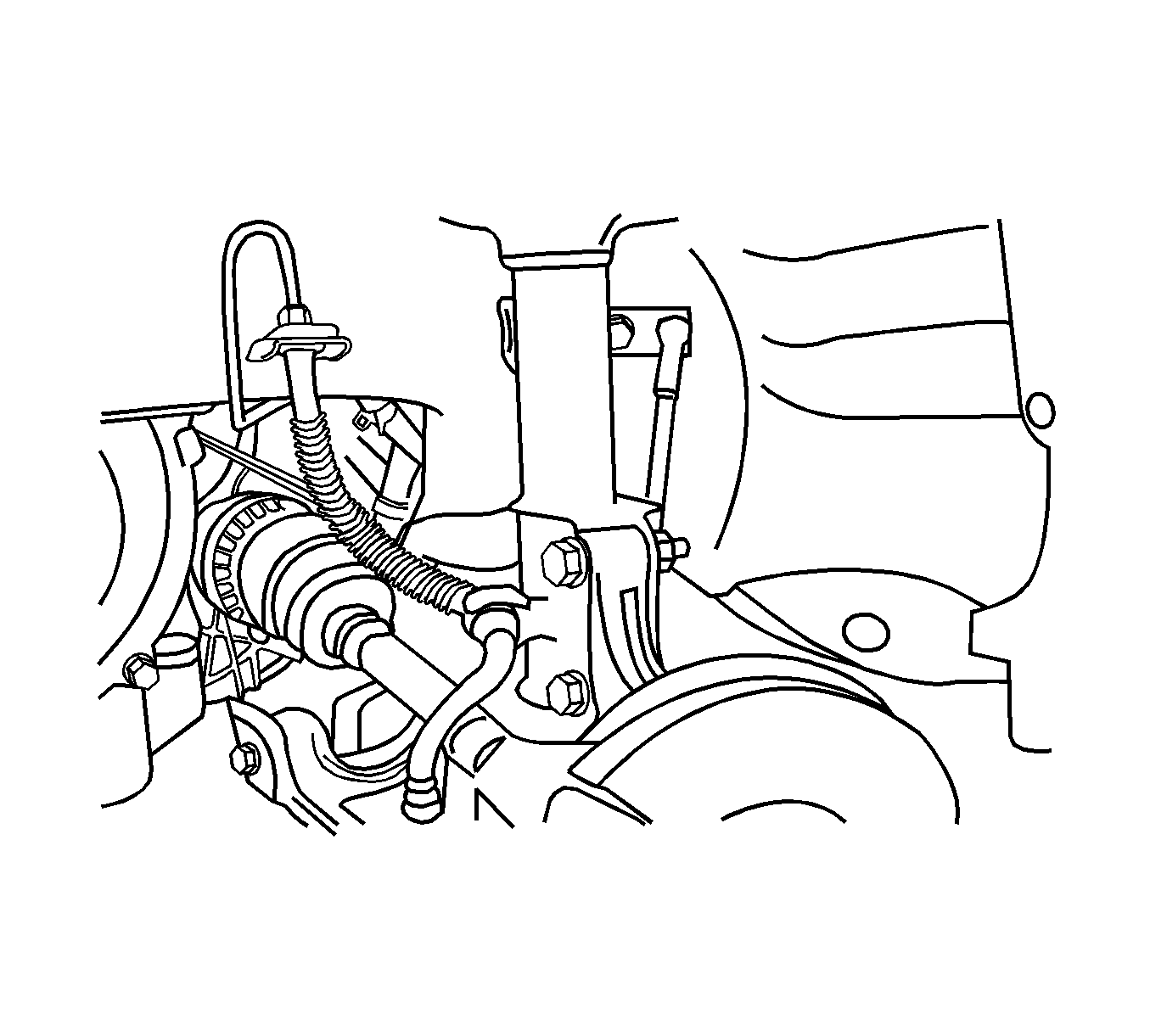

Fig 1: View of Wheelhousing Bracket Brake Hose and E-Ring Retainer

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Vehicle Lifting and Jacking Notice in Cautions and Notices.

Raise and support the vehicle.
Disconnect the brake line from the brake hose support bracket on the wheel housing.
Remove the E-ring retainer.
Remove the brake hose from the wheelhousing bracket.

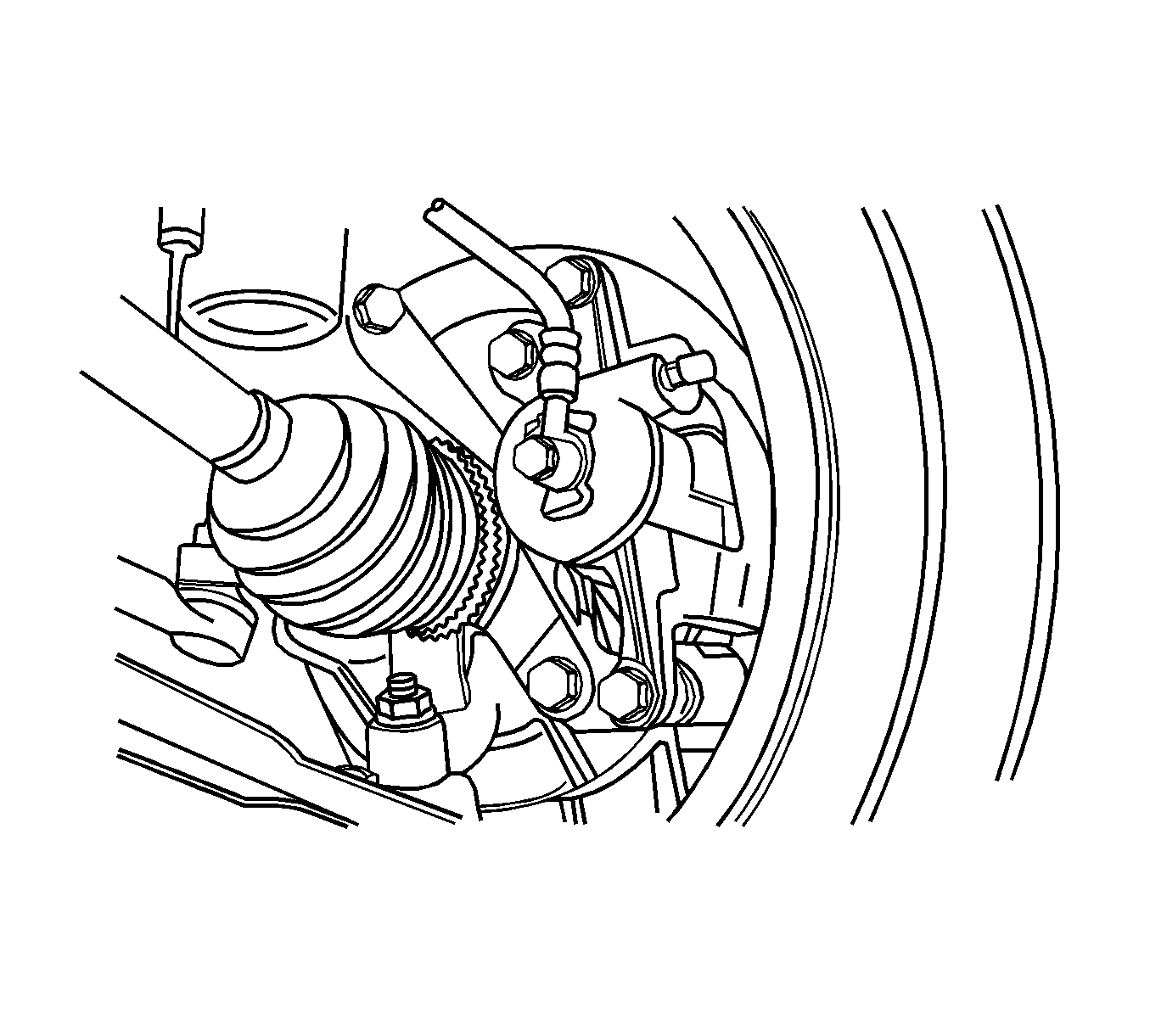

Fig 2: View of Brake Caliper, Seal Rings, and Brake Hose

Courtesy of GENERAL MOTORS CORP.

Remove the bolt from the brake caliper.
Remove the seal rings and the brake hose.
