Defogger Schematics

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

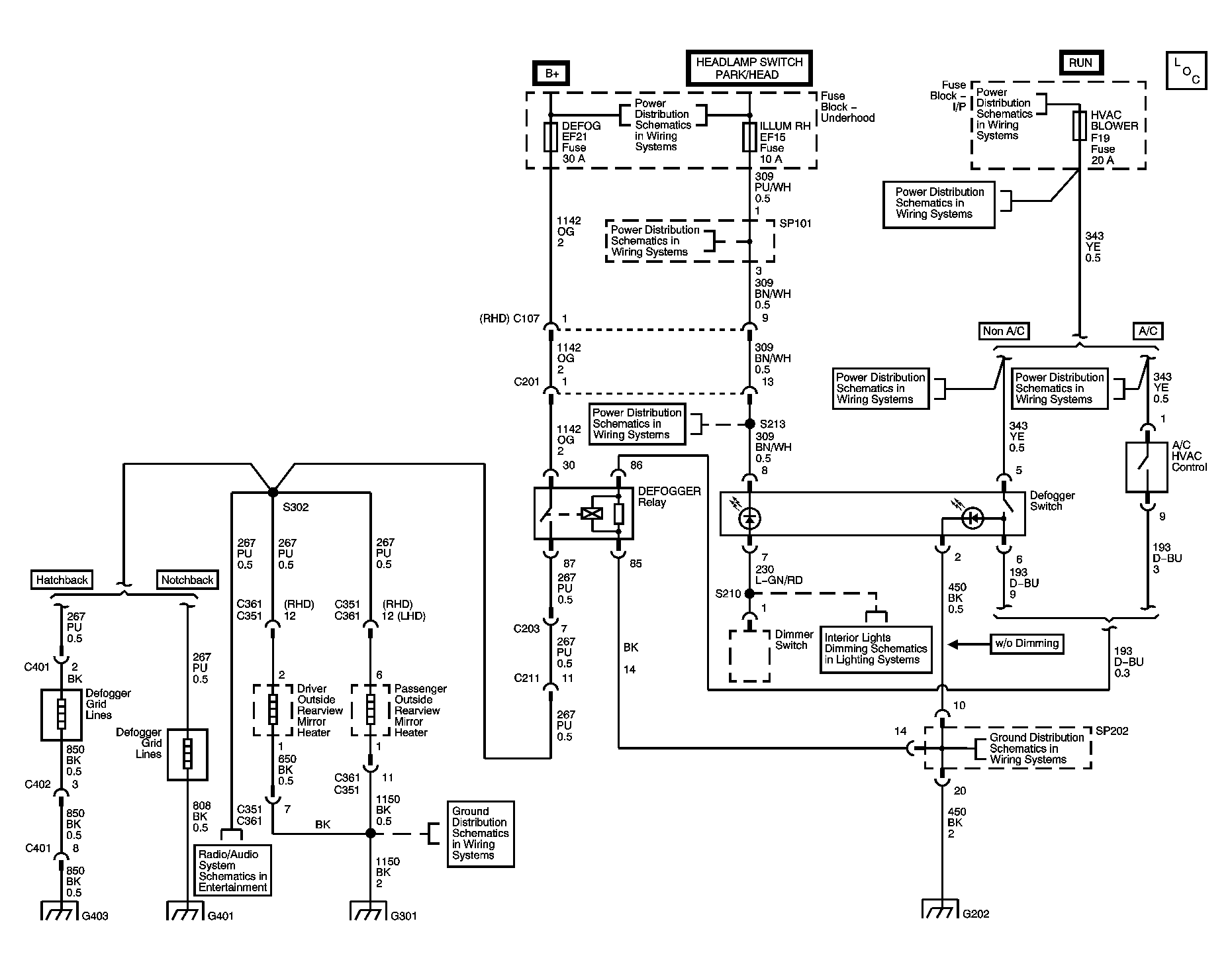

Fig 1: Rear Window Defogger and Heated Mirrors Schematics
GM1257921Courtesy of GENERAL MOTORS CORP.
