Removal Procedure

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

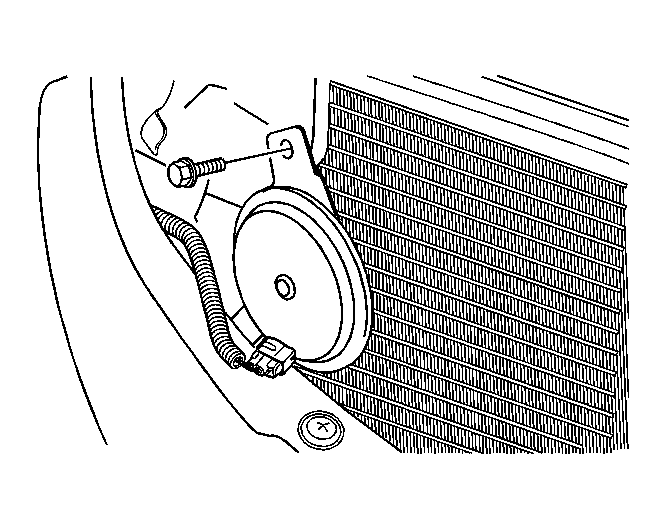

    Fig 1: View of Horn and Electrical Connector
    GM1248413Courtesy of GENERAL MOTORS CORP.
    CAUTION: Battery Disconnect Caution
  1. Disconnect the negative battery cable.
  2. Remove the bolt from the horn.
  3. Disconnect the electrical connector.
  4. Remove the horn.
