Floor Pan
WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

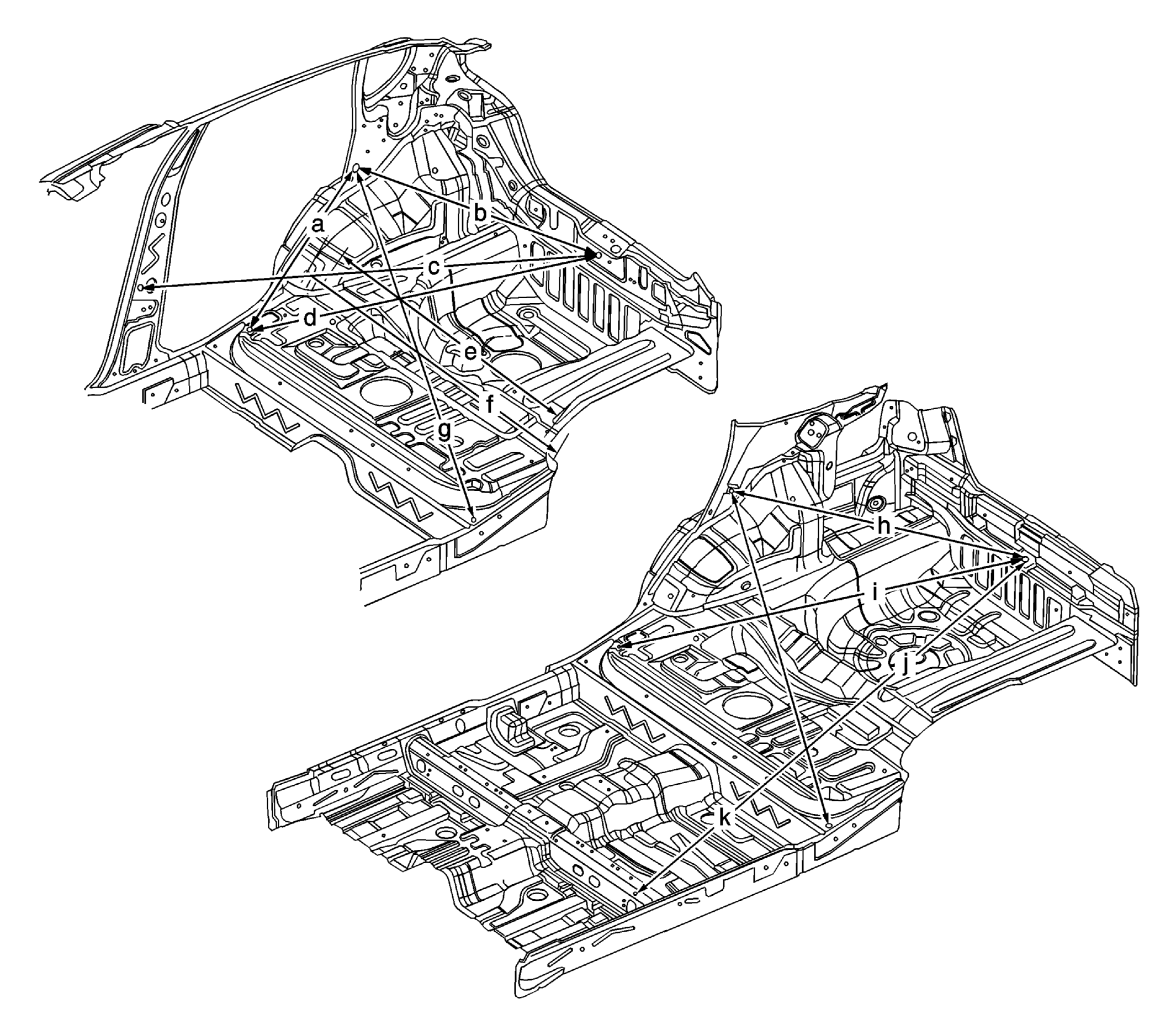

Dimensions of Floor Pan Body
| Points | Dimensions (mm) | Dimensions (in) |
|---|---|---|
|
IMPORTANT:
Reference dimensions show the distance between the center of positioning holes shown in illustrations.
|
||
| A | 654 | 25.75 |
| B | 855.6 | 33.66 |
| C | 1,557.5 | 61.30 |
| D | 1,170 | 46.06 |
| E | 1,086.6 | 42.76 |
| F | 1,282 | 50.47 |
| G | 1,529.4 | 60.20 |
| H | 1,051.7 | 41.38 |
| I | 1,462 | 57.56 |
| J | 1,544 | 60.79 |
| K | 2,295 | 90.35 |
