Engine Compartment
WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

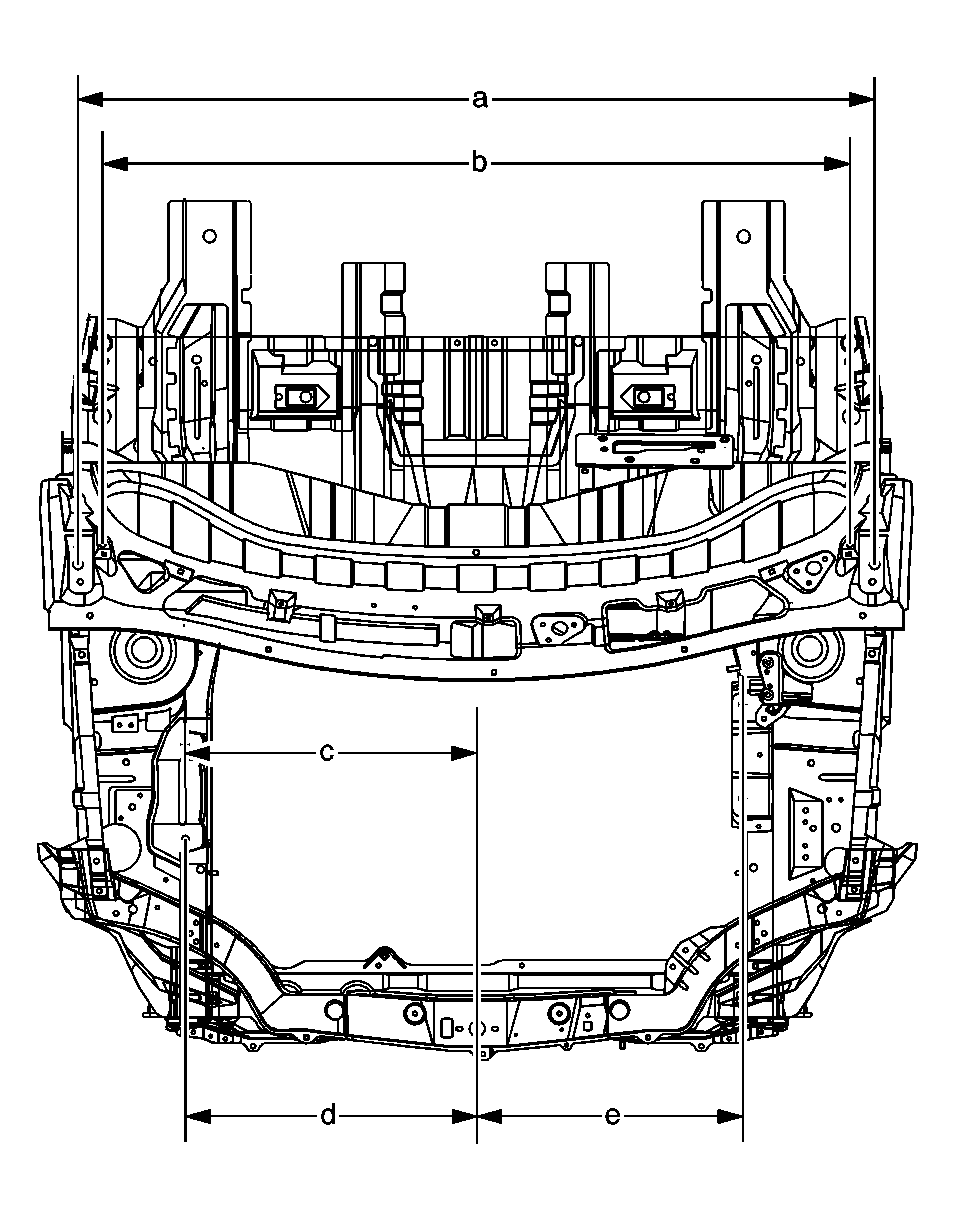

Courtesy of GENERAL MOTORS CORP. Dimensions of Engine Compartment Body
| Points |
Dimensions (mm) |
Dimensions (in) |
|
IMPORTANT:
Reference dimensions show the distance between the center of positioning holes shown in illustrations.
|
| A |
1,340 |
52.76 |
| B |
1,257 |
49.49 |
| C |
484.5 |
19.01 |
| D |
484.0 |
19.01 |
| E |
441.6 |
17.36 |
