SP201 (1.4L, 1.5L, 1.6L)
WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

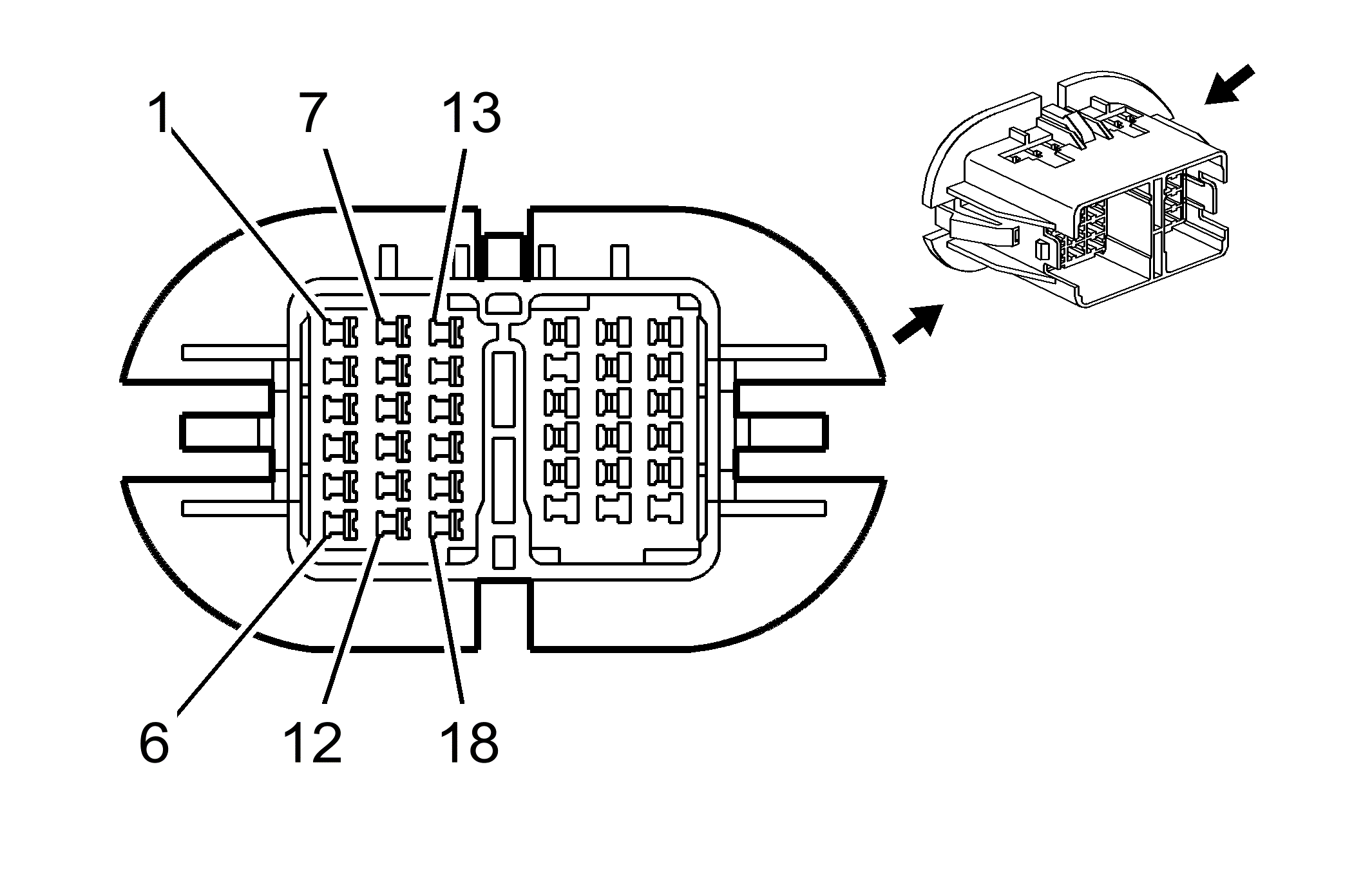

SP201 (1.4L, 1.5L, 1.6L) Connector End Views
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | PK | 39 | Ignition 1 Voltage |
| 2 | - | - | Not Used |
| 3 | BN | 1733 | Ignition 1 Voltage |
| 4 | BN | 1733 | Ignition 1 Voltage |
| 5 | BN | 1733 | Ignition 1 Voltage |
| 6 | - | - | Not Used |
| 7 | PK | 539 | Ignition 1 Voltage |
| 8 | PK | 539 | Ignition 1 Voltage |
| 9 | PK | 539 | Ignition 1 Voltage |
| 10 | PK | 539 | Ignition 1 Voltage |
| 11 | PK | 539 | Ignition 1 Voltage |
| 12 | - | - | Not Used |
| 13 | PK | 539 | Ignition 1 Voltage |
| 14 | BN | 1733 | Ignition 1 Voltage |
| 15 | BN | 1733 | Ignition 1 Voltage |
| 16 | BN | 1733 | Ignition 1 Voltage |
| 17 | BN | 1733 | Ignition 1 Voltage |
| 18 | - | - | Not Used |
