SP101 (1.4L, 1.5L, 1.6L)
WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

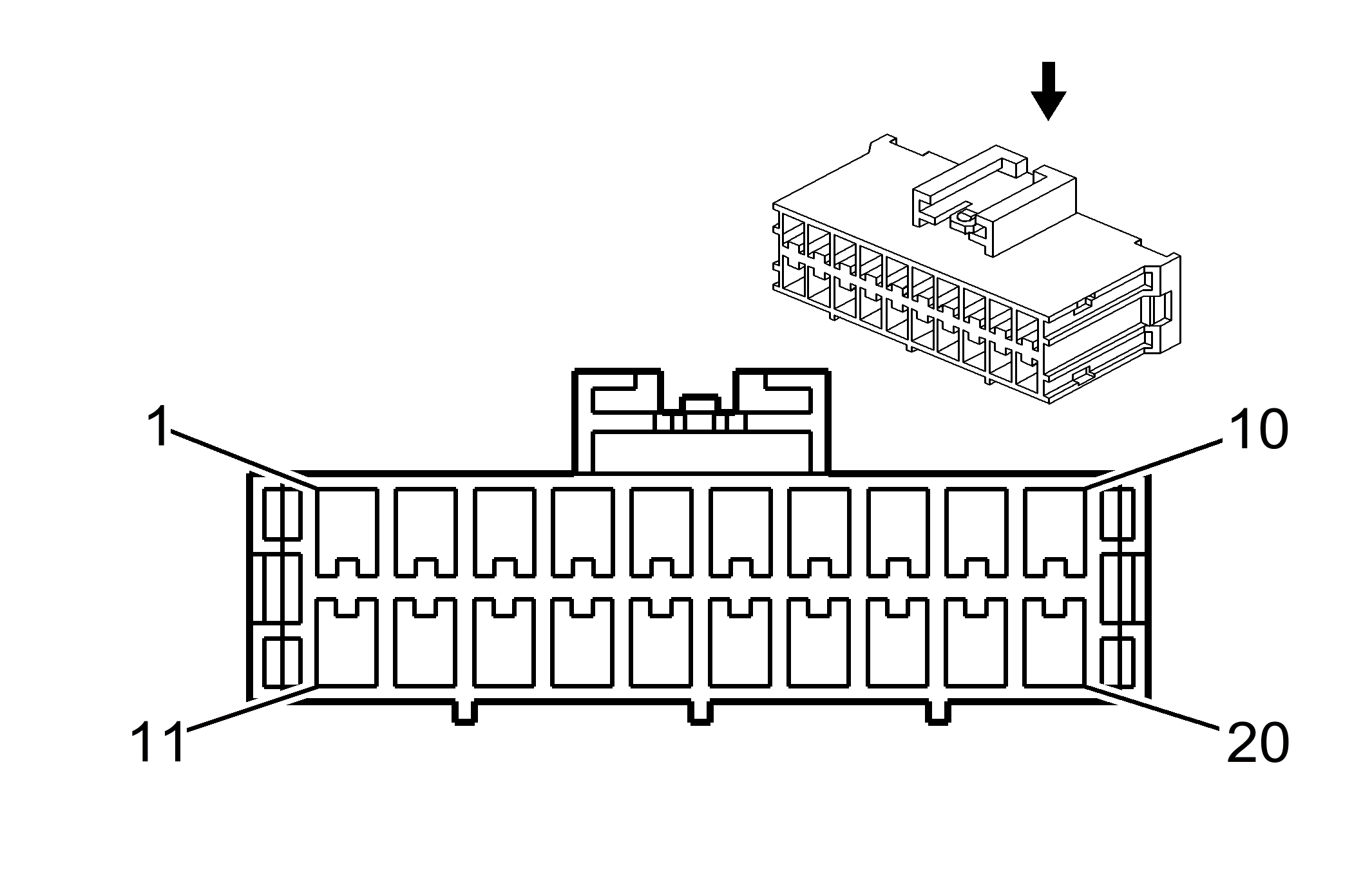

SP101 (1.4L, 1.5L, 1.6L) Connector End Views
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | PU/WH | 309 | Right Park Lamp Supply Voltage |
| 2 | PU/WH | 309 | Right Park Lamp Supply Voltage |
| 3 | PU/WH | 309 | Right Park Lamp Supply Voltage |
| 4 | BN/WH | 309 | Right Park Lamp Supply Voltage (w/Headlamp Leveling) |
| 5 | BN/WH | 309 | Right Park Lamp Supply Voltage |
| 6 | PU | 709 | Left Park Lamp Supply Voltage |
| 7 | PU | 709 | Left Park Lamp Supply Voltage |
| 8 | PU/WH | 709 | Left Park Lamp Supply Voltage (w/Headlamp Leveling) |
| 9 | PU/WH | 709 | Left Park Lamp Supply Voltage |
| 10 | - | - | Not Used |
| 11 | RD/YE | 241 | Ignition 3 Voltage (w/ABS) |
| 12 | D-GN/YE | 2100 | Ignition 3 Voltage (w/Power Windows) |
| 13 | BN | 1541 | Ignition 1 Voltage |
| 14 | L-GN | 459 | Ignition 3 Voltage (w/A/C) |
| 15 | RD/YE | 241 | Ignition 3 Voltage (w/ABS) |
| 16 | BN | 1541 | Ignition 1 Voltage |
| 17 | D-GN/YE | 2100 | Ignition 3 Voltage |
| 18 | D-GN/YE | 2100 | Ignition 3 Voltage |
| 19 | BN | 1541 | Ignition 1 Voltage |
| 20 | D-GN/YE | 2100 | Ignition 3 Voltage |
