C402 (Hatchback)

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

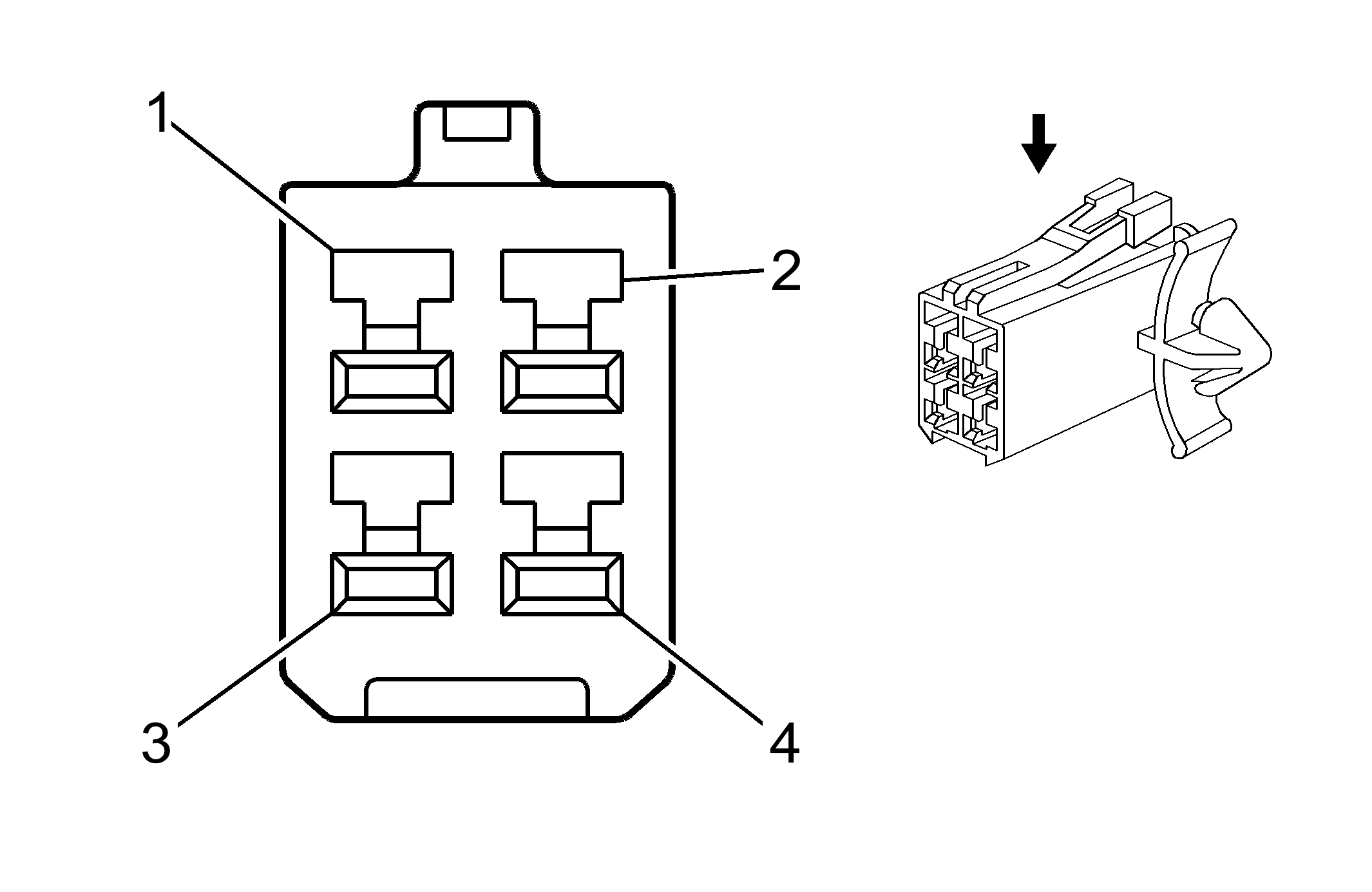

C402 Tailgate Harness to Tailgate Extension Harness (Hatchback) Connector End Views

GM1468553Courtesy of GENERAL MOTORS CORP.
GM1467061Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 630680
  • 4-Way 090-II M Series (WH)
 Connector Part Information
  • KET MG 620160
  • 4-Way M 090 (2.3 mm) Series (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 PU 709 Left Park Lamp Supply Voltage 1 PU 709 Left Park Lamp Supply Voltage
2 OG/BK 737 Rear Compartment Lid Ajar Switch Signal 2 OG/BK 737 Rear Compartment Lid Ajar Switch Signal
3 BK 850 Ground 3 BK 850 Ground
4 D-BU 49 Tamper Switch Signal 4 D-BU 49 Tamper Switch Signal
