Inline Harness Connectors: C204

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
C204 Front Harness to I/P Harness Connector End Views

GM1468378Courtesy of GENERAL MOTORS CORP.

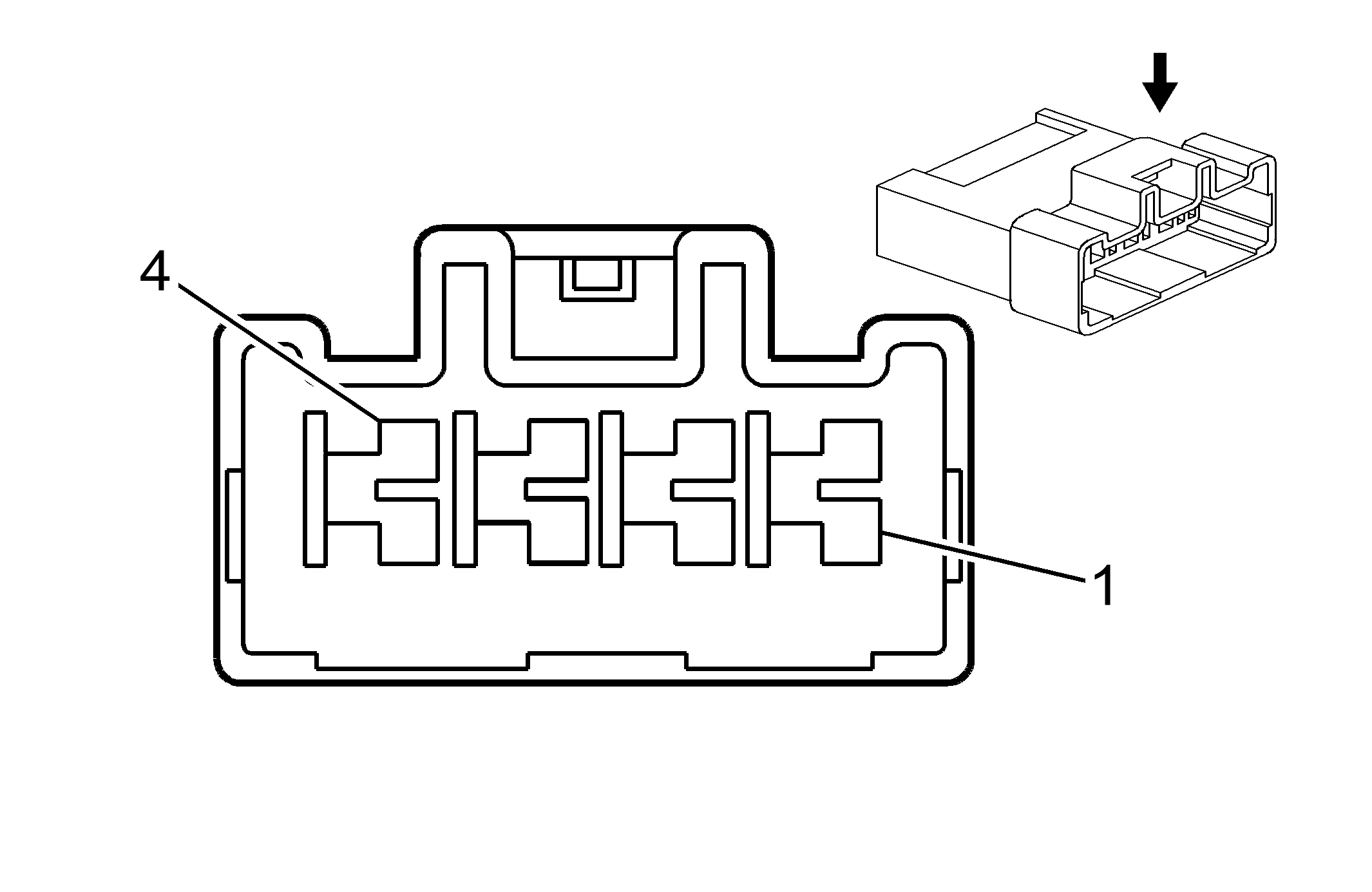

GM1467103Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651926
  • 4-Way F 312-II Series (WH)
 Connector Part Information
  • KET MG 641928
  • 4-Way M 312-II Series (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 OG/BK 142 Battery Positive Voltage 1 OG 142 Battery Positive Voltage
2 RD/BK 141 Ignition 3 Voltage 2 RD/BK 141 Ignition 3 Voltage
3 YE 143 Accessory Voltage 3 YE 143 Accessory Voltage
4 RD/BK 141 Ignition 3 Voltage 4 RD/BK 141 Ignition 3 Voltage
