Inline Harness Connectors: C202
WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

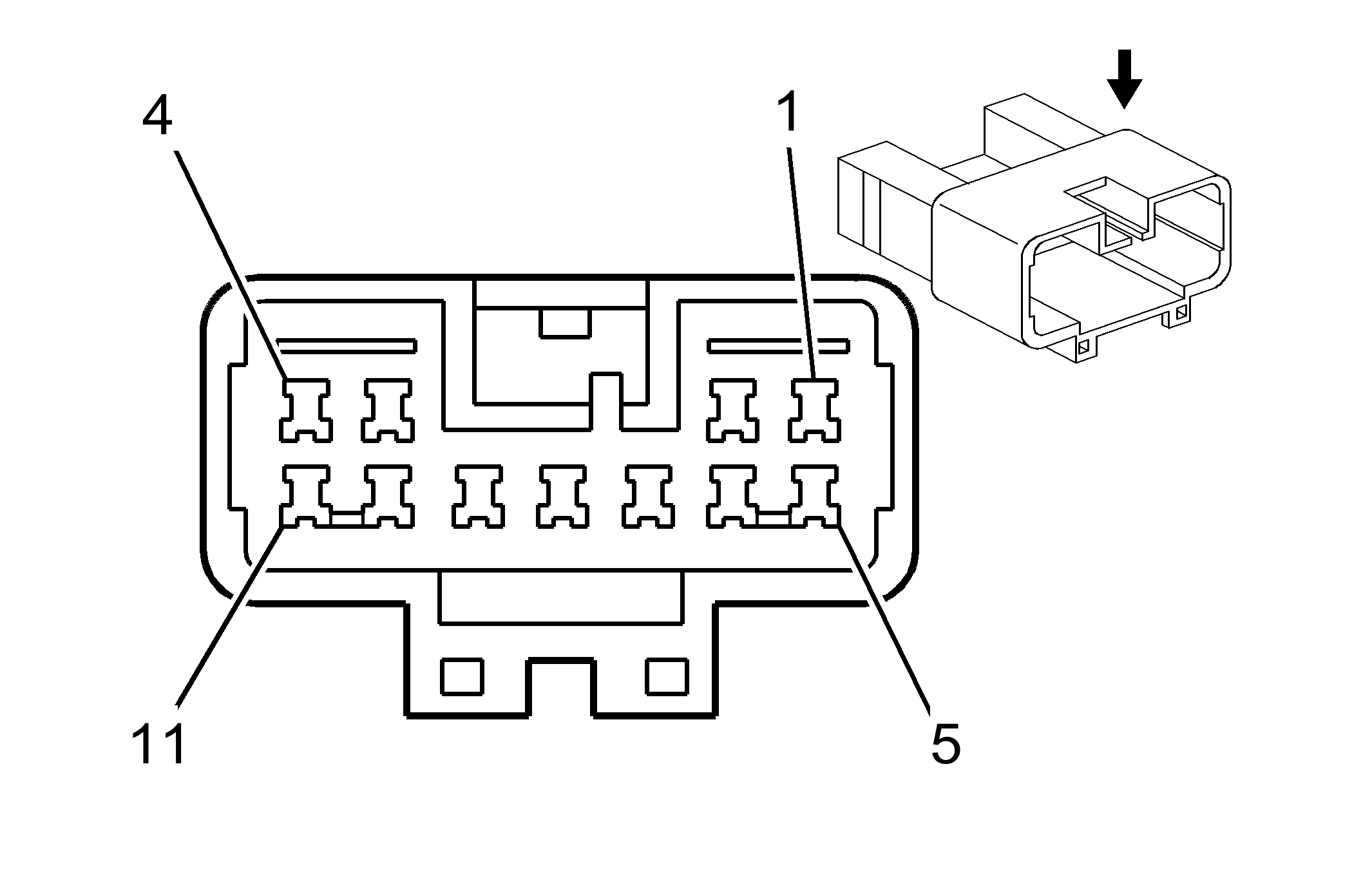

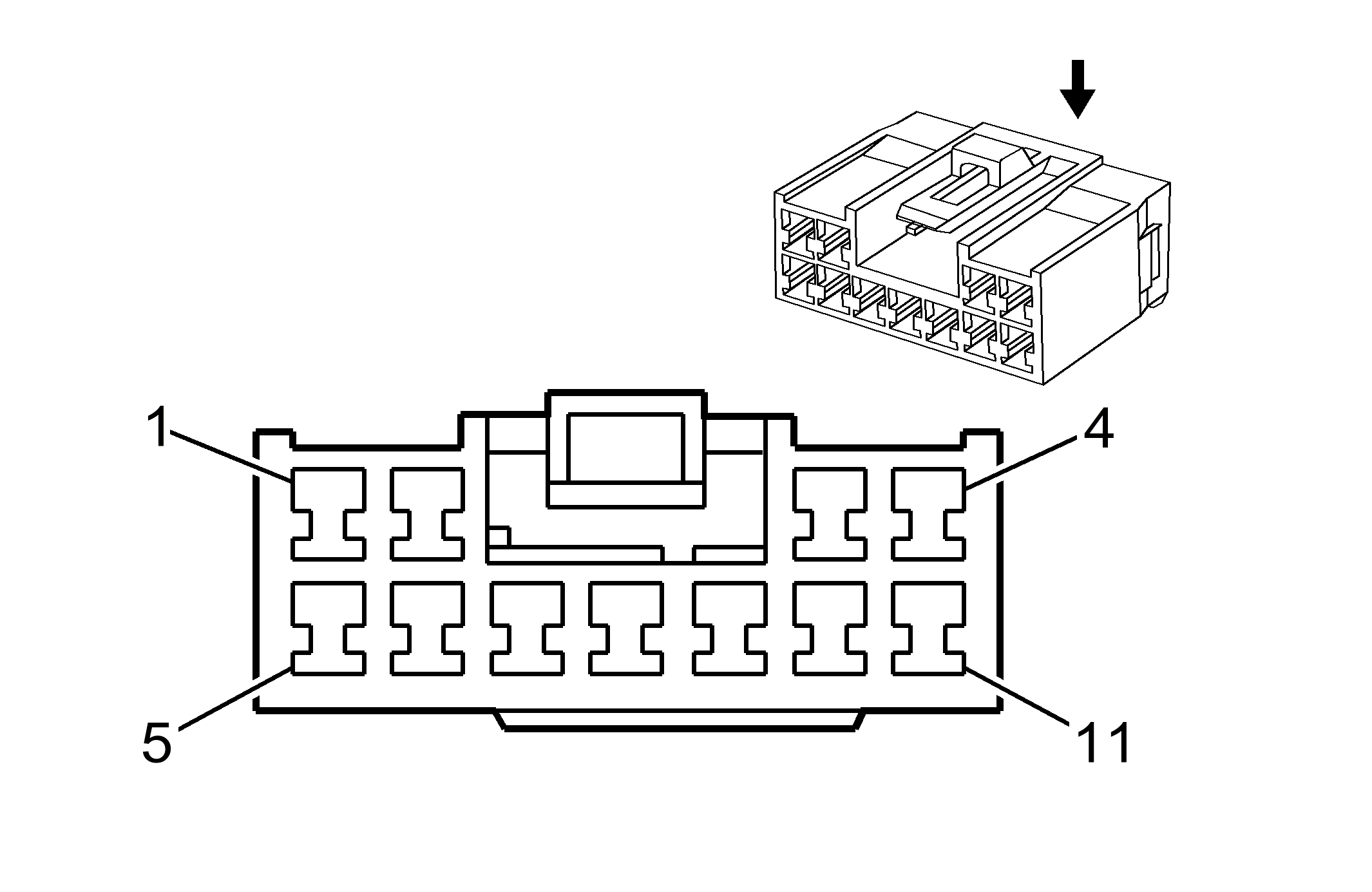

C202 TCM Harness to I/P Harness Connector End Views
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| 1 | BN | 323 | Park/Neutral Position (PNP) Switch Park Signal | 1 | BN | 323 | Park/Neutral Position (PNP) Switch Park Signal |
| 2-3 | - | - | Not Used | 2-3 | - | - | Not Used |
| 4 | D-GN/WH | 1135 | Hold Mode Signal | 4 | D-GN/WH | 1135 | Hold Mode Signal |
| 5 | YE | 1481 | Hold Mode Indicator Control | 5 | YE | 1481 | Hold Mode Indicator Control |
| 6 | - | - | Not Used | 6 | - | - | Not Used |
| 7 | L-BU | 20 | Stop Lamp Supply Voltage/Stop Lamp Switch Signal | 7 | BN | 20 | Stop Lamp Supply Voltage/Stop Lamp Switch Signal |
| 8 | D-BU | 2051 | Serial Data | 8 | BK/WH | 2051 | Serial Data |
| 9 | D-GN/WH | 817 | Vehicle Speed Signal | 9 | D-GN/WH | 817 | Vehicle Speed Signal |
| D-GN/WH | 817 | Vehicle Speed Signal | |||||
| 10 | PK | 839 | Ignition 1 Voltage | 10 | PK | 839 | Ignition 1 Voltage |
| 11 | OG | 440 | Battery Positive Voltage | 11 | OG | 440 | Battery Positive Voltage |
