Installation Procedure

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

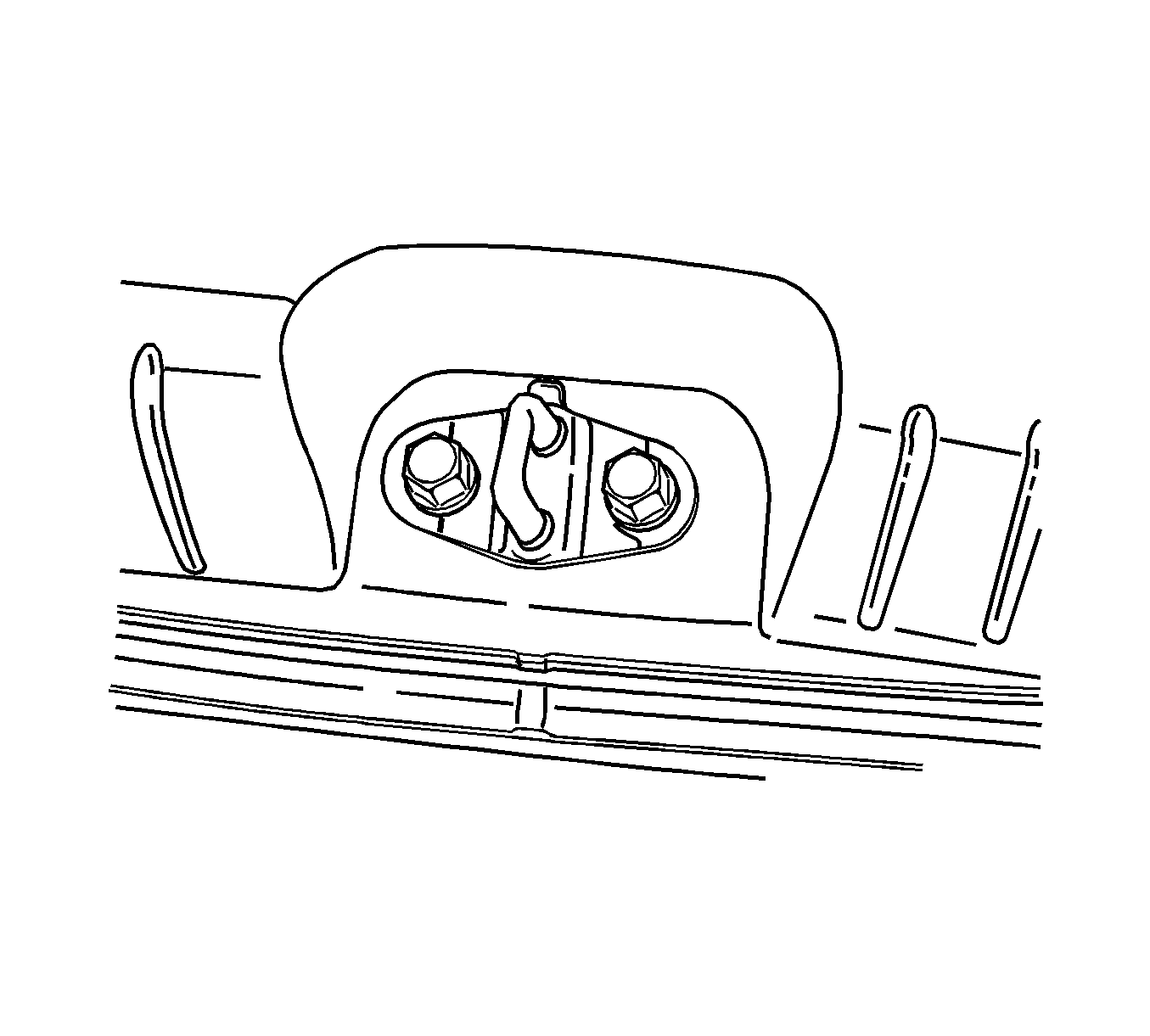

    Fig 1: View of Lock Striker
    GM1252087Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the lock striker with the bolts.

    Tighten:  Tighten the luggage compartment lock striker bolts to 8 N.m (71 lb in).

  2. Instal the luggage compartment rear trim panel. Refer to Compartment Trim Panel Replacement - Rear in Interior Trim.
