Removal Procedure

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

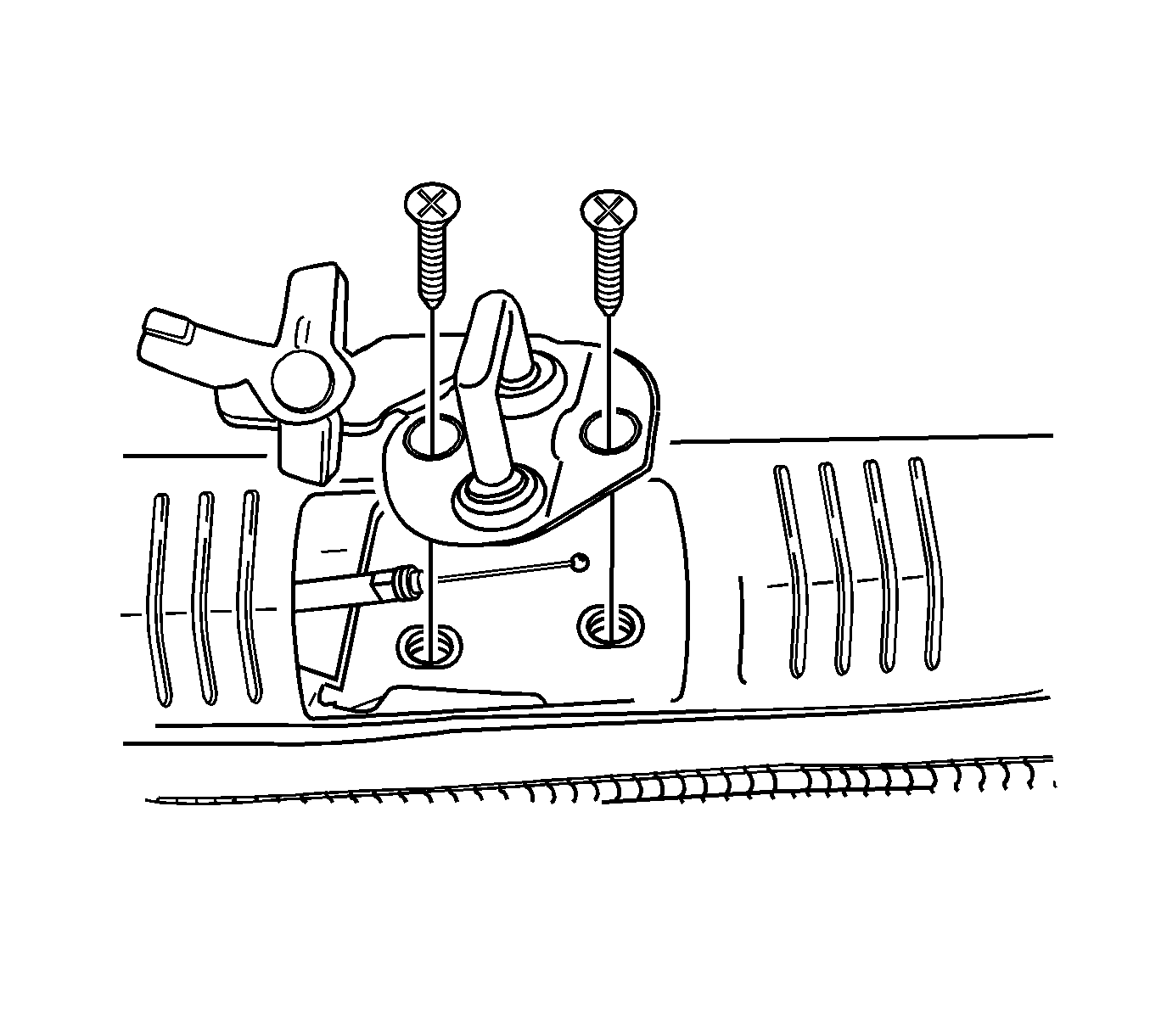

    Fig 1: View of Cable From Lock Striker
    GM1252083Courtesy of GENERAL MOTORS CORP.
  1. Open the hatchback door.
  2. Remove the luggage compartment rear trim panel. Refer to Compartment Trim Panel Replacement - Rear in Interior Trim.
  3. Remove the screws that secure the lock striker.
  4. Disconnect the cable from the lock striker.
