Installation Procedure

WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

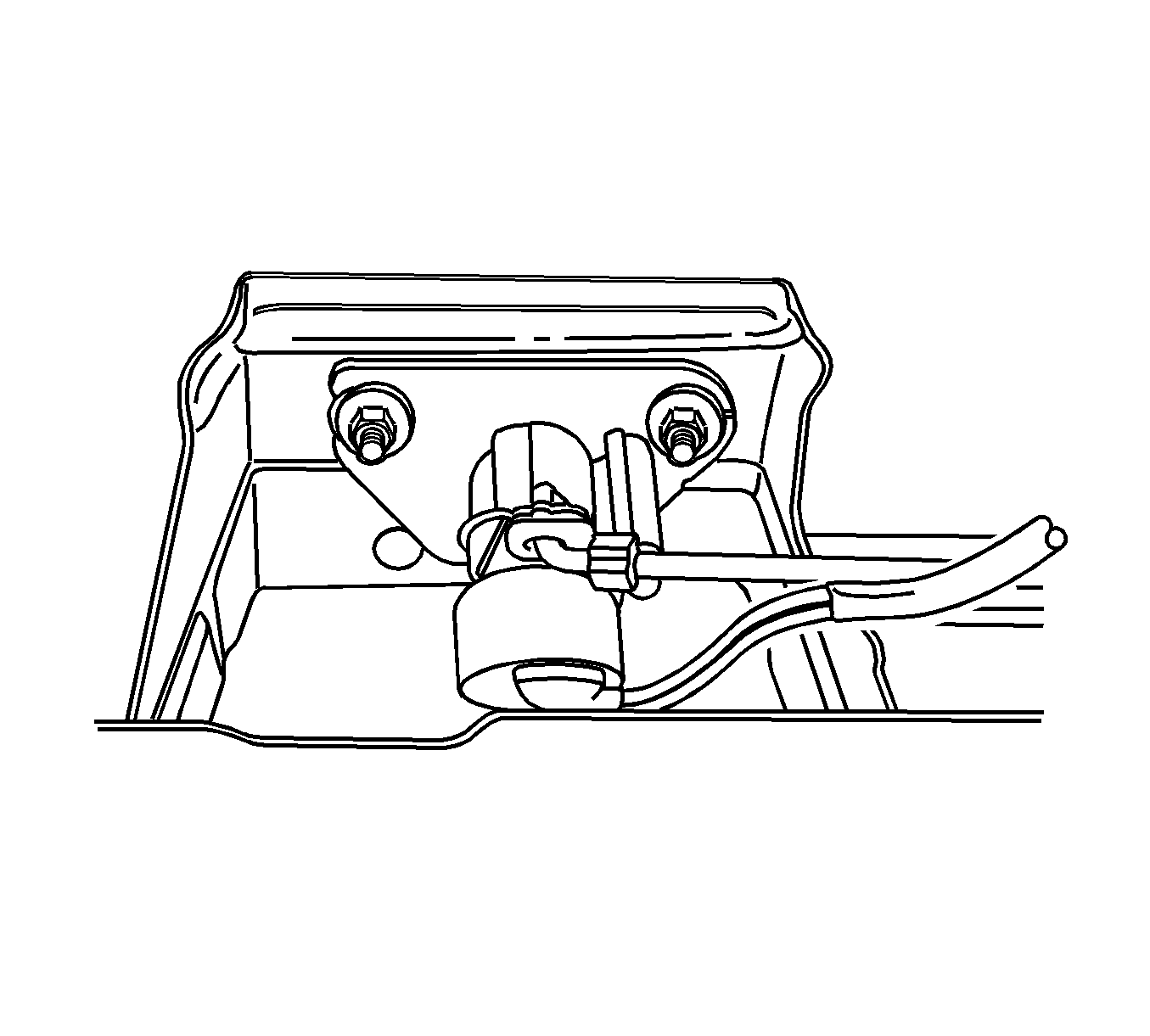

    Fig 1: View of Nuts and Lock Cylinder
    GM1252086Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the lock cylinder with the nuts.

    Tighten:  Tighten the luggage compartment lock cylinder nuts to 3 N.m (27 lb in).

  2. Connect the lock rod.
  3. Install the hatchback door lower garnish molding, if equipped. Refer toHatchback Door Lower Garnish Molding Replacement in Interior Trim.
